Technical characteristics
Vulcan Nano 3kW Heater with built-in thermostat
Autonomous, work without PCB.

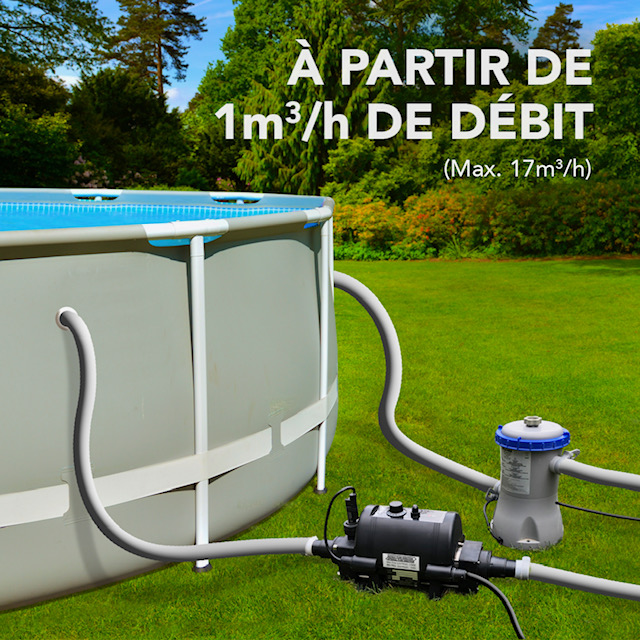

Essentially used for heating water of concrete spas or above ground pool
Advantages
Dimensions
All the spa that don’t require a PCB
Autonomous, work without PCB.
Replace the Elecro Evolution Plug'n play 3kW spa heater
You just have to plug this heater and it start automaticallyEssentially used for heating water of concrete spas or above ground pool
Advantages
- Fast and simple pluging : "Plug and play"
- 3kW power
- Analogic control thermoregulator (1°C graduation)
- Standart size pipe (32mm)
- 32mm, 38mm, 48mm and 50mm adaptators are provided with
- Power cable also provided
| Supply | 230 single-phased |
| Flow | minimum 1 m3/h |
| Control thermoregulator | from 0 to 40°C (1°C graduation) |
| Security circuit-breaker | 55°C (manual rearmament) |
| Flow detector | contact blade covered with a thin layer of gold with titanium shelf axle |
| Cabling | high temperature, silicon sheath, multi-stranded copper conductor |
| Gaskets | Special high temperature polymer formula |
| Water connections | BSP 1.5’’ Female plug, delivered with the 1.5’’ 50mm adaptor for the ABS pipes connection |
| Pressure when working | 4 bars maximum |
| Installation | Ground or wall fixation |
Dimensions
Compatible with
All the spa that don’t require a PCB
