Compatible with the Joyonway P15B66 control box
Power: 3 kW
Includes: split nuts and gaskets
Joyonway Part Number: H002-230A
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

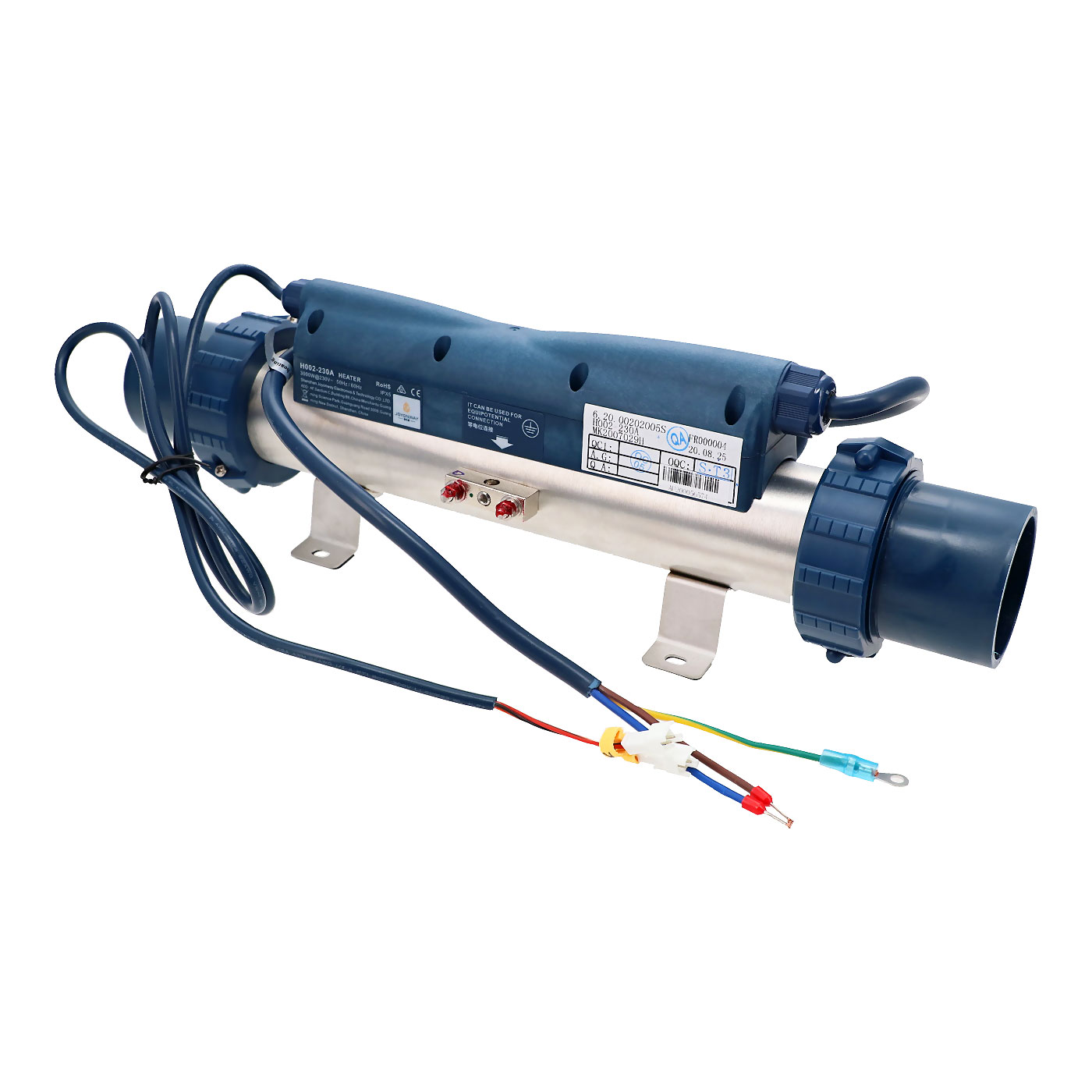

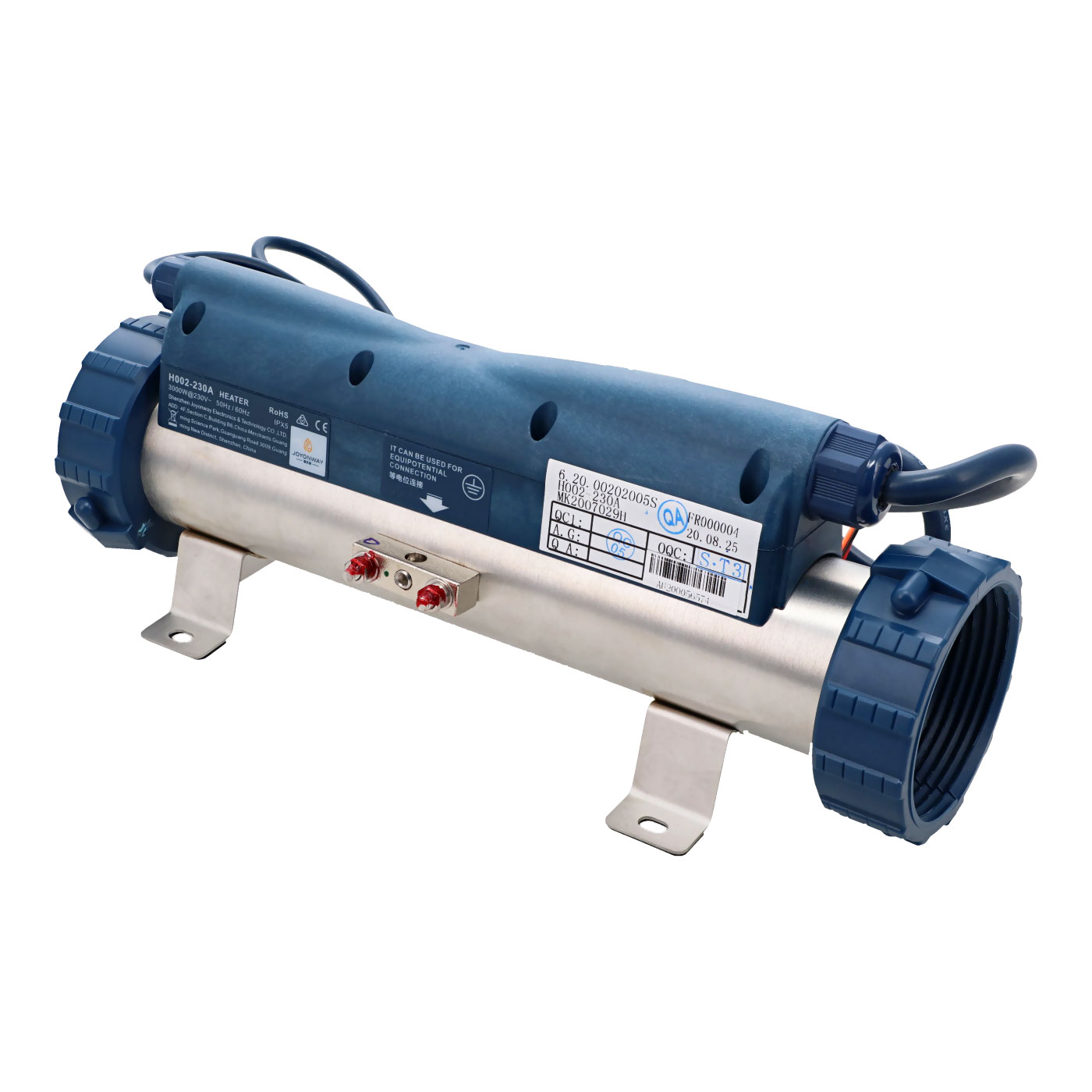

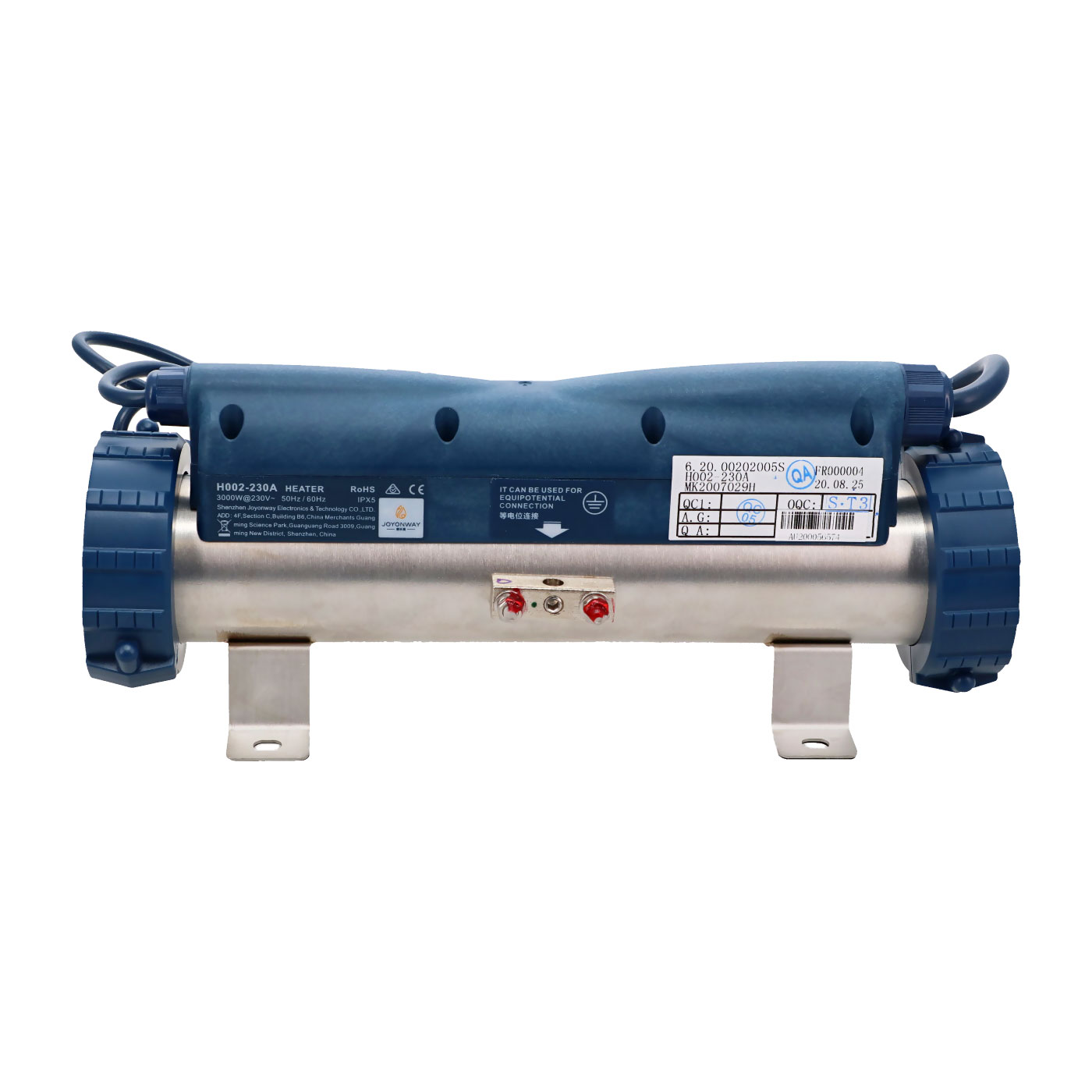

The Joyonway H002-230A mini heater heats spa water with a 3 kW output at 230 V AC. Its compact, one-piece design connects to 1.5" plumbing and is compatible with the Joyonway P15B66 control box.
| Brand | Joyonway |
| Type | Spa heater |
| Joyonway Part Number | H002 / H002-230A |
| Power | 3.0 kW |
| Power Supply | 230 V AC |
| Frequency | 50/60 Hz |
| Amperage | 13.04 A |
| Length Without Unions | 291 to 291.50 mm |
| Length With Unions | 374 mm |
| Width | 26 mm |
| Height | 103 mm |
| Mounting Hole Spacing - Width | 80 mm |
| Mounting Hole Spacing - Length | 160 mm |
| Connection | 1.5" - plumbing with 48 mm outside diameter |
| Compatibility | Joyonway P15B66 control box |
Joyonway is a manufacturer specializing in the design and production of spa control systems and electronic components. Its product range includes control boxes, control panels, and heaters. Boospa is Joyonway's official after-sales service platform in Europe.
This Joyonway H002-230A 3 kW mini heater is compatible with the Joyonway P15B66 control box. Before ordering, check the part number of your control box as well as the dimensions and connections of your current heater to make sure they match this model.
The heater is installed separately from the control box and connected to it by two connection cables. The plumbing connection is designed for 1.5" plumbing with a 48 mm outside diameter. A reducer can be used with 1" plumbing with a 33 mm outside diameter.
One Joyonway H002-230A 3 kW heater with split nuts and gaskets.
The Joyonway H002-230A 3 kW heater is compatible with the Joyonway P15B66 control box. Before replacing your heater, check the part number of the control box installed on your spa as well as the dimensions and connections of your existing heater.
The specified length without unions is between 291 and 291.50 mm and reaches 374 mm with the unions. It is 26 mm wide and 103 mm high, with specified mounting hole spacing of 80 mm across the width and 160 mm along the length.
The heater uses a 1.5" connection for plumbing with a 48 mm outside diameter. Available specifications indicate that a reducer can be added for 1" plumbing with a 33 mm outside diameter.
Yes, the split nuts and gaskets are included with the heater. The Joyonway H002 heater features a one-piece design.
