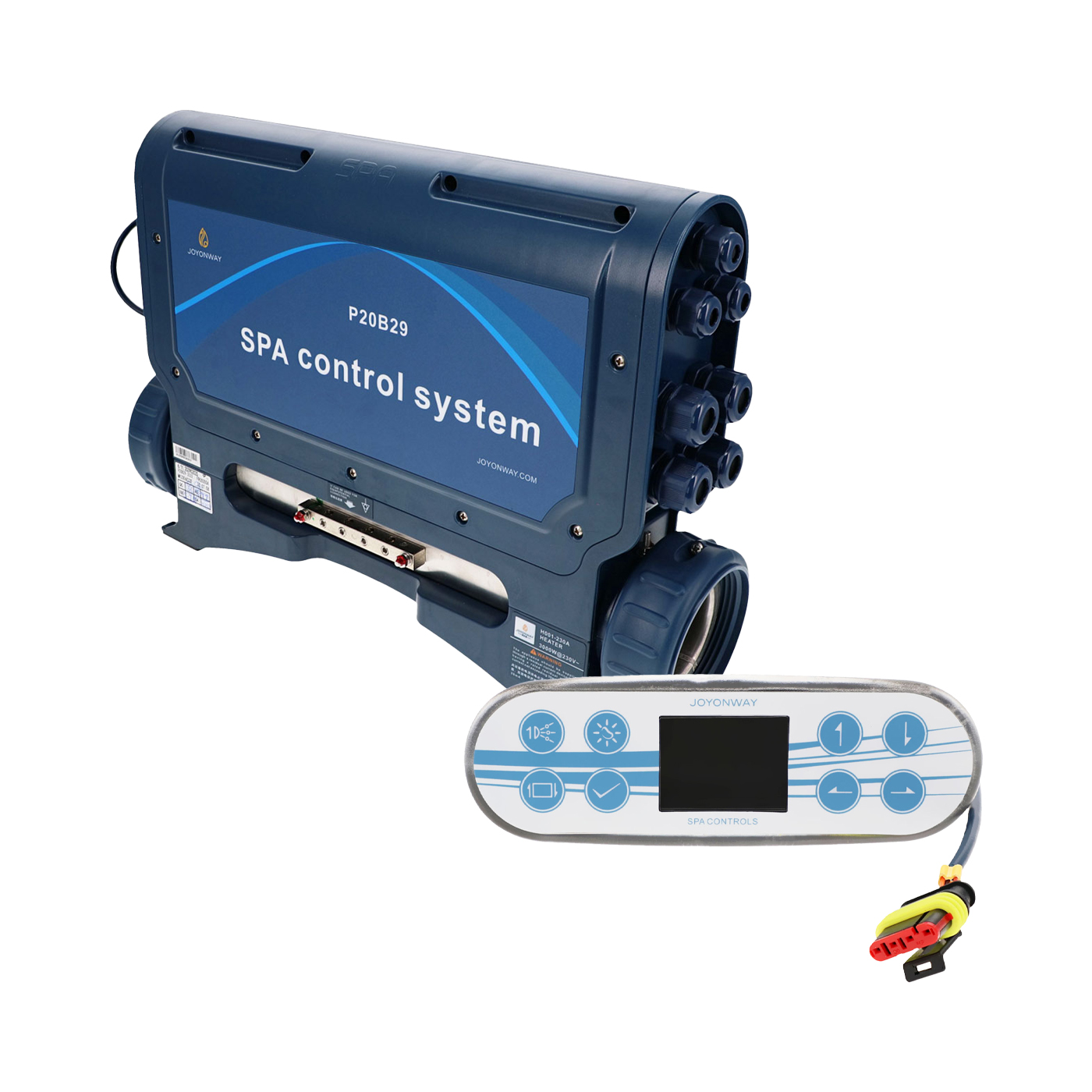

Complete Replacement System P20B29 + PB554 Keypad
JOYONWAY is the hottest new electronic parts manufacturer for spa makers. Experiencing rapid growth, the manufacturer offers reliable control systems with unmatched value for money. BOOSPA is the official Joyonway after-sales service platform in Europe.
This complete Joyonway replacement pack will allow you to fully replace an outdated spa control system.
This complete electronic kit for spas includes:
The P20B29 box can control:
- 4 massage pumps including 3 dual-speed pumps
- 1 blower
- 1 circulation pump
- 1 ozonator
- 1 lighting system
- and an auxiliary device

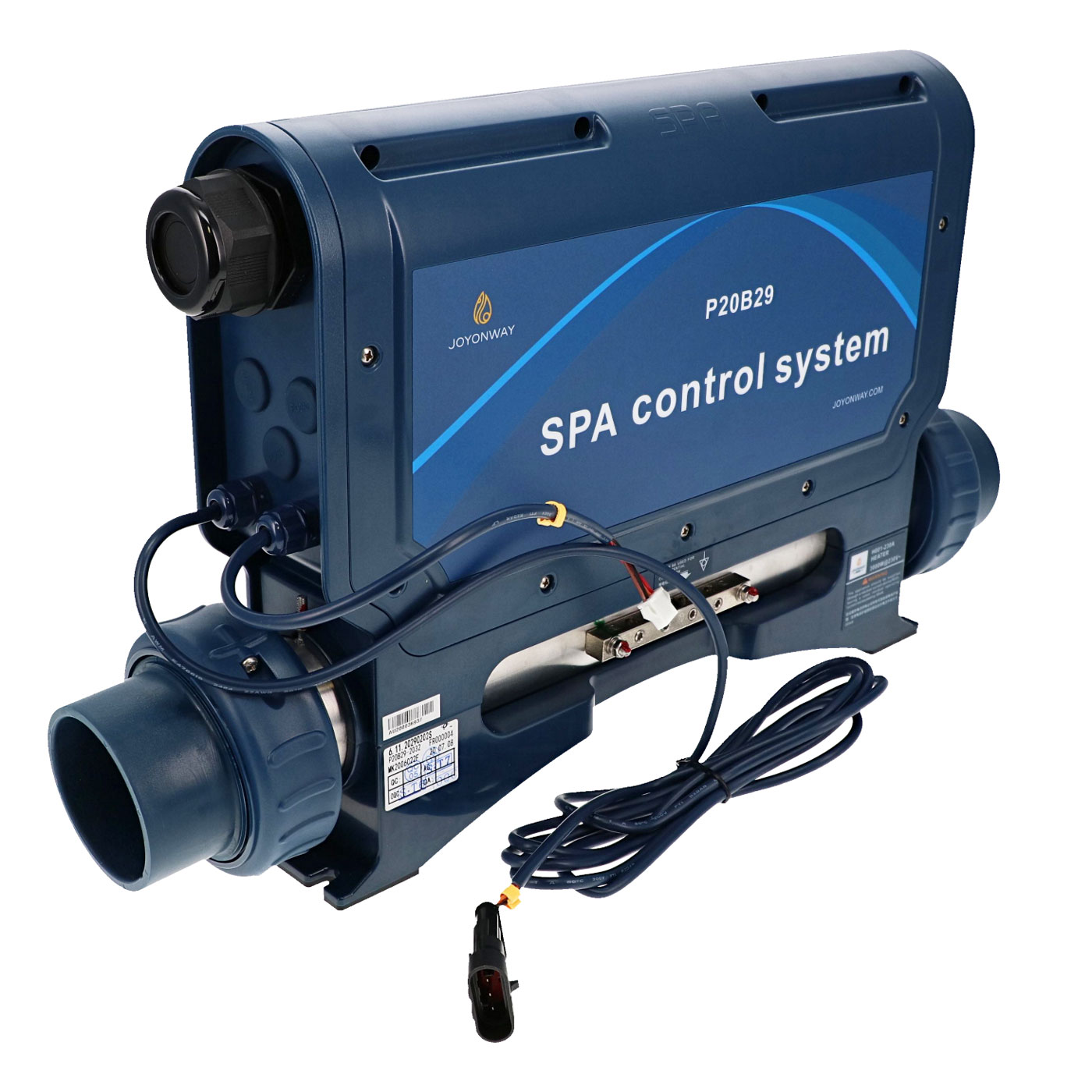

P20B29 box features:
- Power supply: 220V/50Hz
- Dual-speed Pump 1: 220V - 10A max
- Dual-speed Pump 2: 220V - 10A max
- Dual-speed Pump 3: 220V - 10A max
- Pump 4: 220V - 10A max
- Circulation Pump: 220V - 2.5A max
- Blower: 220V - 10A max
- Ozonator: 220V - 1A max
- Lighting: DC12V - 2A max
- Auxiliary: 220V - 1A max
- Easy jaw connection terminals
- 2 fittings for 2" piping (60mm external) included
- Also compatible with control keypads: PB553 and PB555 (not included)
- IPX5 box

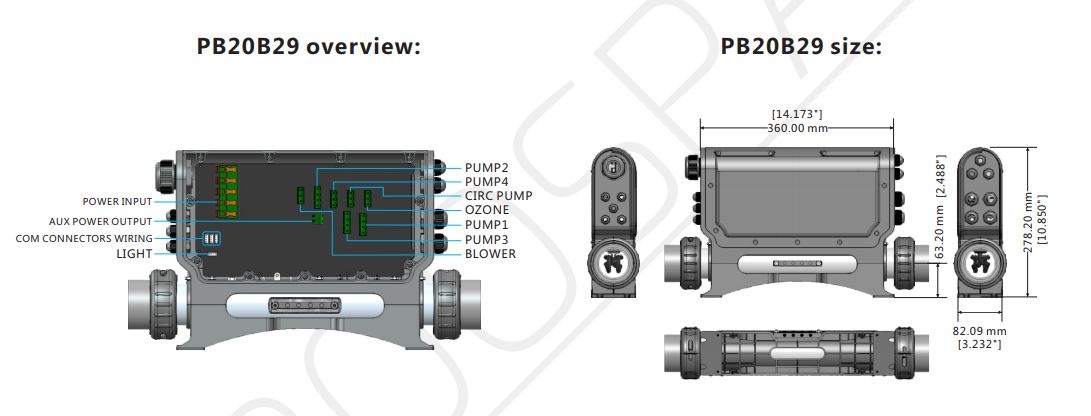

Dimensions of the box and keypad:
