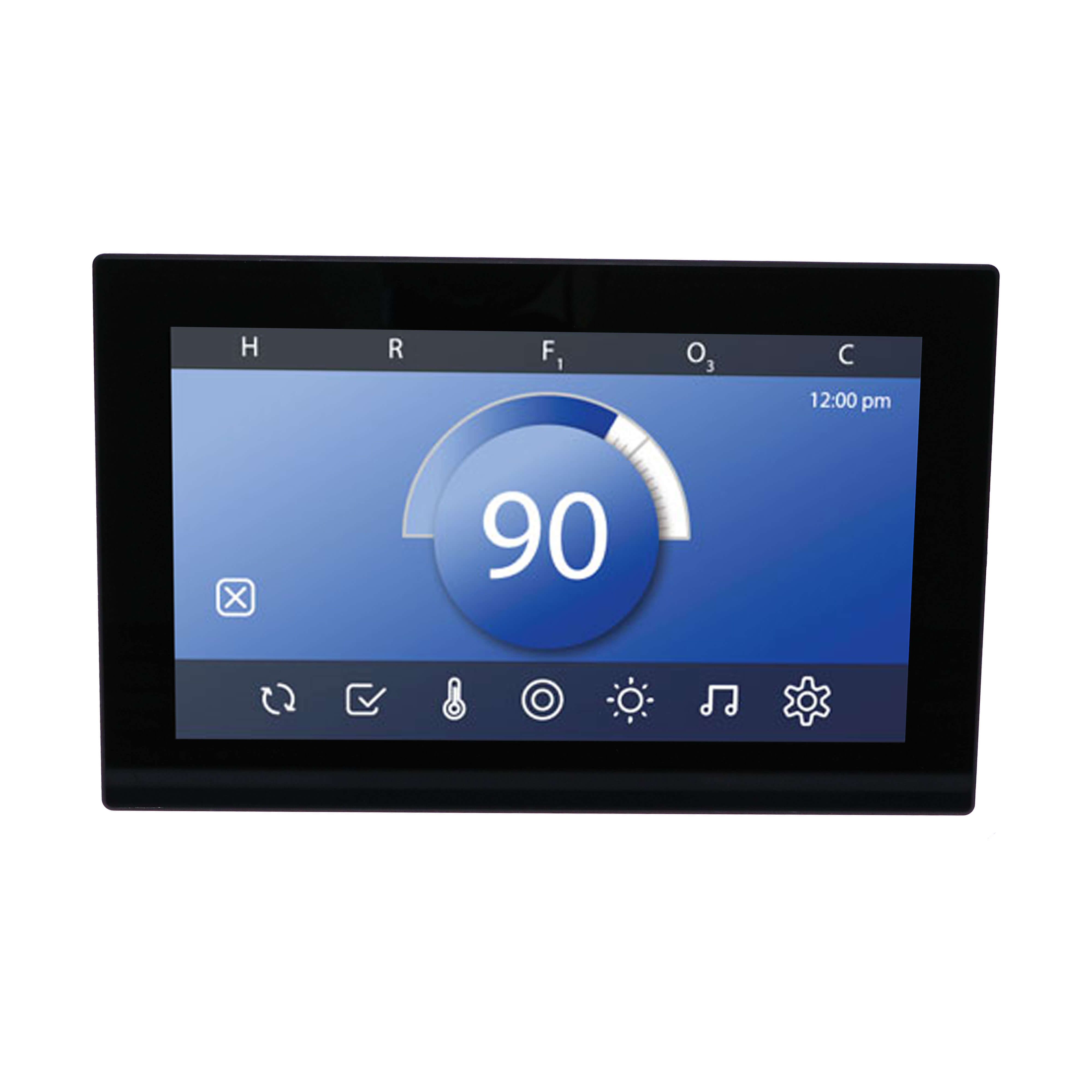

7-inch SpaTouch™ 3 Plus Touchpad for Balboa BP Systems
The SpaTouch™ 3 Plus is the 7-inch version of SpaTouch™ 3, which is 5 inches smaller.
These 3rd generation control panels are the evolution of SpaTouch™ 2, which itself evolved from the original SpaTouch.
These fully touch control models are designed by the leading spa electronic parts manufacturer: BALBOA.
BALBOA Reference: 57257
It features a more ergonomic and simpler interface than its predecessors, along with a wider screen.
Specifications:
- Dynamic screen display, 2x brighter than SpaTouch2™
- Waterproof against environmental conditions such as water, splashes, or contamination
- New menu, larger, brighter, and bolder
- The touch screen incorporates the latest touch technology with capacitive keys
- Provides stunning clarity and true premium color display

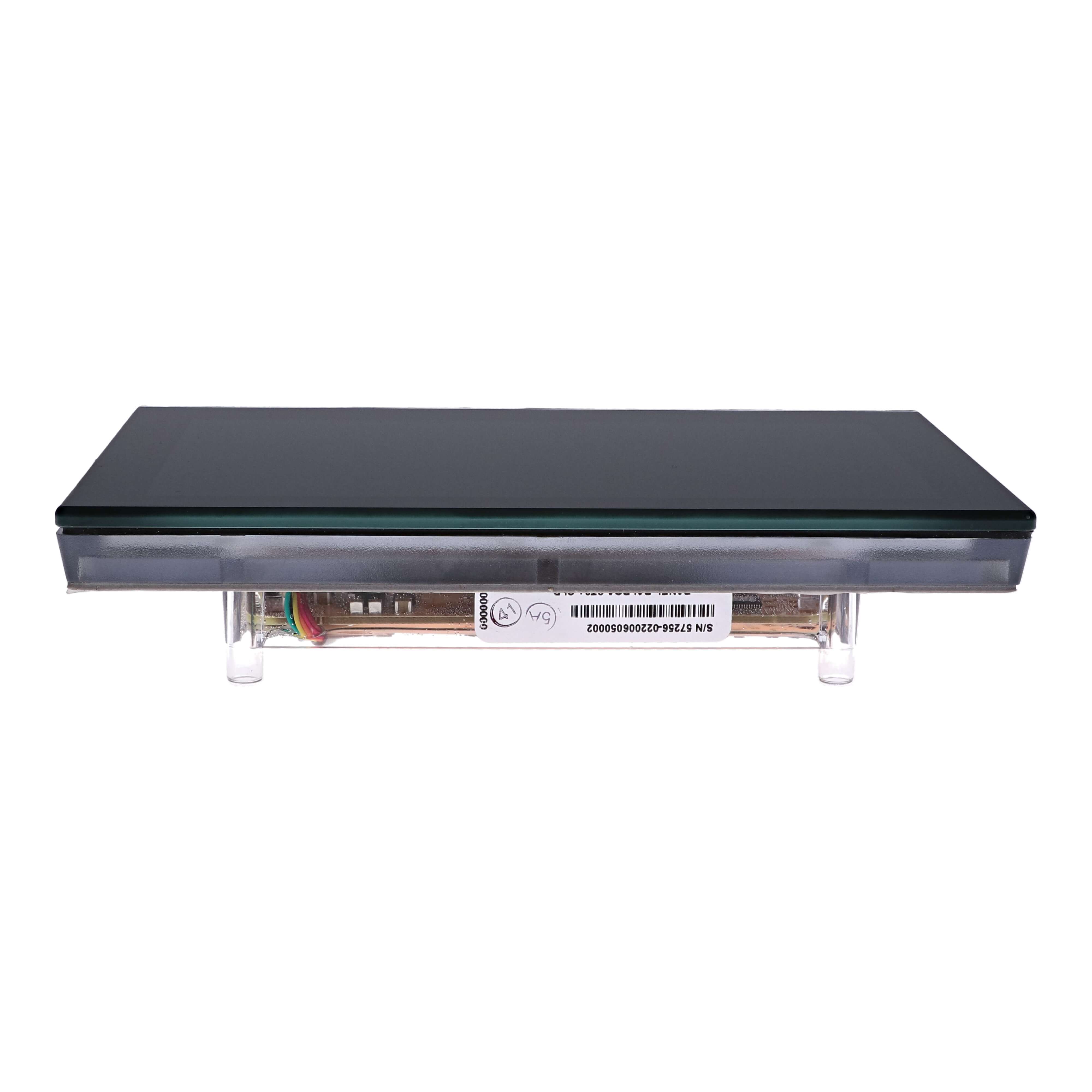

Dimensions and Interface
Balboa 3rd Generation Touchpad Interface:
Dimensions:
- Screen: 7" (17.78cm)
- Height: 115 mm
- Width: 185 mm
- Depth: 40mm

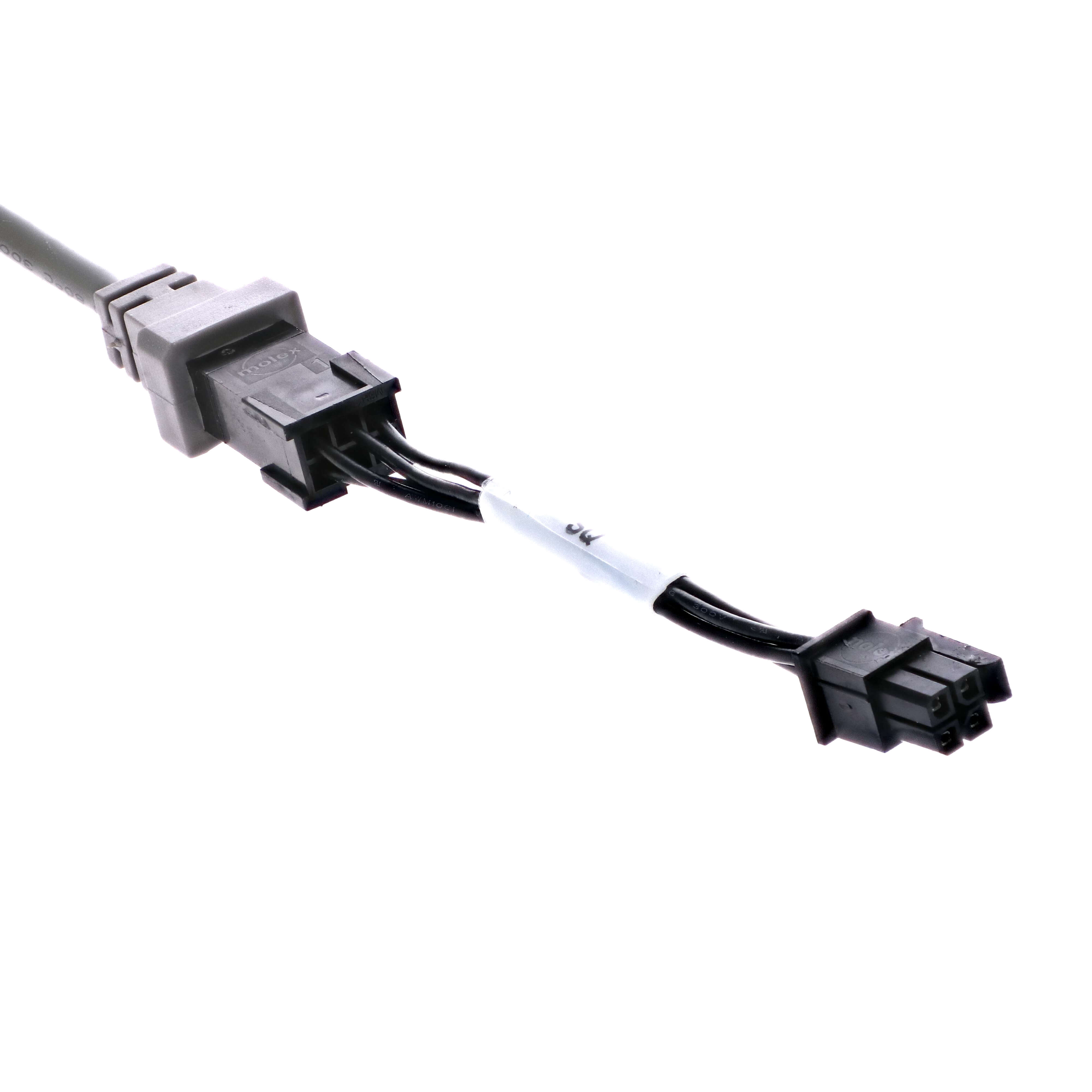

- Cable Length: 2m
Installation
There are several precautions to take when installing your SpaTouch 3 Plus keypad:
Compatibility
SpaTouch™ 3 Plus keypads are compatible with all BALBOA BP systems that support TP800 and TP900 (B) models. They can potentially replace TP400 and TP600 keypads, but in some cases, this may result in display defects.
