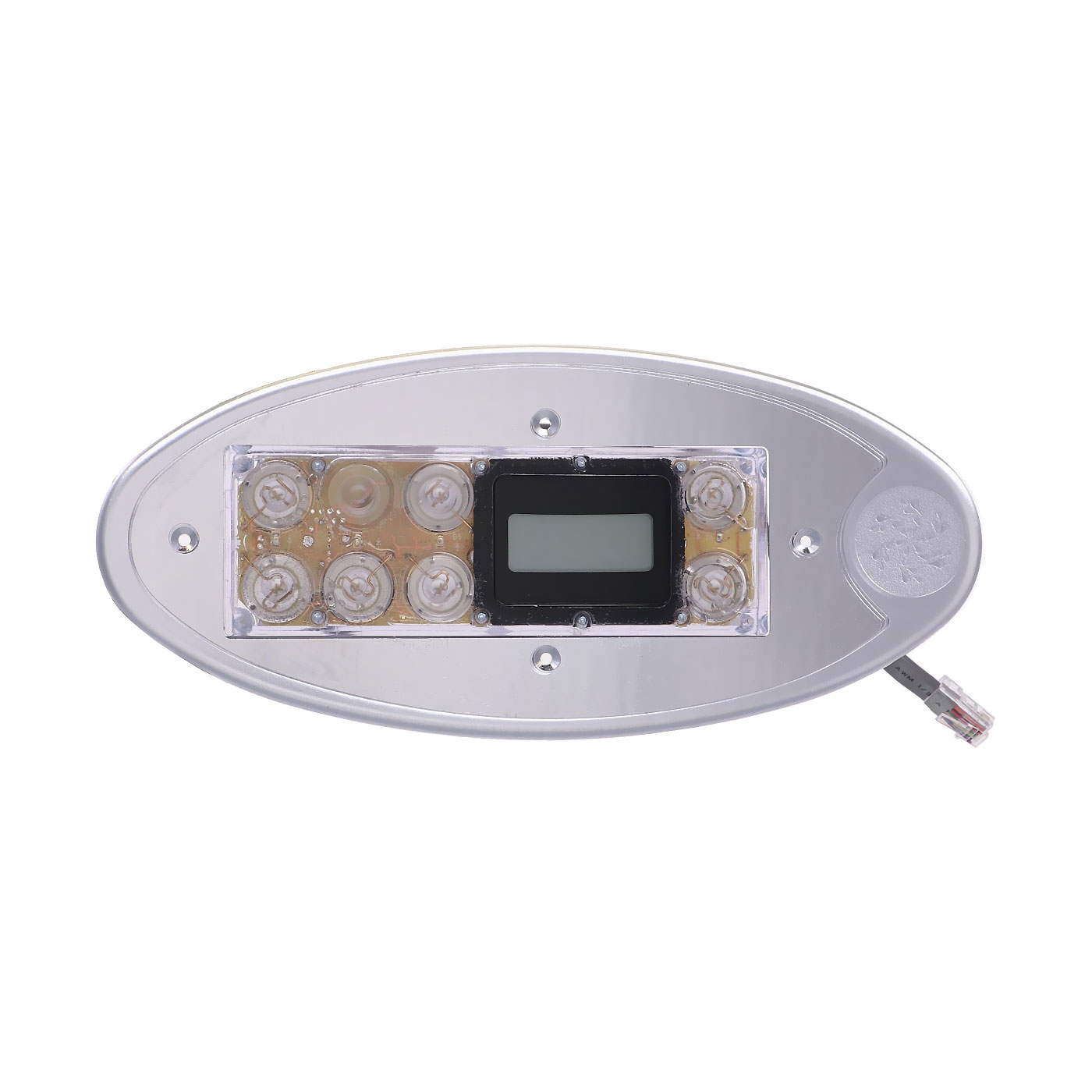

VL702S Control Panel
The VL702S keypad is compatible with all BALBOA spa control systems with a model name ending in "SZ". Example: GS510SZ
The keypad is from the Standard series, with the following characteristics:
- Includes a "Mod/Prog" button.
- Does not have a Time button
BALBOA reference:
- Keypad only: 54539
- Keypad with Overlay: 54652
- Overlay: 11790
It allows the following functions:
Increase and decrease temperature
LED lighting
Pump 1
Pump 2
Blower
Programming
Dimensions:
- Overall: 263 mm x 117 mm
- Recessed: 160 mm x 55 mm

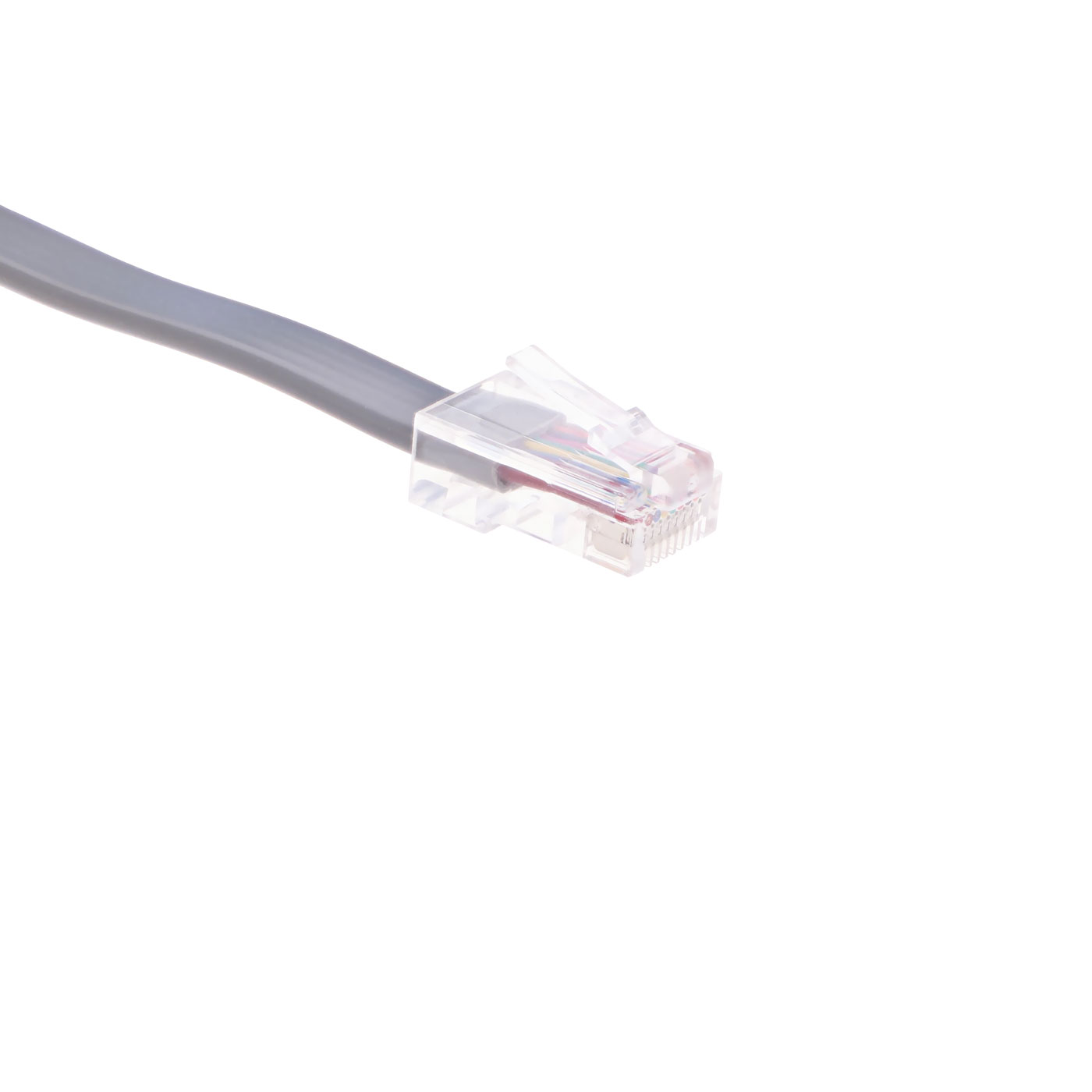

Connection: The VL series has RJ45 type connection sockets.
Compatible with the following Balboa control boxes:
GS series BALBOA control boxes ending in SZ
