BALBOA VL700S Control Panel
Equipped with an LCD screen
- Keyboard dimensions: 249 x 79mm
- Embedded area dimensions: 213mm x 57mm
- Cable length: 213cm
This model (ref. Balboa: 53811) features the following 7 buttons:
- Mode: Mode change
- Warm: Increase temperature
- Cool: Decrease temperature
- Light: LED lighting
- Blower: Blower control
- Jets1: Massage pump control
- Jets2: Massage pump control
Here are other available references for the VL240 keyboard:| Keyboard references with sticker | Sticker references |
| 53811 - sold here | 11688 (Warm, Mode, Cool, Light, Blower, Jets1, Jets2) |
| 54716 | 11756 (Warm, Mode, Cool, Light, Jets1, Jets2) |
| - | 11892 (Warm, Mode, Cool, Aux, Light, Jets1, Jets2) |
You can apply the stickers mentioned in the table above on the keyboard alone.
The keyboard is from the
Standard series, the characteristics of this series are as follows:
- Presence of a "Mode" button
- Absence of a "Time" button.

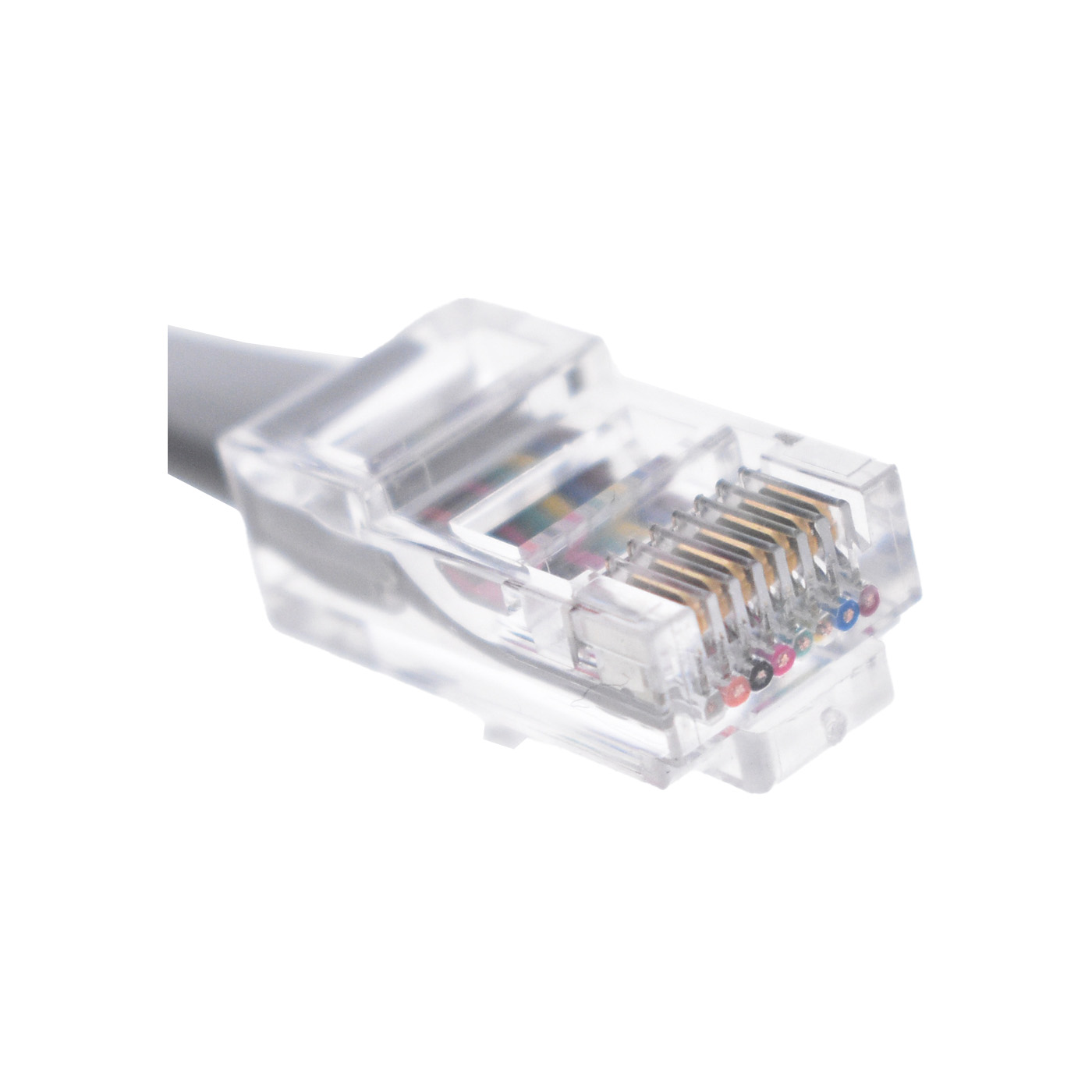

The VL series has RJ45 type connection sockets.
Compatible with
BALBOA GS series control boxes ending in "SZ" (Example:
GS510SZ,
GS520SZ)
