Power: 0.75 HP
Power Supply: Three-Phase - 380 V - 50 Hz
Current: 3.2 A
Manufacturer Part Number: SMP75T
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
The LX SMP75T three-phase pool pump is a 0.75 HP model equipped with a 230/400 V, 50 Hz three-phase motor. It has a specified maximum flow rate of 280 L/min (16.8 m³/h) and a maximum head of 11 m.
| Brand | LX |
| Manufacturer Part Number | SMP75T |
| Type | Three-Phase Pool Pump |
| Power | 0.75 HP / P1: 0.55 kW (550 W) |
| Voltage | 230 V Delta / 400 V Wye |
| Frequency | 50 Hz |
| Current | 1.6 A Delta / 0.9 A Wye |
| Motor Speed | 2,900 RPM |
| Flow Rate | 80 to 220 L/min |
| Maximum Flow Rate | 280 L/min (16.8 m³/h) |
| Head | 10 to 5 m |
| Maximum Head | 11 m |
| Protection Rating | IP55 |
| Insulation Class | F (155 °C) |
| Duty Cycle | S1 (Continuous Duty) |
| Maximum Water Temperature | 50 °C |
| Ambient Temperature | 40 °C |
Before ordering the LX SMP75T pump, check the part number of your existing pump and the electrical specifications of your installation. The SMP75T requires a three-phase power supply of 230 V in Delta configuration or 400 V in Star (Wye) configuration.
The pump must be properly grounded in accordance with applicable electrical codes. The protective cover must be in place before starting the pump. Never run the pump dry.

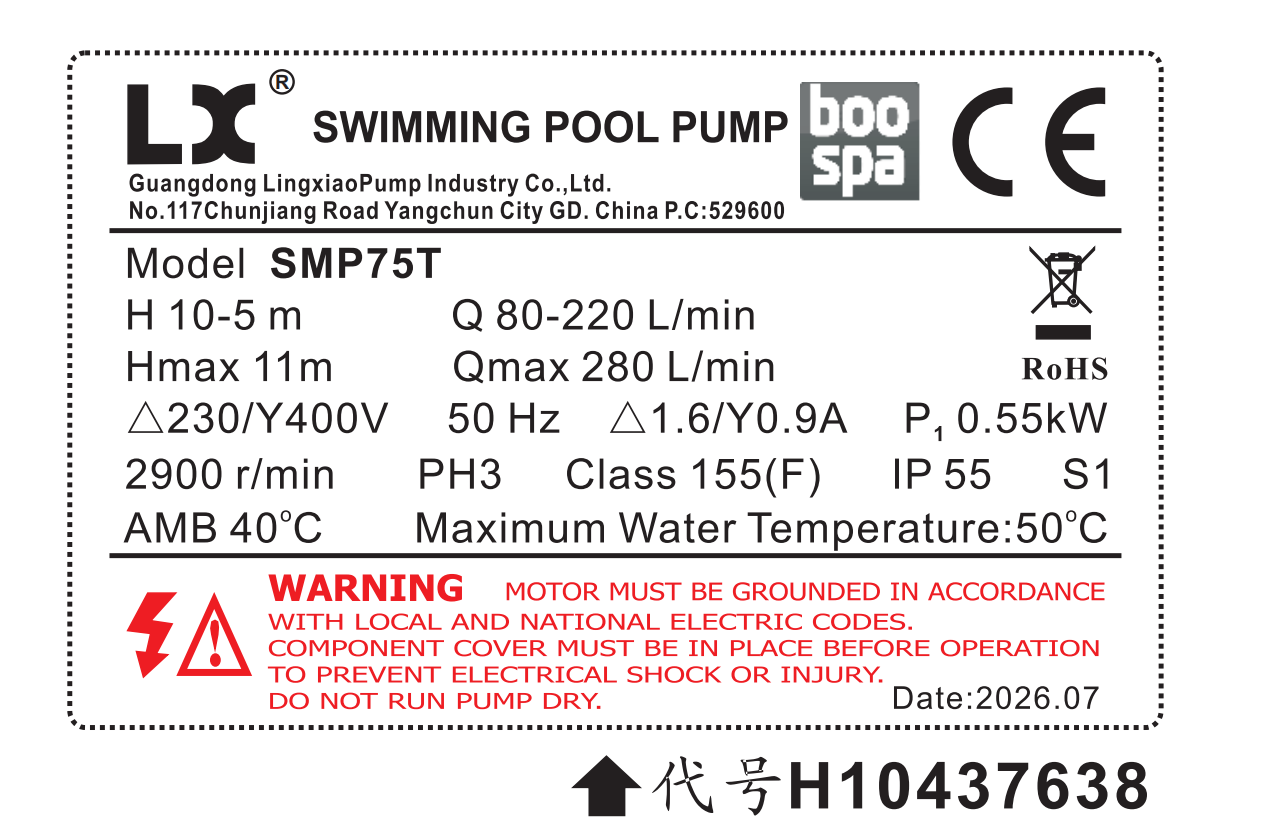

The LX SMP75T pump is commercially rated at 0.75 HP. Its nameplate indicates a P1 power rating of 0.55 kW.
The pump is equipped with a three-phase motor operating at 50 Hz. It requires a 230 V three-phase power supply in Delta configuration or a 400 V three-phase power supply in Star (Wye) configuration, with respective current ratings of 1.6 A and 0.9 A.
The maximum flow rate is 280 L/min (16.8 m³/h). The pump also offers a flow rate range of 80 to 220 L/min, corresponding to head values ranging from 10 to 5 m.
The maximum water temperature is 50°C, and the maximum ambient temperature is 40°C.
