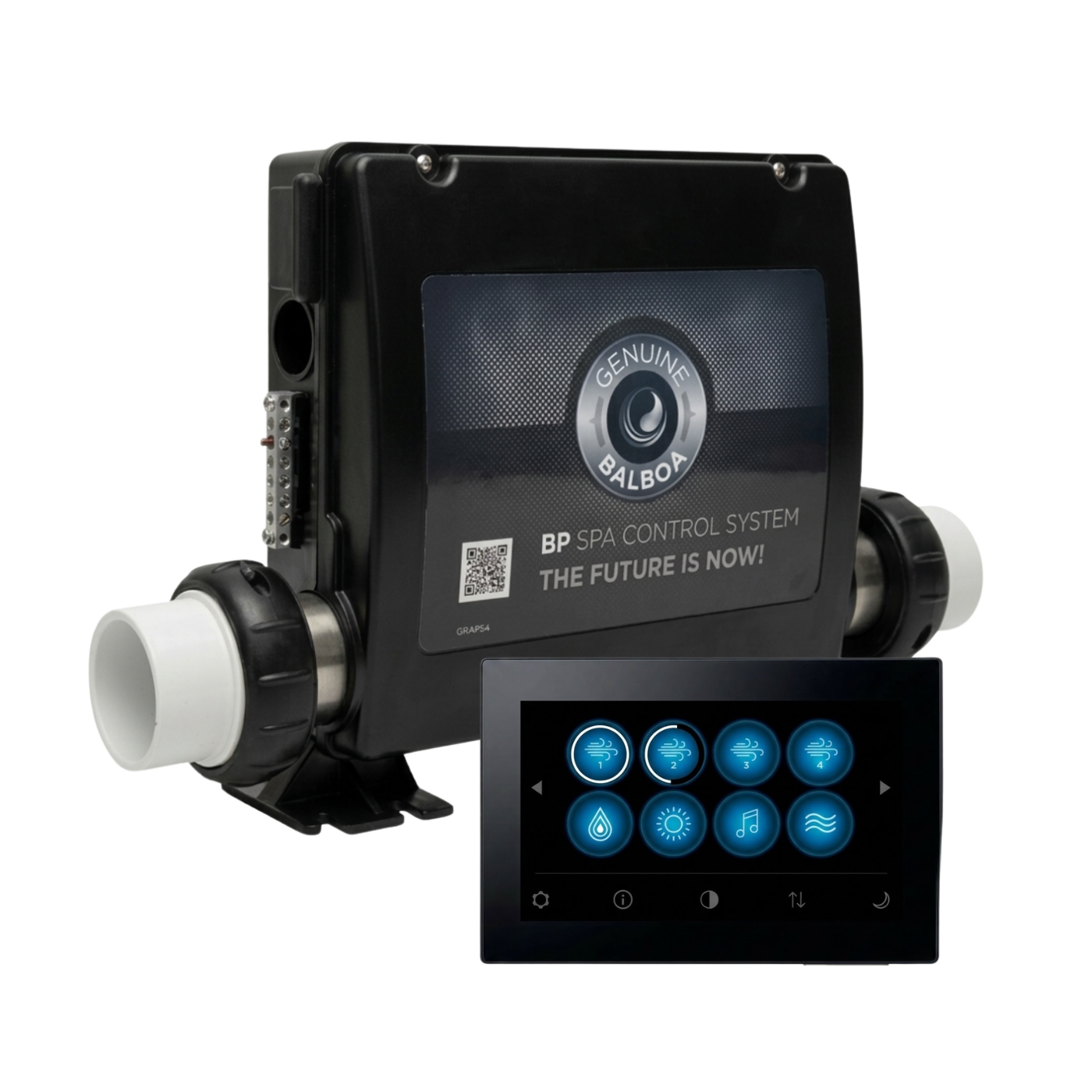

Complete Balboa BP10 Spa Control System with spaTouch 4+ Touchscreen Panel
This kit includes a Balboa BP10 control box with a 3 kW heater, a spaTouch 4+ touchscreen control panel with a 7-inch display, and several connection accessories.
It also includes a lighting assembly with a bulb and two cables designed for single-speed and dual-speed pumps.
| Brand | Balboa |
| Product Type | Complete spa replacement control system |
| Control Box | BP10 |
| Heater | 3 kW |
| Control Box Power Supply | 230 V - 50 Hz |
| Control Box Plumbing Connections | 2 inches |
| Control Panel | spaTouch 4+ |
| Control Panel Display | 7 inches |
| Pumps Supported by the BP10 | Circulation pump, pumps 1 and 2 (single-speed or dual-speed), pumps 3 and 4 (single-speed) |

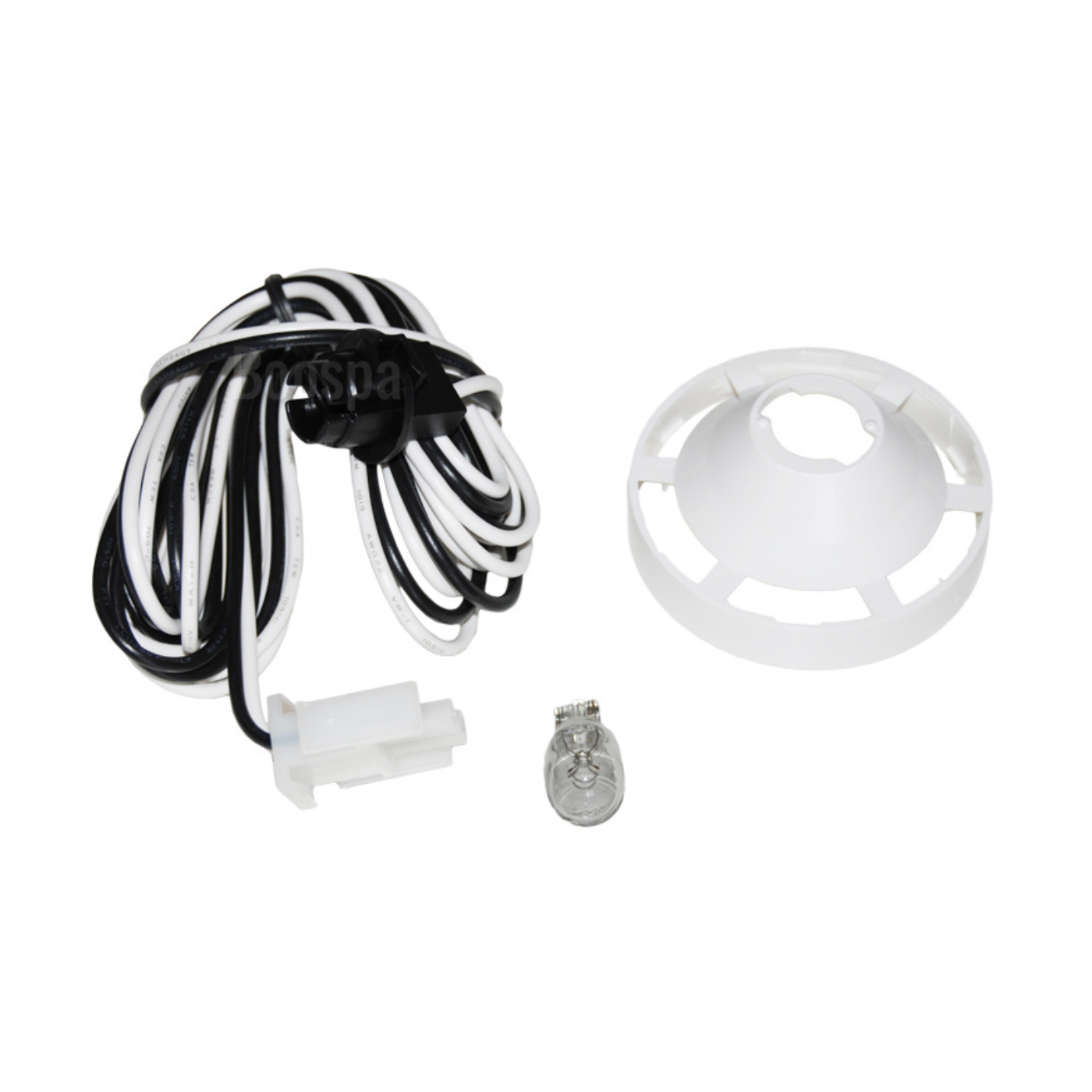

| Lighting Assembly | Cable, socket, holder, and bulb |
Compatibility and Checks Before Buying
The BP10 control box supports several pump configurations:
- Circulation pump.
- Pumps 1 and 2: single-speed or dual-speed.
- Pumps 3 and 4: single-speed.
The BP10 control box is also listed as a replacement option for Balboa BP21P4BC and BP21MS3B models.
These specifications apply to the control box itself and do not automatically guarantee that the complete kit will be compatible with your spa.
Before purchasing, check your existing system's model number, electrical specifications, plumbing connections, and pump configuration.
Dimensions and Installation

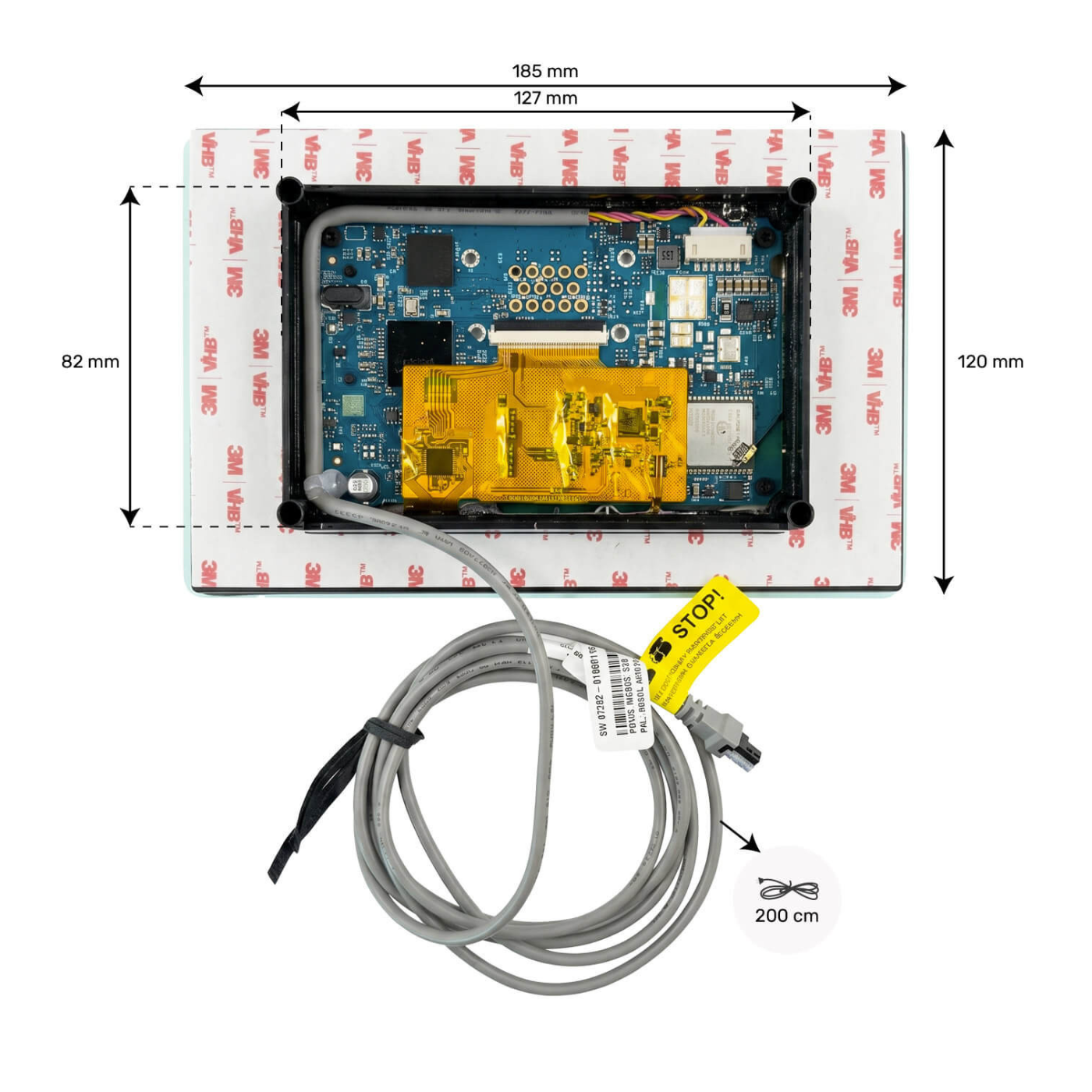

spaTouch 4+ Control Panel Dimensions:
- Display: 7 inches.
- Length: 185 mm.
- Height: 40 mm.
- Cutout length: 122 mm.
- Cutout height: 82 mm.
- Spa shell cutout dimensions: 127 x 82 mm.

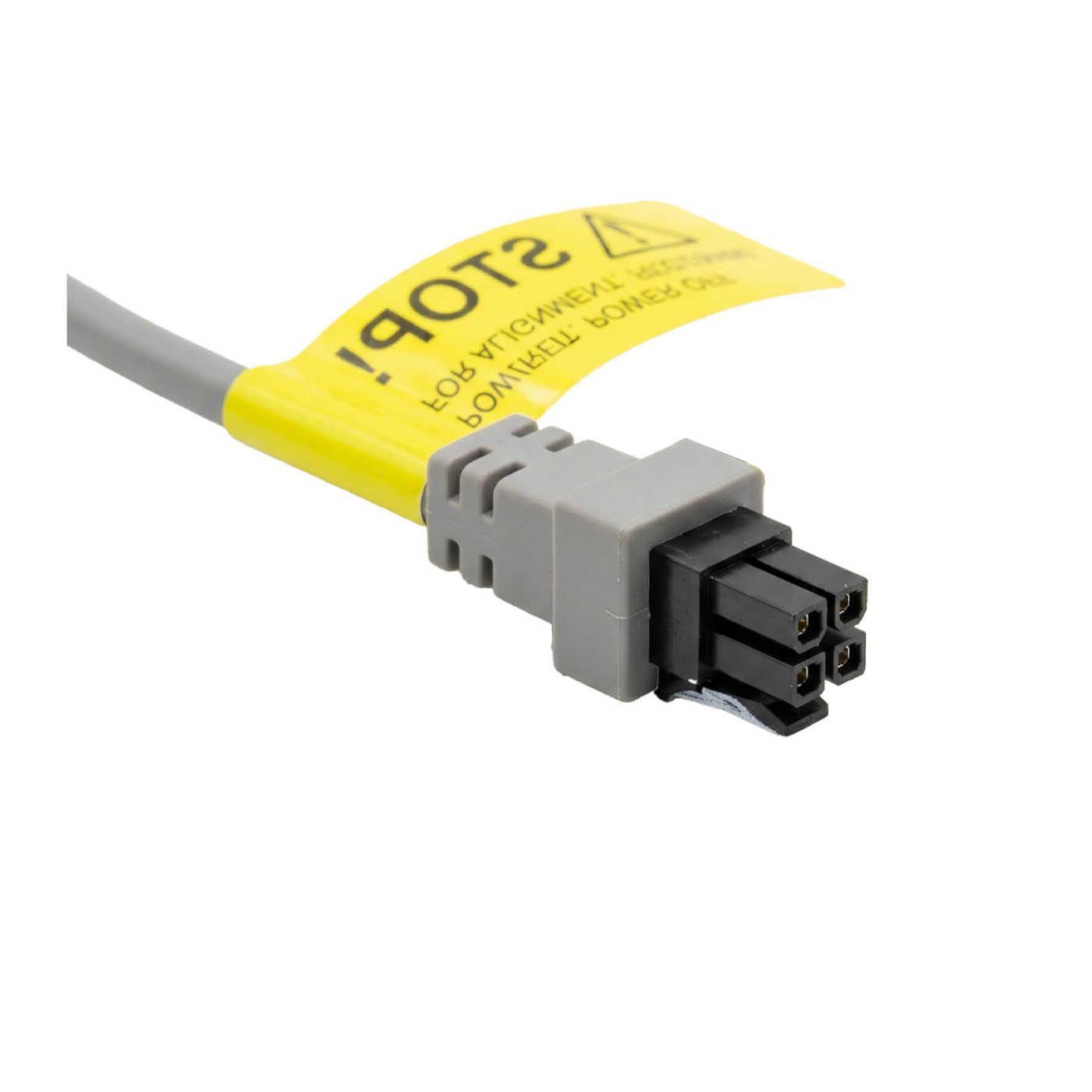

- Cable length: 2 m.

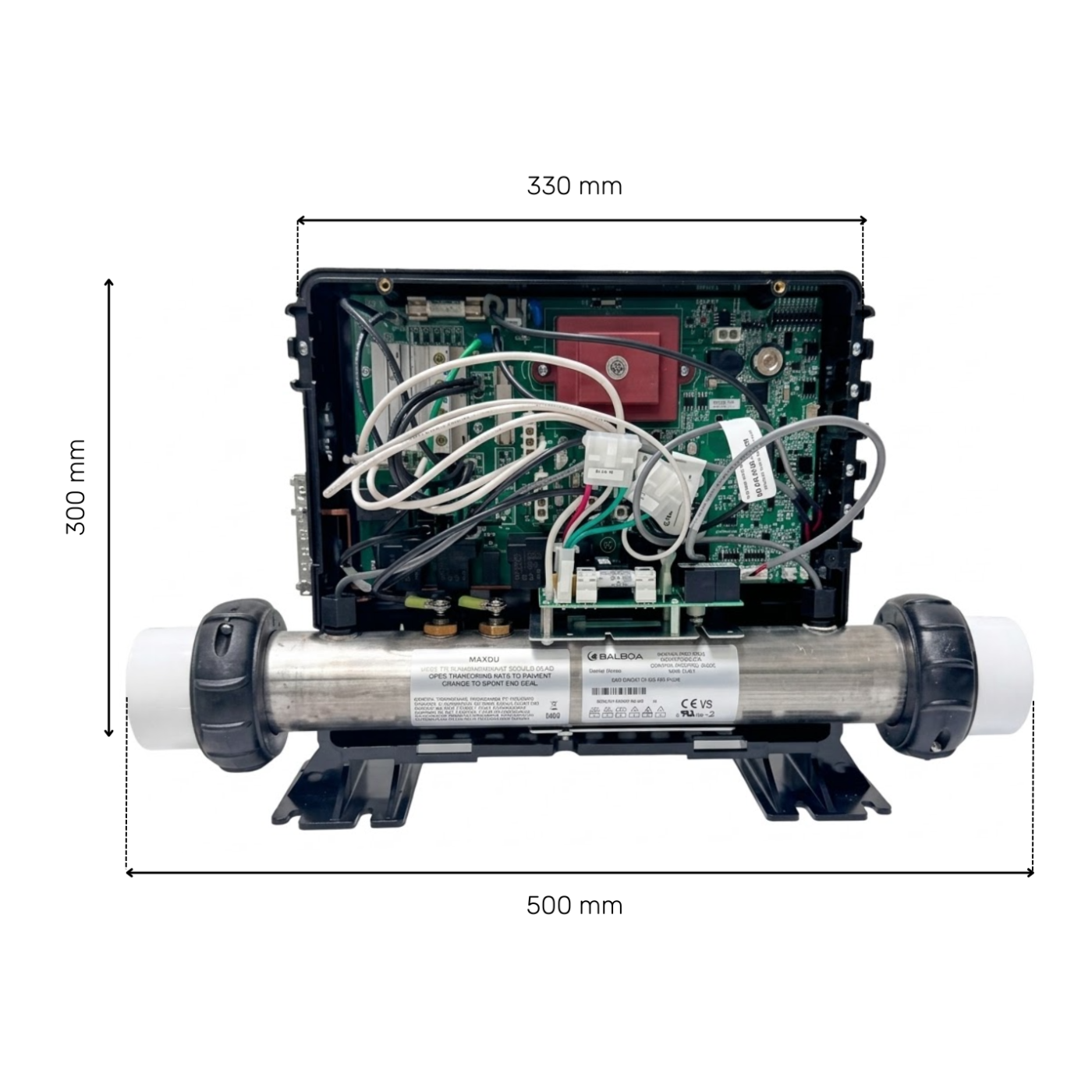

BP10 Control Box and Heater Dimensions:
- Control box height: 300 mm.
- Control box depth: 120 mm.
- Overall length with heater: 500 mm
- Heater width without unions: 330 mm.
- Heater width with unions: 430 mm.
Pump Cable Lengths:
- Single-speed pump cable: 1.6 m.
- Dual-speed pump cable: 1.6 m.
Before replacing your existing system, check the available space for the control box, the control panel cutout dimensions, and the cable lengths required for your installation.
What's Included in the Kit
Frequently Asked Questions
Are pump cables included in the kit?

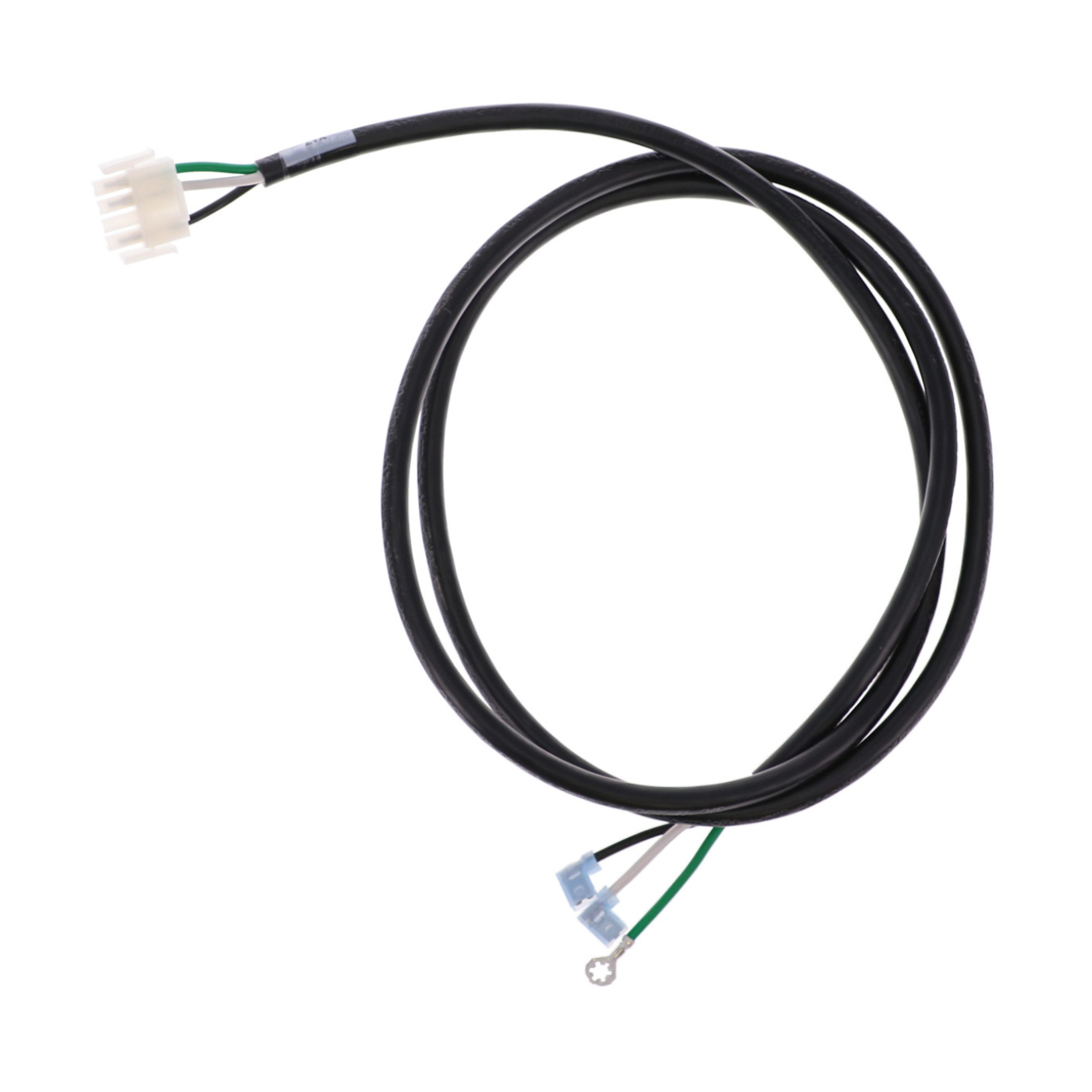

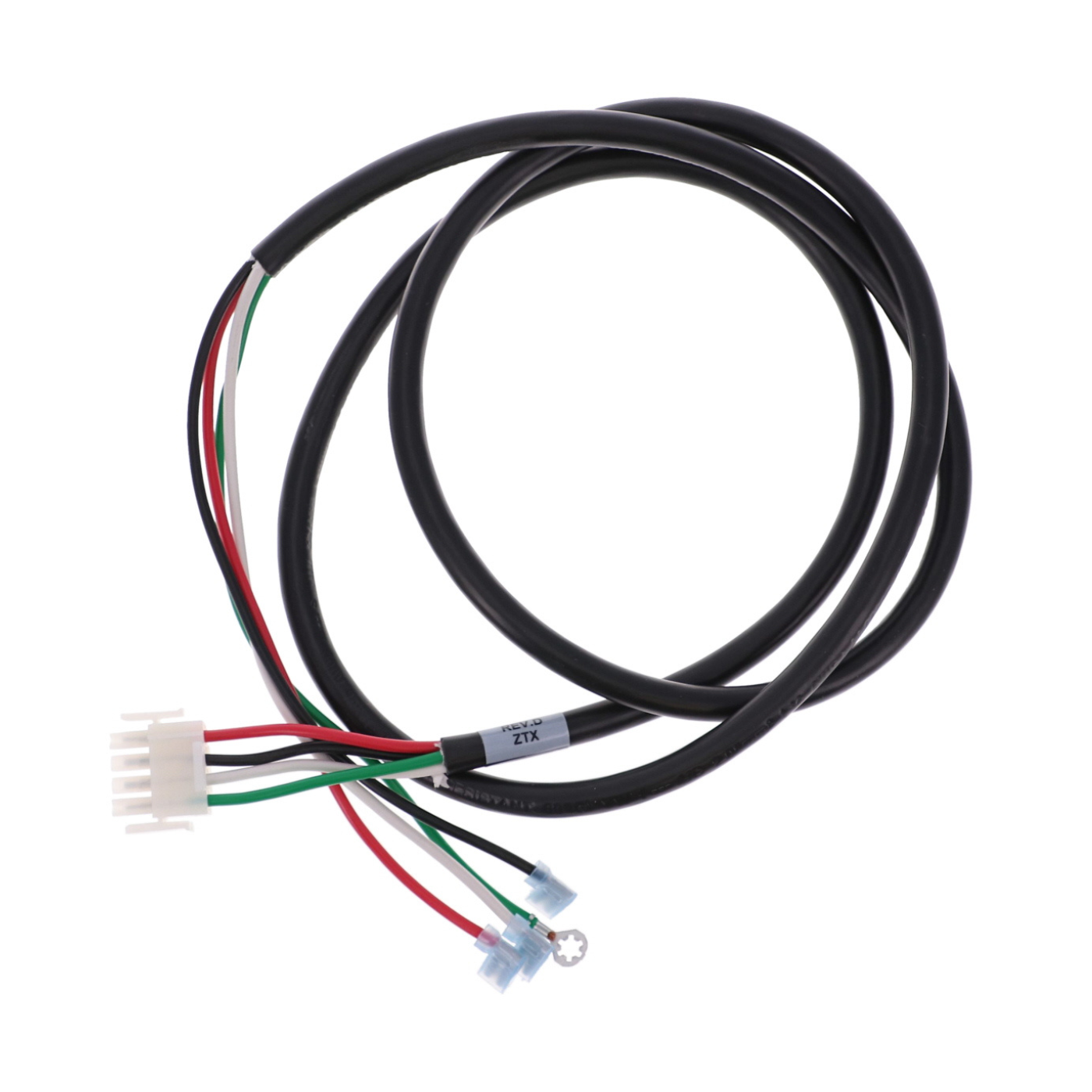

Yes, the kit includes one 1.6 m AMP cable for a single-speed pump and one 1.6 m AMP cable for a dual-speed pump. A lighting assembly is also included.
Does the BP10 control box come with a heater?
Yes, the kit includes a BP10 control box equipped with a 3 kW heater. The heater measures 330 mm without unions and 430 mm with unions.
Does the kit include everything needed for the lighting and pumps?
Yes, it includes a complete lighting assembly (cable, socket, holder, and bulb), along with two 1.6 m AMP cables for single-speed and dual-speed pumps.
