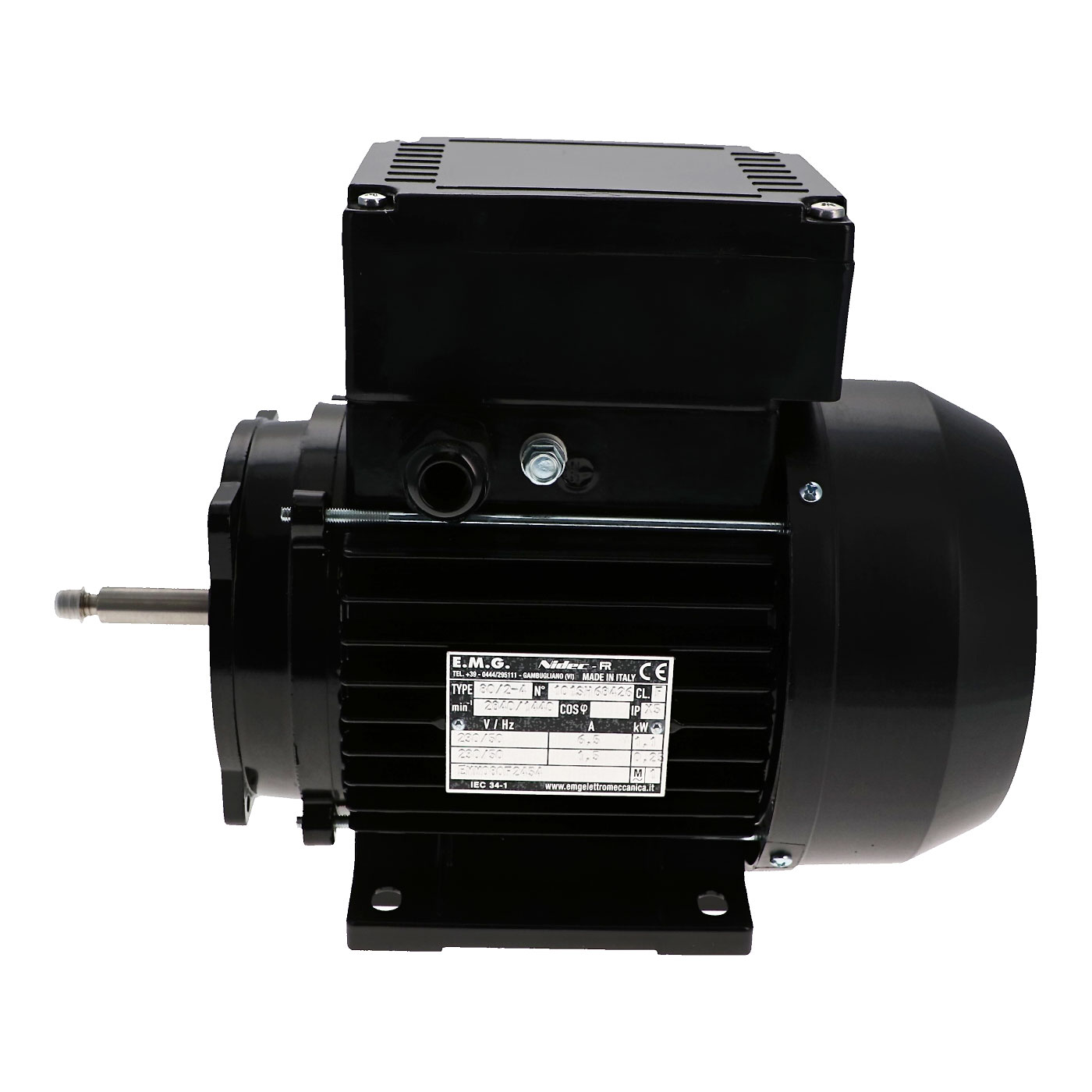

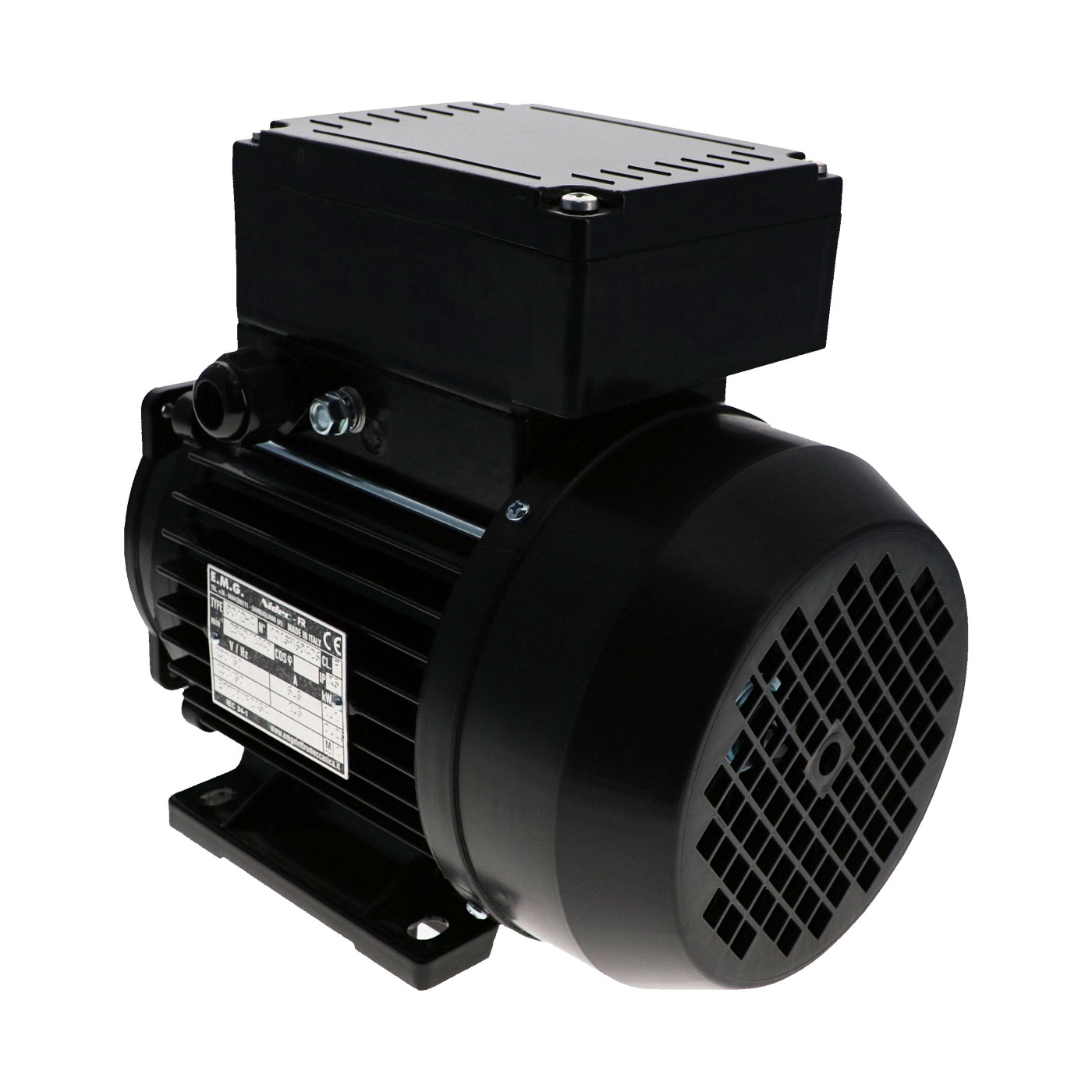

Spa-Flo 1.5HP Two-speed Waterway pump
This Waterway pump is available in 48 frames. This pump benefits from an Italian EMG electric motor, a guarantee of silence and reliability.
The EMG models have an electrical box on the top allowing better accessibility for its electrical connection.
Warning : this pump is sold without its wet end.

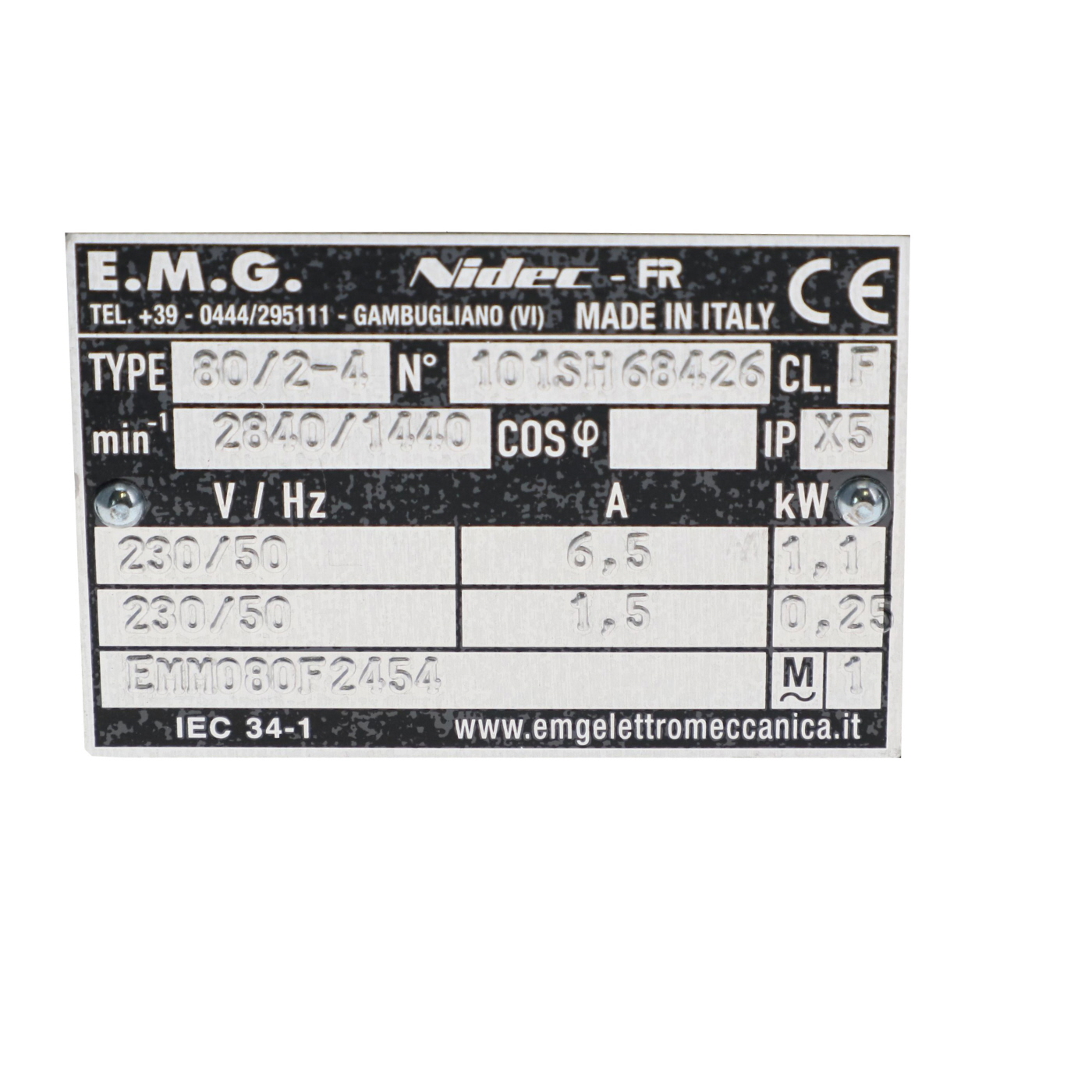

Waterway reference : MEC80 Performance | |
Speed | kW | Volt | AMP | RPM |
High speed | 1.1 | 220-240 | 7.6 / 6.8 | 2780/2820 |
Low speed | 0.25 | 220 - 240 | 2.1 / 1.2 | 1390/1440 |
Technical drawing Technical specificity of the Spa-Flo - WATERWAY pump
Pipe connections
Delivered without outlet fittings. You can also reuse your old pipe fittings if they are still functional. If your piping differs, access our range
Fittings and Union in order to find the fitting corresponding to your piping
Electrical connection
The pump is delivered without connection cable. You can keep your old cable in order to connect this new pump. If your outlet is no longer usable you can opt for a new outlet in our section
Cables and Plugs for Spa Here are the most used plugs in the spa world :
|
|
AMP socket | J&J socket (the position PINs vary by device) |
