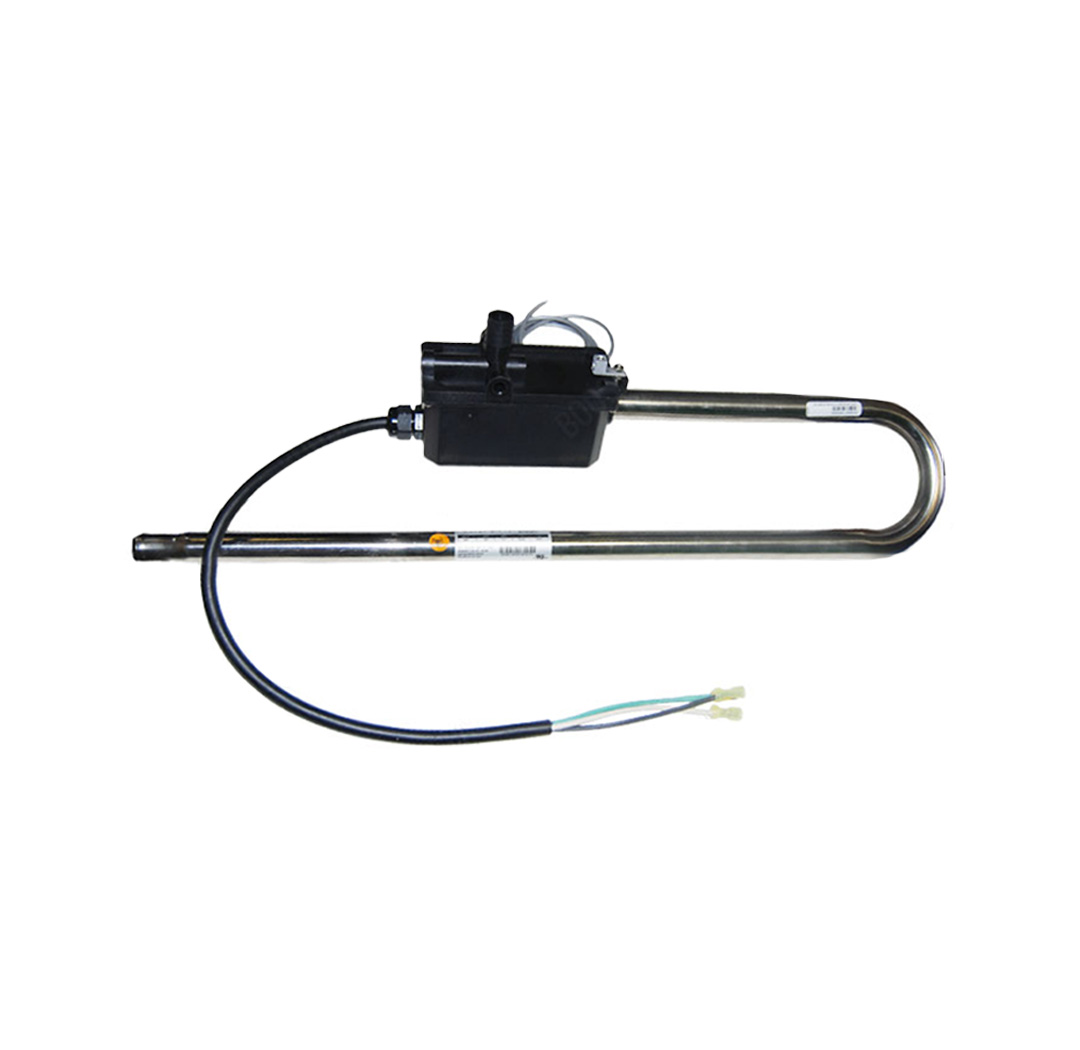

Heater 58320 2.9 kW angledTitanium resistance
Power: 2.9kW
The heater comes with a built-in flow sensor.
Caldera/Hotspring® Reference: 1076701

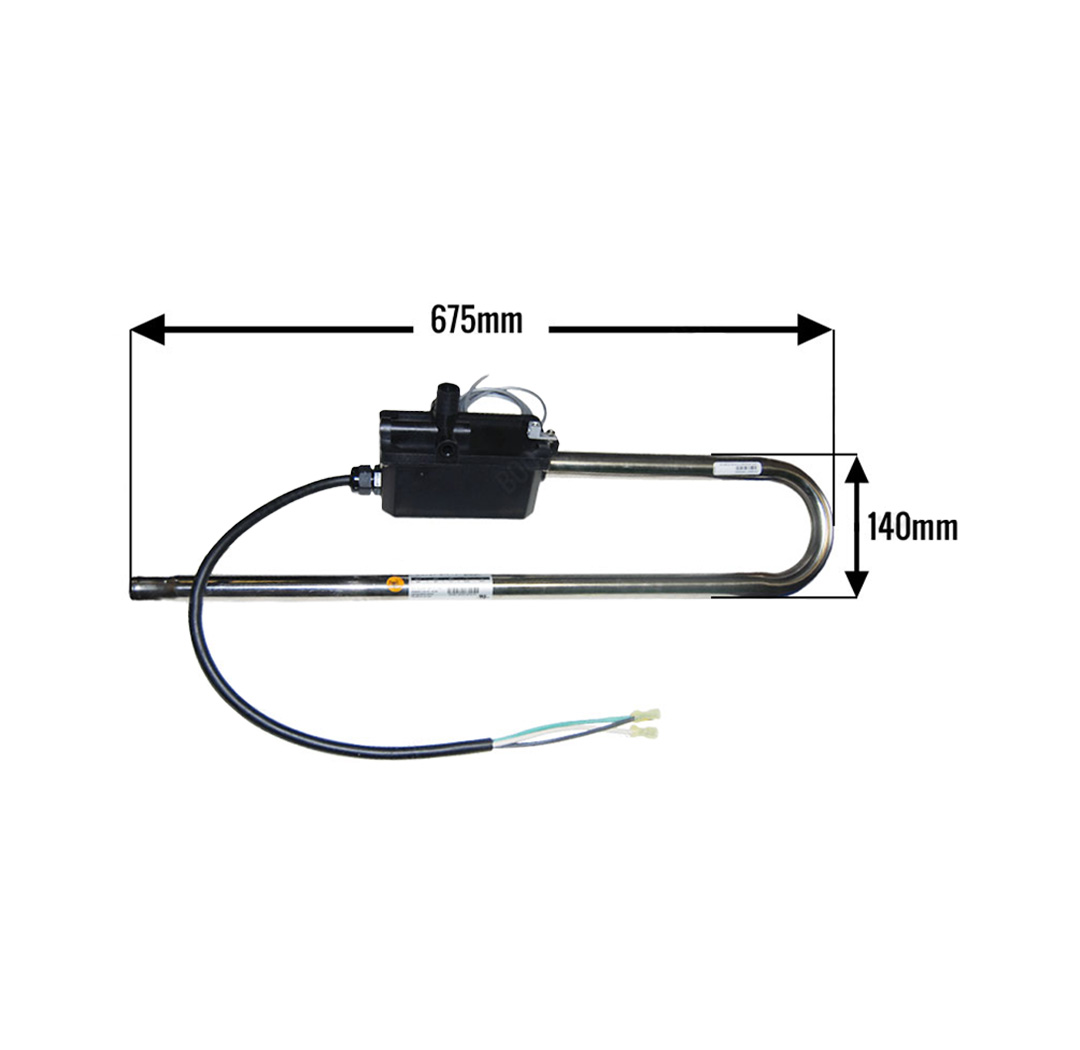

Heater Dimensions:
- Length: 675mm
- Width: 140mm
Technical Specifications: - Power: 2900Watts
- Supply: 220-240V
- AMPS: 12.1
- Max Pressure: 1.1BAR
- Minimum Flow: 17.8 l/min
| Common issues with heaters:
- Defective sensors
- Overvoltage on the resistance
- Resistance overheating
- Resistance causing a short circuit
|
Pipe Connection
The heater connects directly to a 3/4" pipe (27mm outer diameter)
If your piping differs, check out our range of
Fittings and Unions to find the fitting that matches your piping
Compatible with
BALBOA Control Box
