Supports up to 2 massage pumps
Replaces the following references: TY2 - TY3 - M24A - M07D01
Compatible with control keypads HLW JZ-3C and M07D01
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

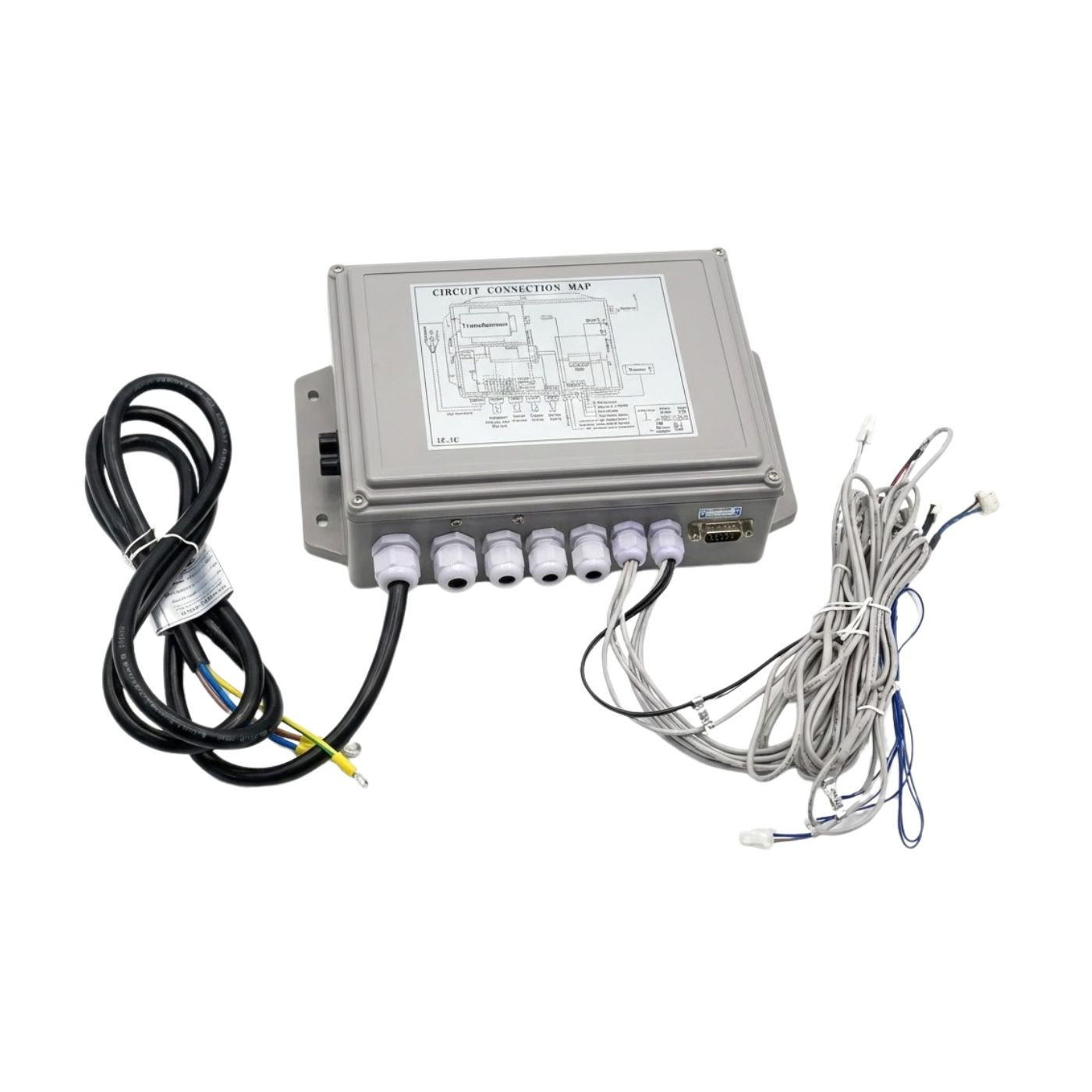

The A-JZ3C control box is a complete electronic unit that can replace the following models: TY2, TY3, M24A, and M07D01. Reliable and versatile, it ensures full management of the spa's main functions: pumps, heating, ventilation, lighting, ozone, and audio. Compatible with many Chinese-origin spa brands, it is an ideal solution for replacing or upgrading your existing system.
| Feature | Detail |
|---|---|
| Model | A-JZ3C |
| Compatibility | Replaces TY2, TY3, M24A, and M07D01 control boxes |
| Manufacturer | HLW |
| Power supply | 220 – 240 V |
| Heating power | 3 kW – 220 V |
| Pump 1 | Circulation pump 220 – 240 V |
| Pump 2 | Massage pump 220 – 240 V |
| Blower | 220 – 240 V |
| Lighting | 12 V – integrated LED control |
| Ozonator | Yes |
| Audio | Yes |
| Temperature sensor | Yes – integrated |
| Water level sensor | Yes |

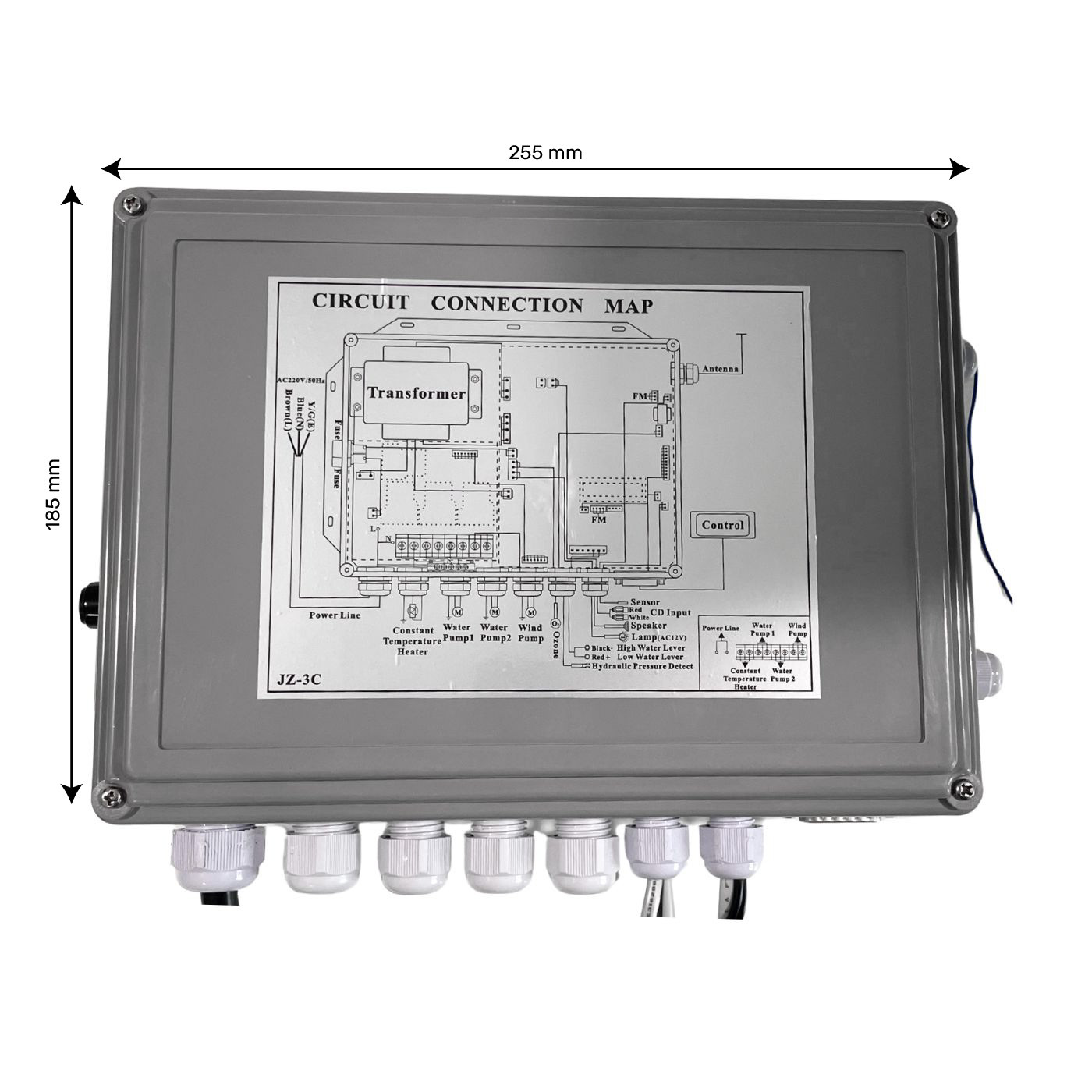

| Length | 255 mm |
| Width | 185 mm |
| Height | 100 mm (282 mm with mounting bracket) |

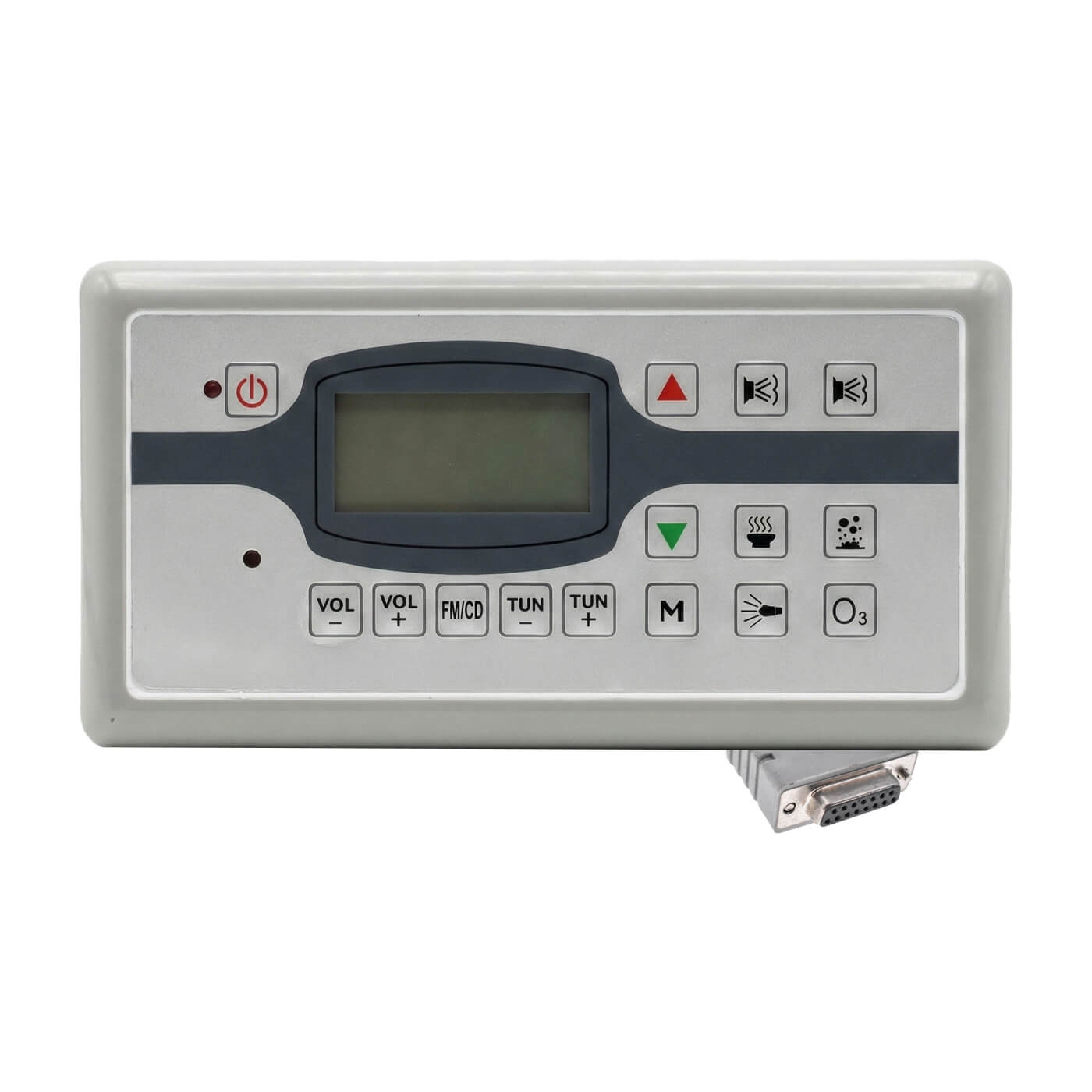

| Keypad compatibility | HLW JZ-3C control panel / M07D01 screen |
| Compatible brands | Champion, Jazzi Pool, JnJ, Monalisa and other Chinese manufacturers |

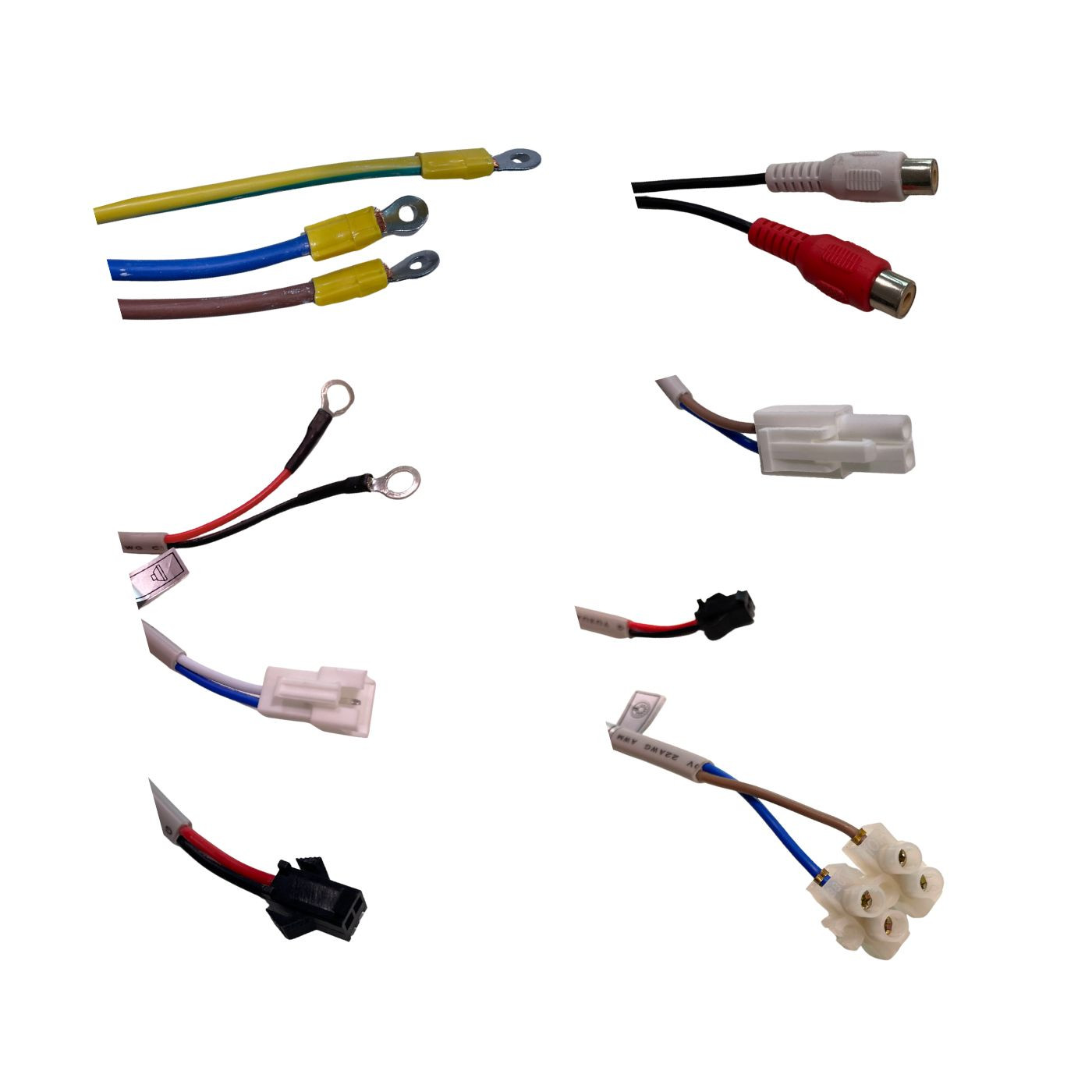

The A-JZ3C control box is compatible with HLW JZ-3C and M07D01 control keypads and is suitable for most spas using HLW electronic systems. Thanks to its standard format and pre-installed connectors, it can easily replace TY2, TY3, M24A, or M07D01 models with no wiring modifications. It provides a complete interface for automatic control of temperature, lighting, heating, and filtration.
The A-JZ3C control box offers a comprehensive and reliable solution for managing your spa equipment, ensuring a simple, stable, and long-lasting installation.
The A-JZ3C control box combines power, reliability, and universal compatibility, offering optimal control for dual-pump spas with 3 kW heating systems.
Champion – Jazzi Pool – JnJ – Monalisa and many other Chinese-made brands.
