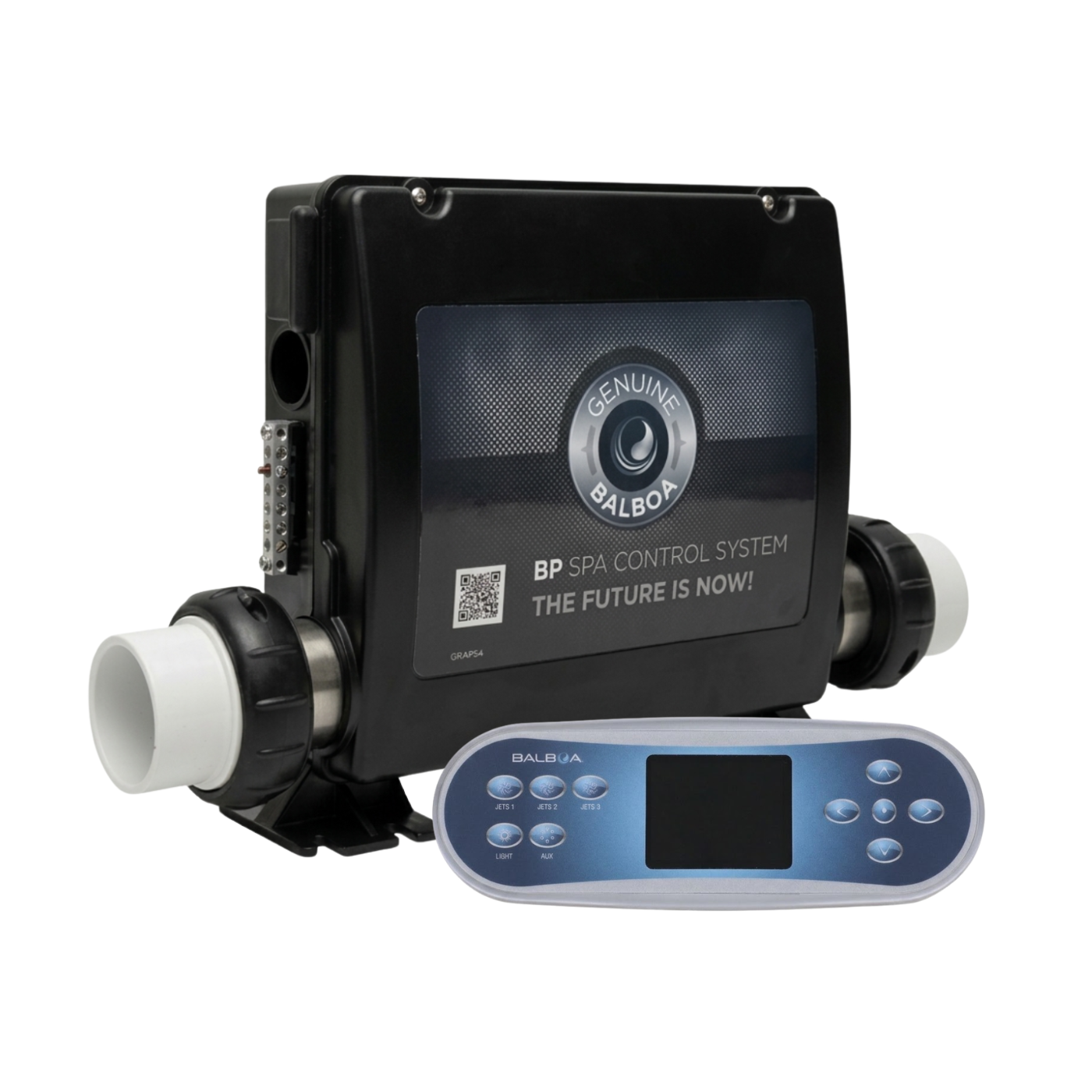

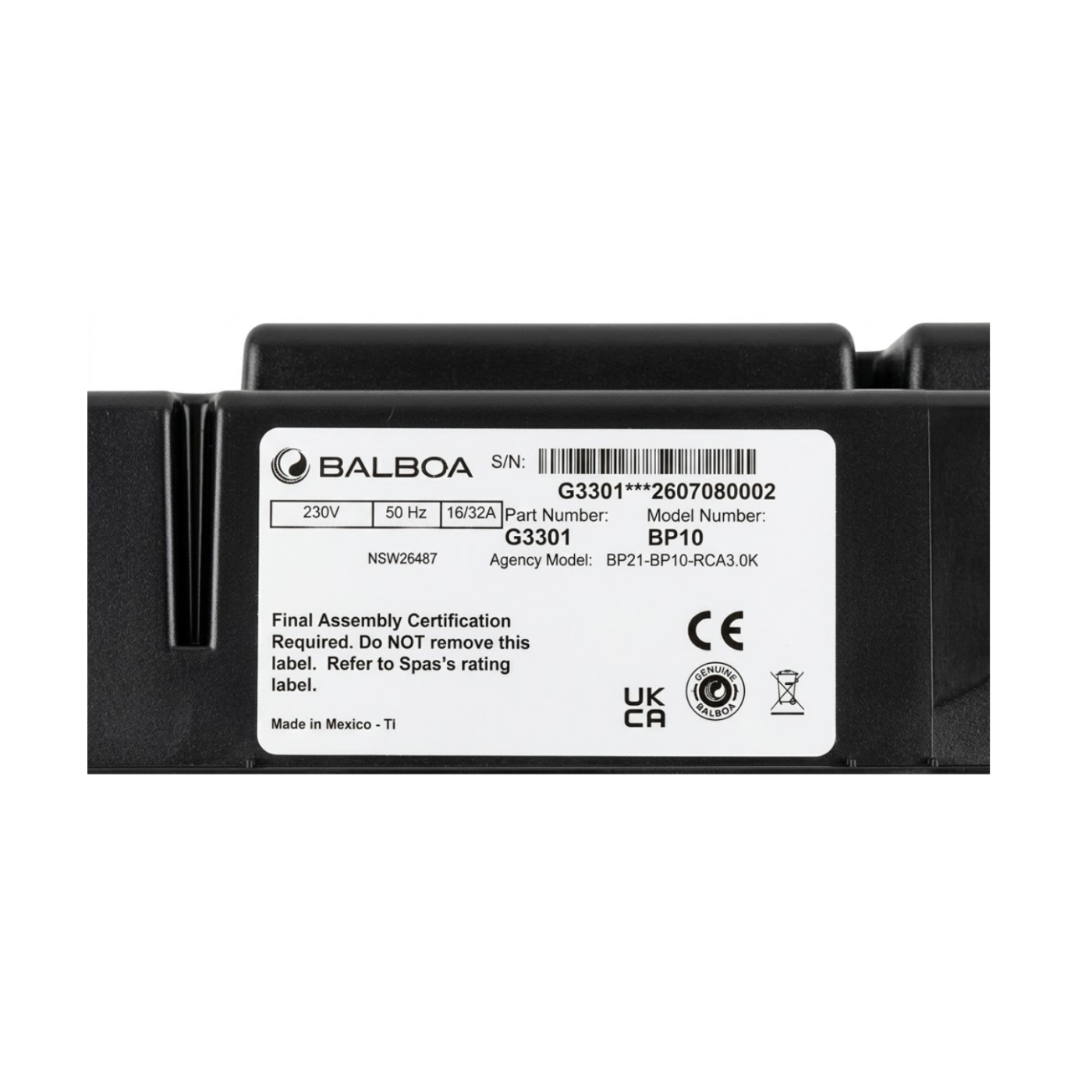

Replacement Kit with BP10 Control Box and TP700 Control Panel
This BP10 and TP700 replacement kit includes a hot tub control box with a 3 kW C8Z heater, a TP700 control panel, and several connection accessories. It also includes a 3-jet control panel overlay, AMP extension cables for single-speed and dual-speed equipment, and a complete Balboa lighting kit.
| Brand | Balboa |
| Product Type | Complete Hot Tub Replacement Control System |
| Control Box | BP10 |
| Heater | 3 kW - C8Z |
| Control Panel | TP700 |
| Lighting | Balboa cable, socket, holder, and bulb |
| Number of Part Numbers | 6 |
| Total Quantity | 11 pieces |
Compatibility and Checks Before Ordering
Before ordering this replacement control system, check the part numbers of your existing setup and the components you need to replace.
The kit includes a BP10 control box and a TP700 control panel. Compatibility with other hot tub systems or models has not been confirmed.
Also check the connection types of your equipment, especially whether your pumps are single-speed or dual-speed, to make sure the included cables are suitable.
Installation and Replacement
Replacing a hot tub control system requires checking several details before installation. The goal is to make sure the new control box fits your existing setup without any issues related to dimensions or connections.
Before installation:
- Disconnect power to the hot tub before performing any work.
- Identify your existing configuration: check the number of pumps, their operating speeds, and whether your hot tub has a blower, circulation pump, or ozonator.
- Check the dimensions: make sure there is enough space for the BP10 control box and TP700 control panel.
- Check the electrical connections: verify wire gauge, electrical protection, and equipment compatibility with the BP10 control box.
What's Included
The kit contains a total of 11 pieces across 6 different part numbers.
Kit Component Dimensions

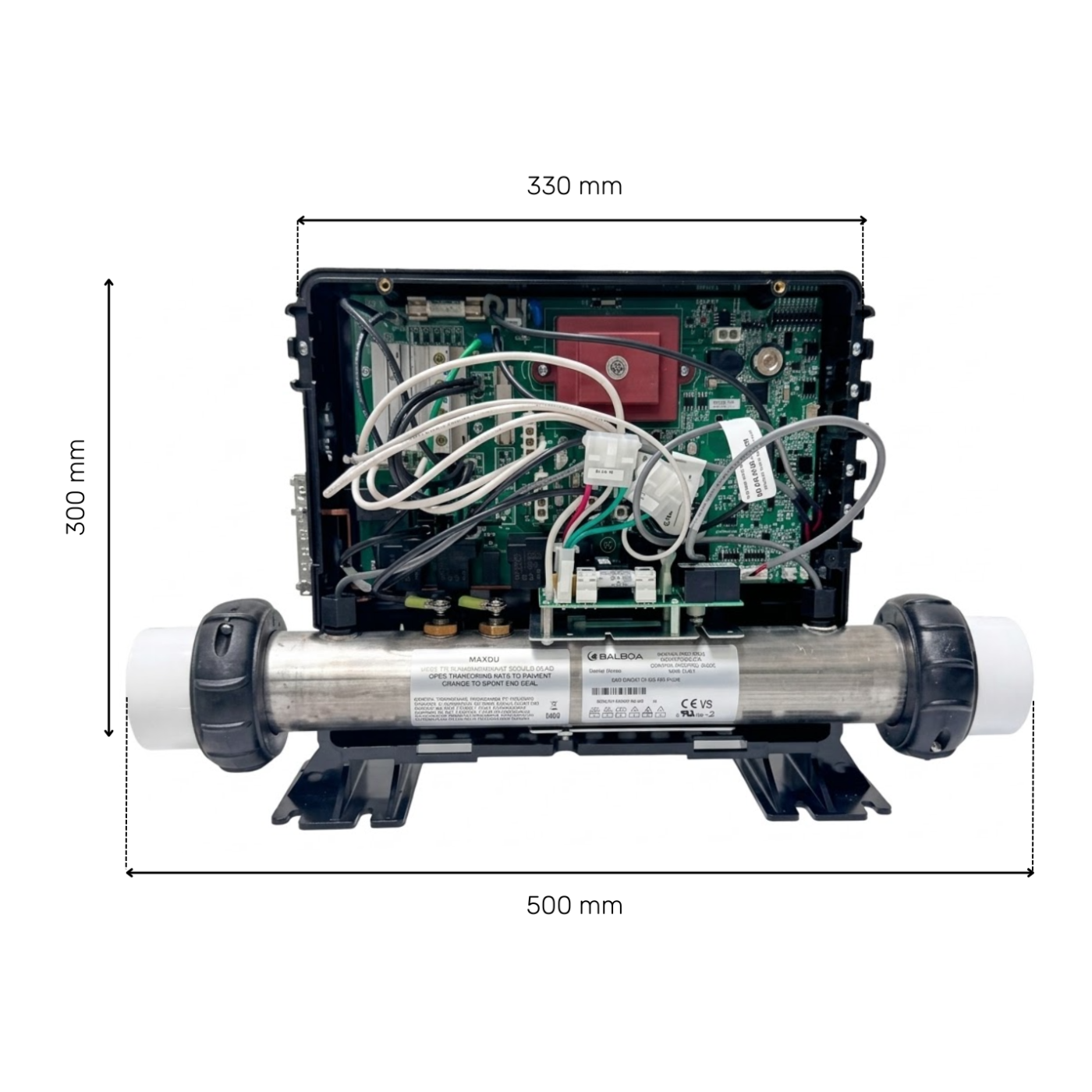

BP10 Control Box with Heater Dimensions
- Height: 300 mm
- Depth: 120 mm
- Overall length with heater: 500 mm
- Heater width without fittings: 330 mm
- Heater width with fittings: 430 mm

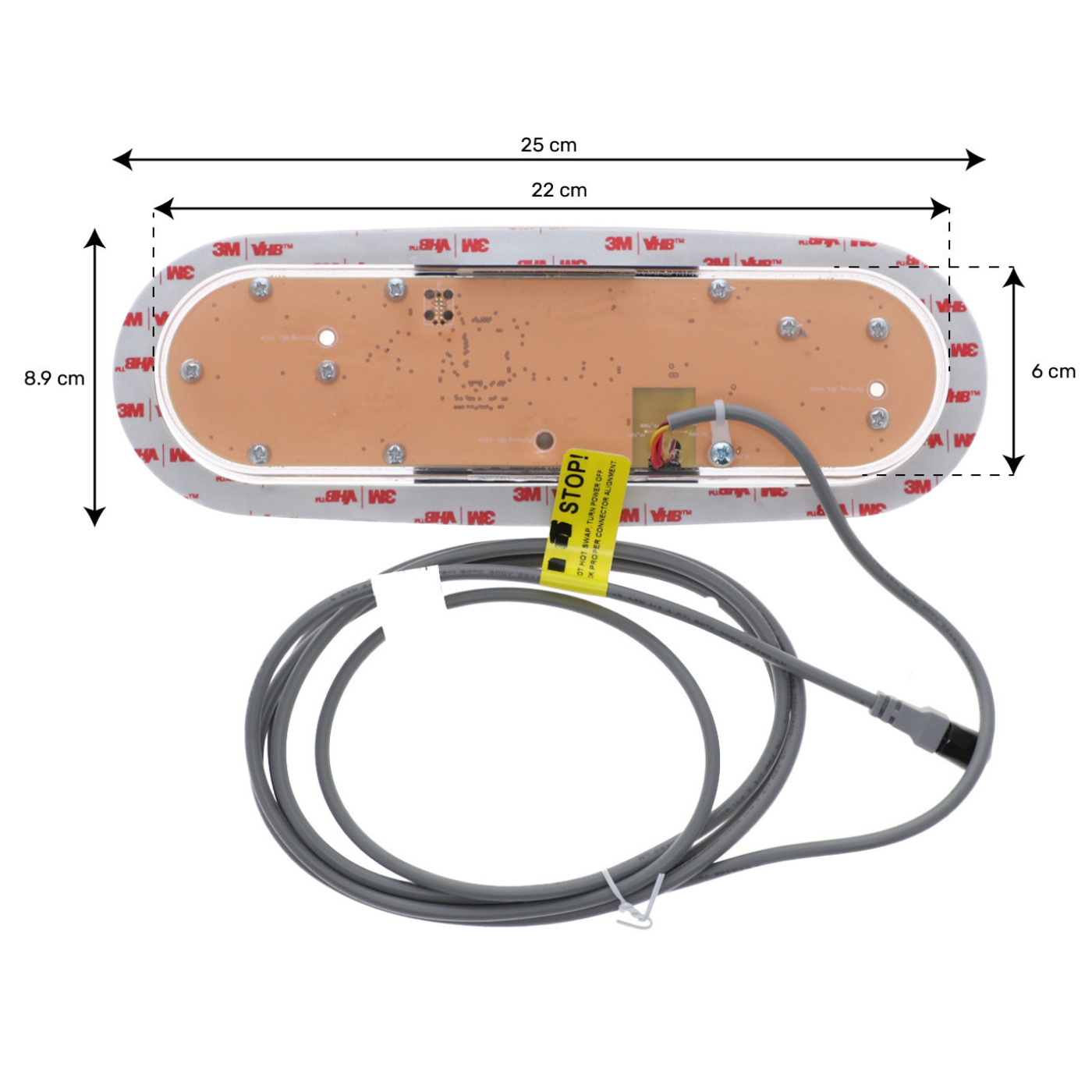

TP700 Control Panel Dimensions
- Display dimensions: 65 x 50 mm
- Control panel dimensions: 254 x 89 mm
- Shell cutout dimensions: 223 x 60 mm
AMP Cable Lengths
- Single-speed AMP cable: 1.6 m
- Dual-speed AMP cable: 1.6 m
Frequently Asked Questions
What is included in the BP10 and TP700 replacement kit?
The kit includes a BP10 control box with a 3 kW C8Z heater, a TP700 control panel, a 3-jet overlay, five single-speed AMP cables, two dual-speed AMP cables, and a Balboa lighting kit.
Does the TP700 control panel come with an overlay?
Yes, the TP700 control panel (part number 0K713) comes with an overlay, but it is not preinstalled. The overlay is included separately in the kit under part number 0K715 (3-jet configuration overlay).
Which connection cables are included?

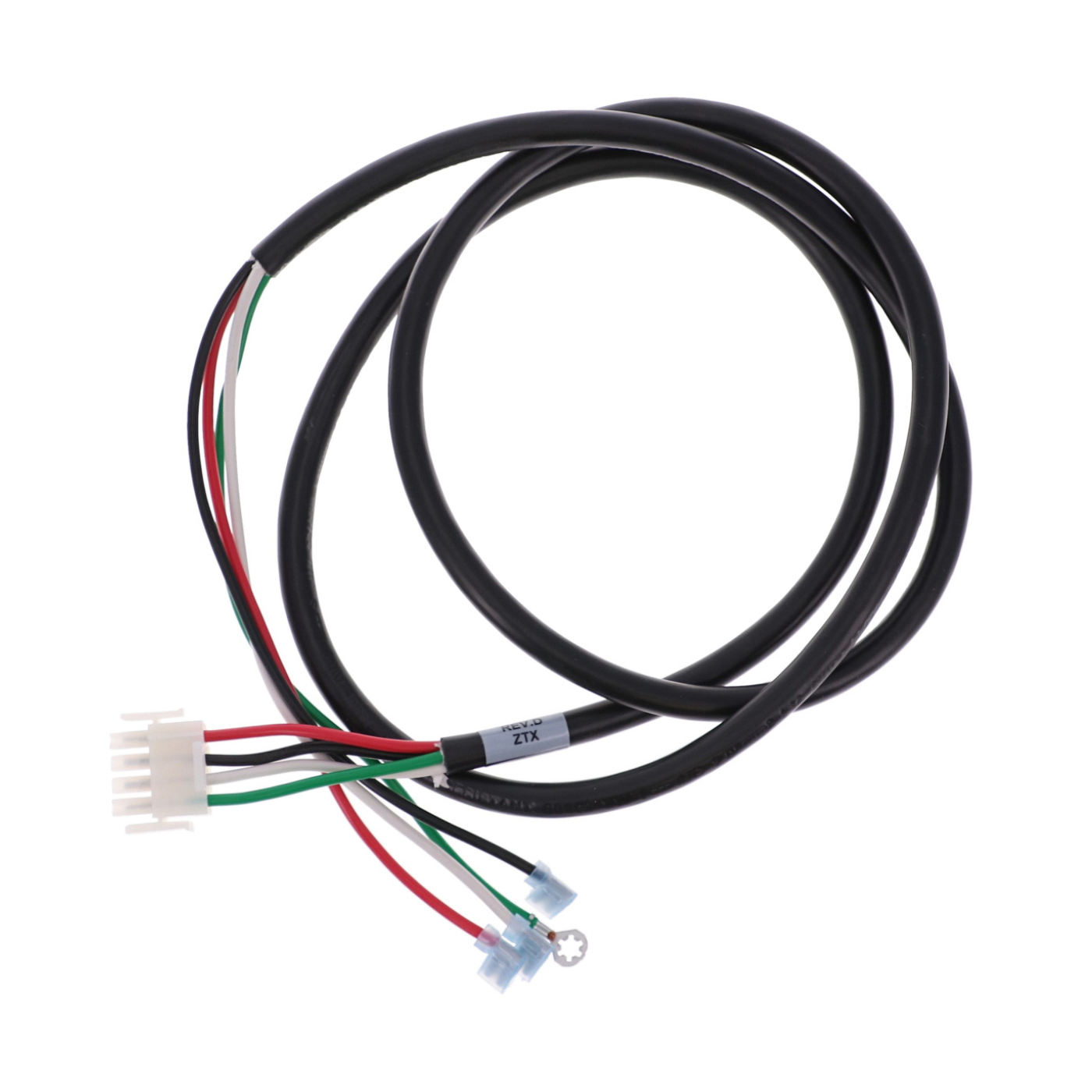

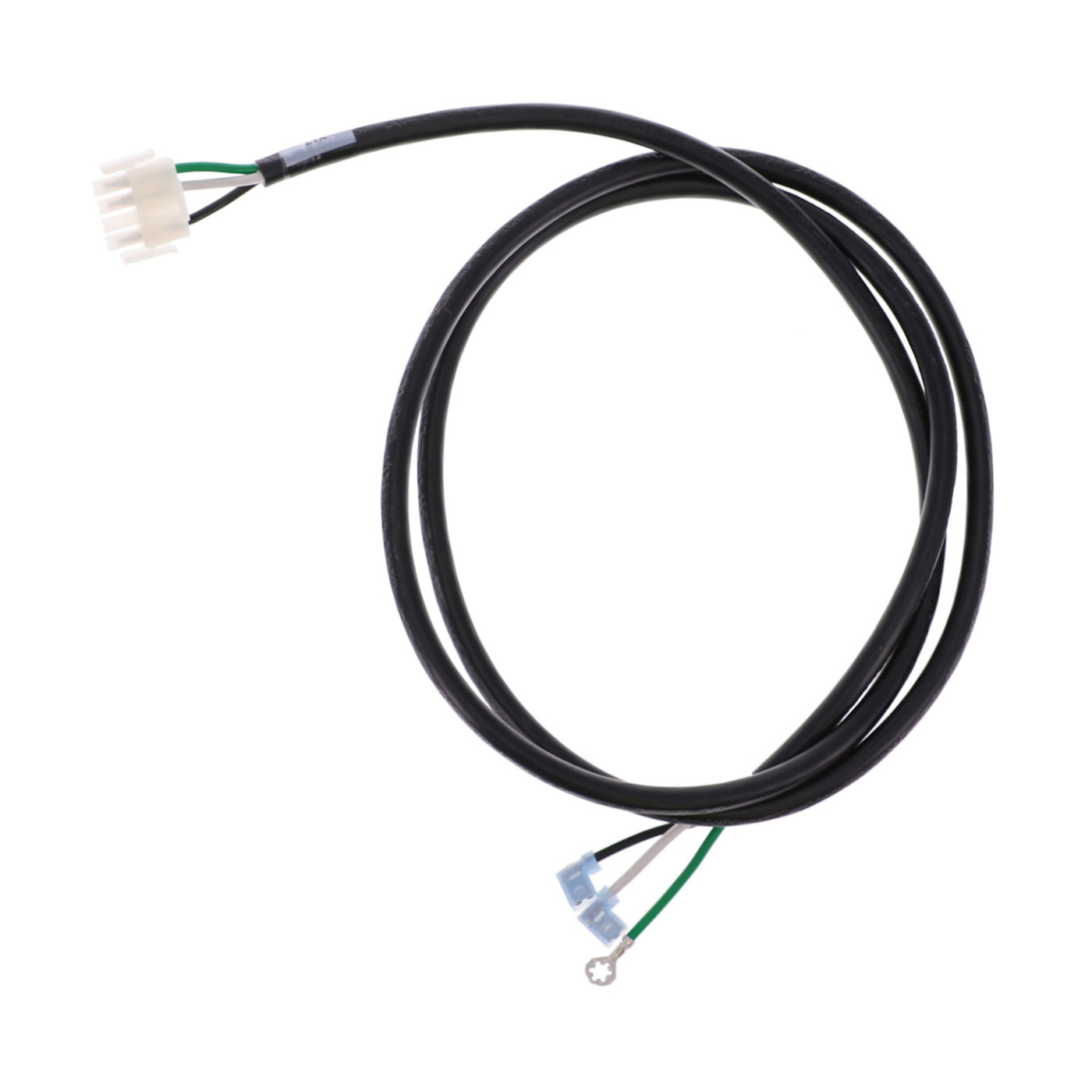

The kit includes five AMP extension cables (part number 00073) for single-speed equipment, blowers, or ozonators, along with two AMP extension cables (part number 00074) for dual-speed pumps.
Does the kit include a lighting system?

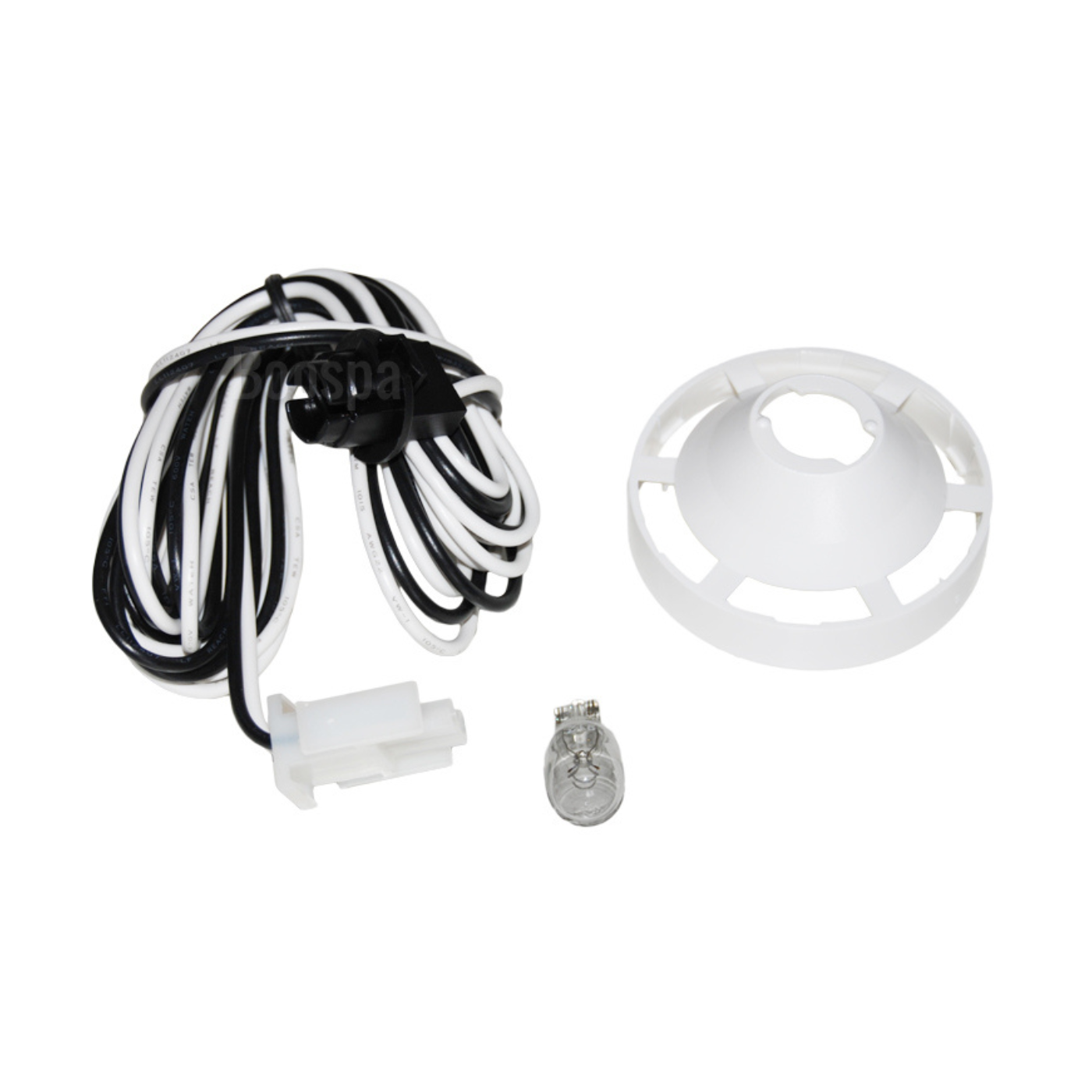

Yes. A Balboa lighting kit (part number 04286) is included. It contains a cable, socket, holder, and bulb. Check compatibility with your existing setup before replacement.
