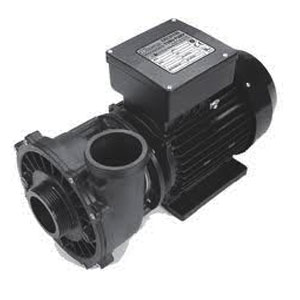

Double-Speed Executive EURO - 56 Frame 2.0 HP - Aspiration 94mm

Ref : A-000000-0b533

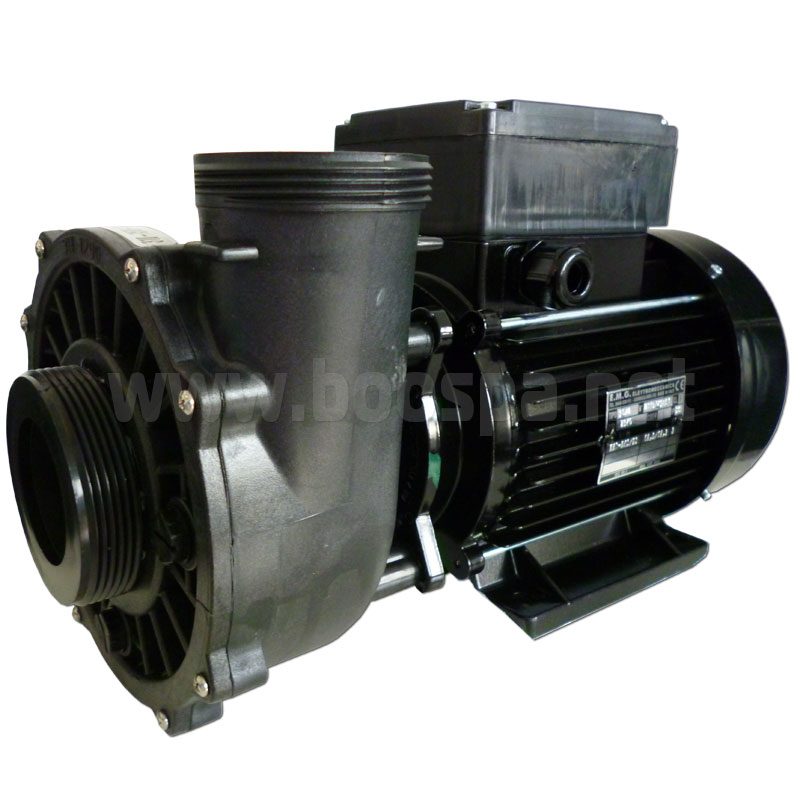

Waterway Executive EURO Spa Pump – Two-speed – 56 Frame – 2.0 HP - 94mm Inlet – Dual-Speed

Name: Waterway Executive EURO Spa Pump – Two-speed – 56 Frame – 2.0 HP - 94mm Inlet – Dual-Speed
Brand: WATERWAY
SKU: A-000000-0b533
Price: 433 EUR
Availability: InStock

The most common pump used in spas sold in France and Europe
Power: 2 HP – 1500 W – 56-frame motor
Outlet fittings and connection cable + plug not included

433,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

The Waterway Executive Euro pump is undoubtedly the most widespread and reputable pump used in spas sold in France and Europe. This pump features an Italian EMG electric motor, ensuring silence and reliability.
It has been installed in top spa brands such as Jacuzzi, Hotspring, and Caldera.

This is the 56 Frame version corresponding to the motor size. This pump is different from the 48 Frame version, which is smaller. The manufacturer increased the motor size to make it more robust and reliable. It is essential to correctly identify the chassis of your Executive Euro pump from the WATERWAY brand.

This product sheet features the Dual-speed models.

For Single-speed models, click on the following link: Single-speed Executive Euro Spa Pump

48 - 56 Frame motor Executive Euro Waterway

Specificities of the Executive Euro pump - WATERWAY

High-performance spa massage pump manufactured by the renowned Waterway brand (USA)
Highly reliable Italian EMG motor
2 double shielded ball bearings, moisture-resistant with grease for quieter operation and increased lifespan
2-speed motor for enhanced efficiency
Capacitor (start and stop) for lower energy consumption (2HP: 25µF / 3HP: 40µF)
Motor protection
Manufactured to IPX5 standards

Suction connection on 94mm threaded male fitting
Discharge connection on 78mm threaded male fitting

Summary of available Executive Euro models in 56 Frame:

Single-speed:

2HP (1500 watts)
- 78mm Suction: PF-20-1N22X replaces reference 3R10850-OD
- 94mm Suction: PF-20-1N22X25
2.5HP (2000 watts)
- 78mm Suction: PF-25-1N22X (Obsolete: replaced by the 3HP model)
3HP (2250 watts)
- 78mm Suction: PF-30-1N22X replaces references 3R11250-0D or PF-30-1N22C4
- 94mm Suction: PF-30-1N22X25

Dual-speed:

2HP (1500 watts)
- 78mm Suction: PF-20-2N22X replaces reference 3R20850-0D
- 94mm Suction: PF-20-2N22X25
3.2HP (2480 watts)
- 78mm Suction: PF-25-2N22X replaces reference PF52N22X (We recommend opting for the slightly more powerful 3.5HP model)
3.5HP (2710 watts)
- 78mm Suction: PF-30-2N22X replaces references 3R21050-0D or PF522N25X or PF-30-2N22C
- 94mm Suction: PF-30-2N22X25 replaces reference PF52-N25X-25SP

Technical diagrams

DIMENSIONS:

Pipe connections

Delivered without discharge fittings You can also reuse your old pipe fittings if they are still functional. If your piping differs, access our range of Pump Unions and Fittings to find the fitting that matches your piping.

The pump body is adjustable to fit your piping. You can then have a left or right discharge based on your installation. Simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then, replace the screws.

Electrical connection

The pump is supplied without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Spa Cables and Plugs section.

Here are the most commonly used Plugs in the Spa industry:


AMP Plug	J&J Plug (PIN positions vary depending on the device)
