Simple Speed Executive EURO Pump - 56 Frame 2.0 HP - Aspiration 94mm

Ref : A-000000-0b529

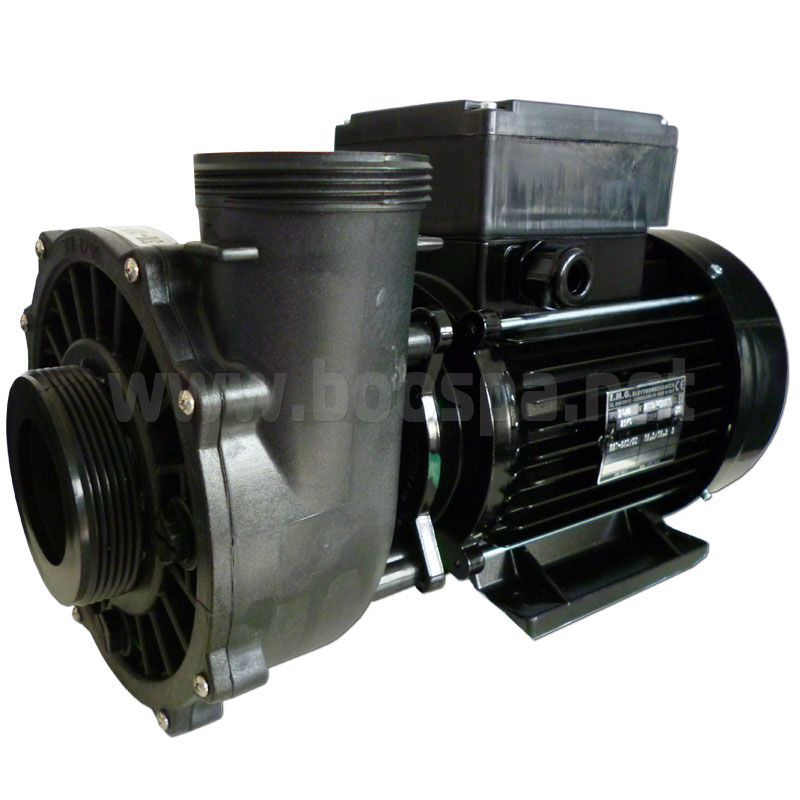

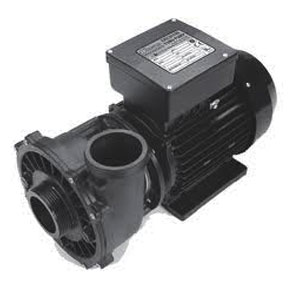

Waterway Executive EURO Spa Pump – 56 Frame – 2.0 HP – 94 mm intake – Single-speed

Name: Waterway Executive EURO Spa Pump – 56 Frame – 2.0 HP – 94 mm intake – Single-speed
Brand: WATERWAY
SKU: A-000000-0b529
Price: 425 EUR
Availability: InStock

One of the most common pumps used in spas sold in France and Europe
Power: 2 HP – 1500 W – 56-frame motor
Outlet fittings, connection cable, and plug not included

425,00 €

In Stock

Only 3 items left in stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

The Waterway Executive Euro pump is undoubtedly the most widespread and reputable pump used in spas sold in France and Europe. This pump features an Italian EMG electric motor, ensuring silence and reliability.
It has been used by top spa brands such as Jacuzzi, Hotspring, and Caldera.

This product sheet presents the Single-speed models, for the Dual-speed models, click on the following link: Pump spa Executive Euro Dual-speed

This is the 56 Frame version corresponding to the motor size. This pump is different from the 48 Frame version, which is smaller. The manufacturer increased the motor size to make it more robust and reliable. It is important to correctly identify the frame of your WATERWAY Executive Euro pump.

48 - 56 Frame moteur Executive Euro Waterway

Specificities of the Executive Euro pump - WATERWAY

High-performance spa massage pump manufactured by the famous Waterway brand (USA)
High-reliability Italian EMG motor.
2 double shielded ball bearings, moisture-resistant with grease for quieter operation and increased lifespan
Single-speed motor
Capacitor (start and stop) for lower energy consumption (2HP: 25µF / 3HP: 40µF)
Motor protection
Manufactured to IPX5 standards

94mm male threaded suction connection
78mm male threaded discharge connection

Summary of available Executive Euro models in 56 Frame:

Single-speed:

2HP (1500 watts)
- 78mm suction: PF-20-1N22X replaces reference 3R10850-OD
- 94mm suction: PF-20-1N22X25
2.5HP (2000 watts)
- 78mm suction: PF-25-1N22X (Obsolete: replaced by the 3HP model)
3HP (2250 watts)
- 78mm suction: PF-30-1N22X replaces references 3R11250-0D or PF-30-1N22C4
- 94mm suction: PF-30-1N22X25

Dual-speed:

2HP (1500 watts)
- 78mm suction: PF-20-2N22X replaces reference 3R20850-0D
- 94mm suction: PF-20-2N22X25
3.2HP (2480 watts)
- 78mm suction: PF-25-2N22X replaces reference PF52N22X
3.5HP (2710 watts)
- 78mm suction: PF-30-2N22X replaces references 3R21050-0D or PF522N25X or PF-30-2N22C
- 94mm suction: PF-30-2N22X25 replaces reference PF52-N25X-25SP

Technical diagrams

DIMENSIONS:

Pipe connections

Delivered without outlet fittingsYou can also reuse your old pipe fittings if they are still functional. If your piping differs, access our range of Pump Unions and Fittings to find the fitting that matches your piping

The pump body is adjustable to fit your piping. You can then have a discharge on the left or right based on your installation. Simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then, replace the screws.

Electrical connection

The pump is delivered without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Spa Cables and Plugs section

Here are the most commonly used Plugs in the Spa industry:


AMP Plug	J&J Plug (PIN positions vary depending on the device)
