Product is no longer manufactured

POOLEX

Ref : A-000000-0d131

Poolex Reversible Heat Pump PC-NANO-A3R

Name: Poolex Reversible Heat Pump PC-NANO-A3R
Brand: POOLEX
SKU: A-000000-0d131
Price: 600 EUR
Availability: InStock

Poolex Reversible Heat Pump
Manufacturer Reference: PC-NANO-A3R
Dimensions: 400 x 280 x 385mm

600,00 €

Final break

See replacement products

Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

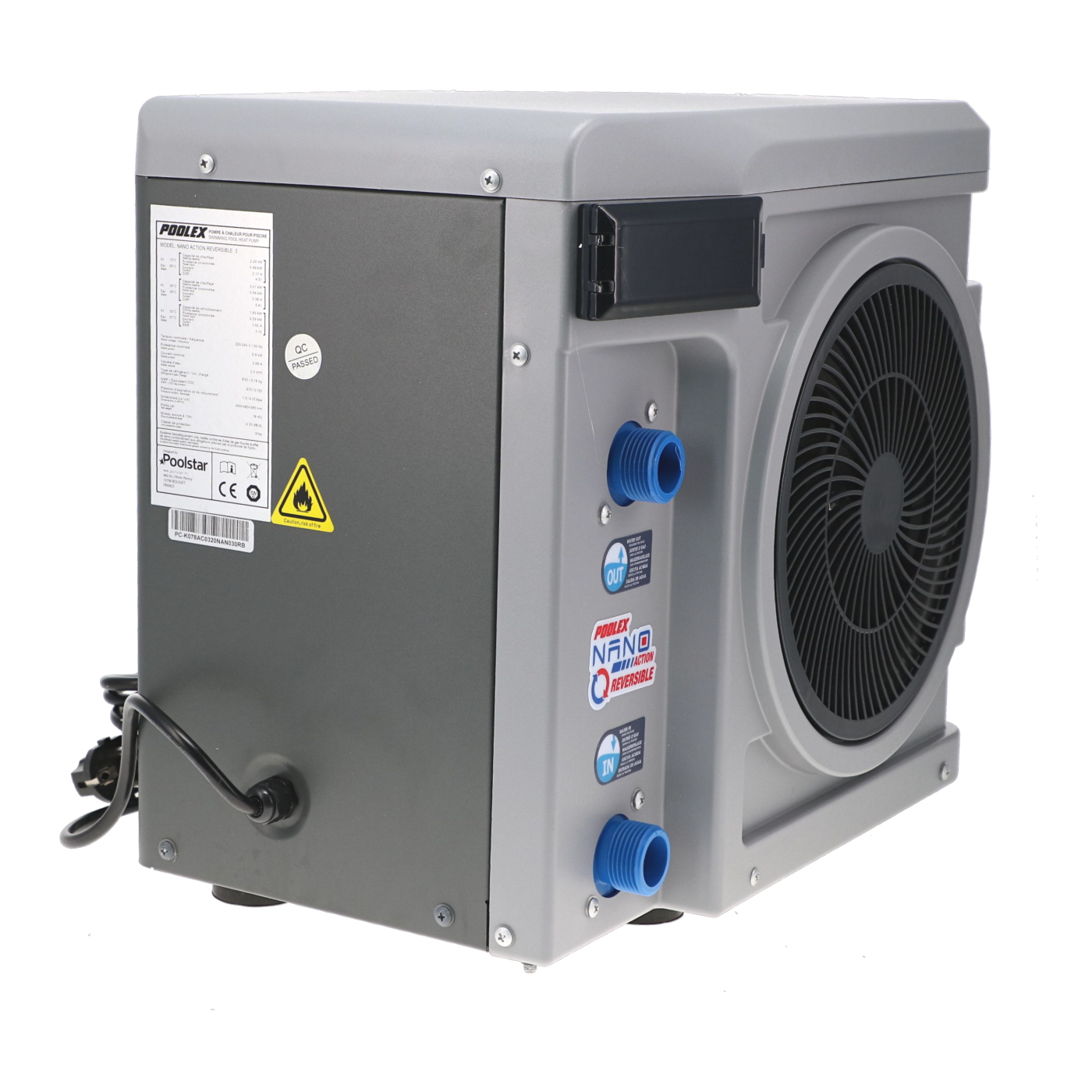

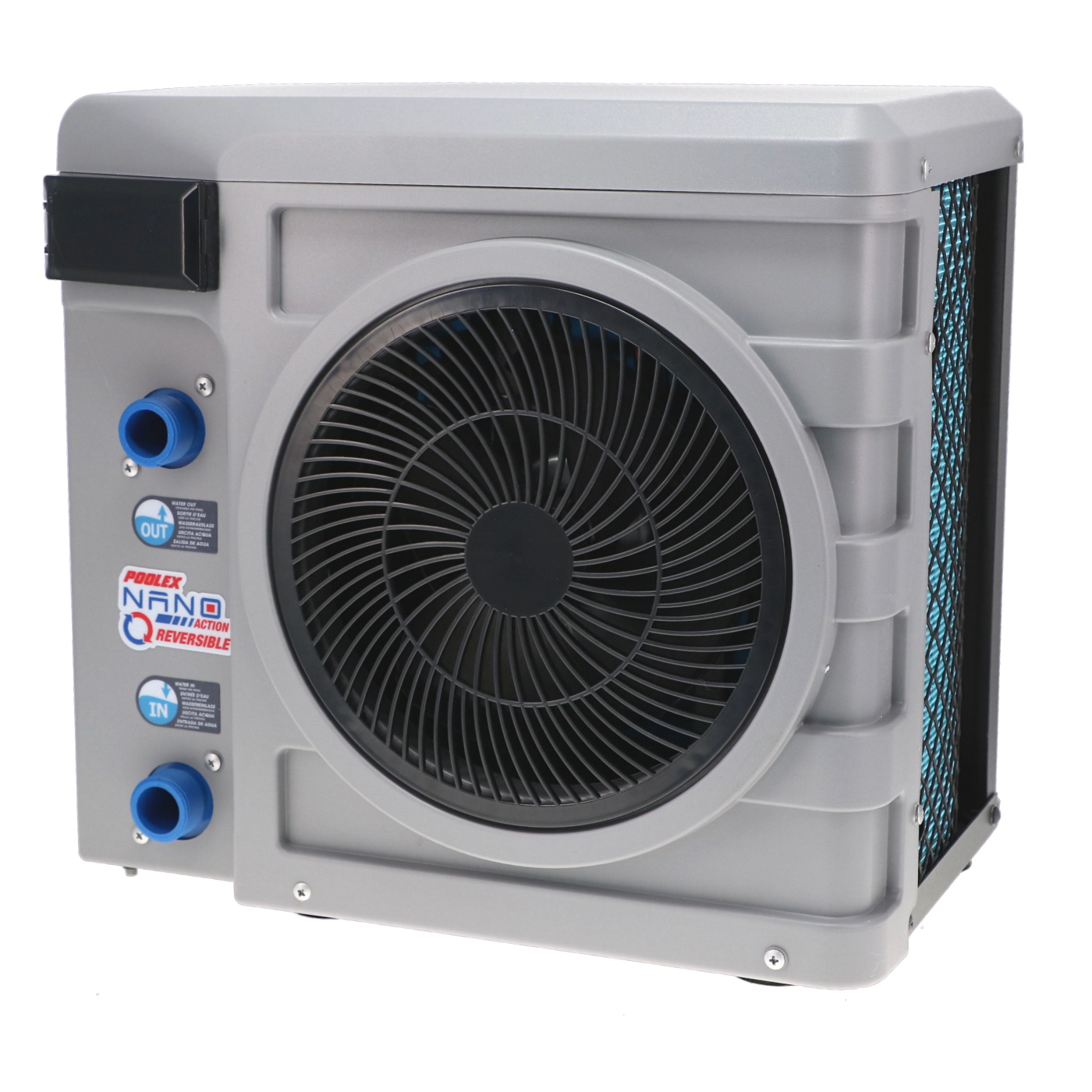

The Poolex Nano reversible heat pump: the pump for small pools

This heat pump is specially designed for pools with 10 to 20m3 of water.
Specially designed to make your life easier, the heat pump is equipped with a reversible system, allowing it to both increase and decrease the water temperature.

An ultra-compact pump (400 x 280 x 385 mm) and ultra-silent (33dB at 10m from the pump).
It features components found in larger heat pumps.
It can heat your pool in just a few hours.

Economical, you can plug it directly into a standard electrical outlet thanks to its 5-meter cable equipped with a 10mA differential protection.

Poolex Reference: PC-NANO-A3R

Included with the item:

Multilingual installation and user manual

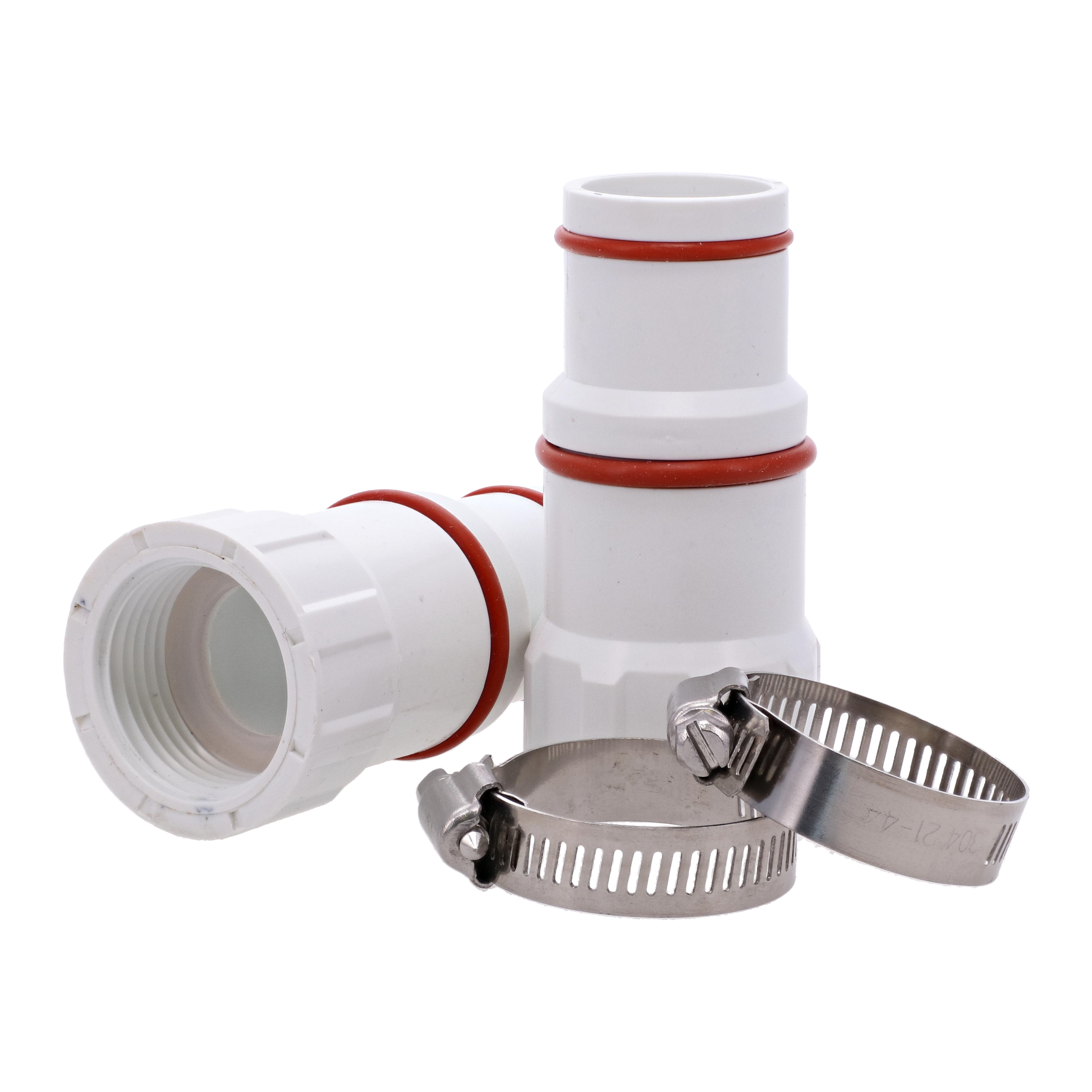

2 PVC connectors (ø 32-38mm)

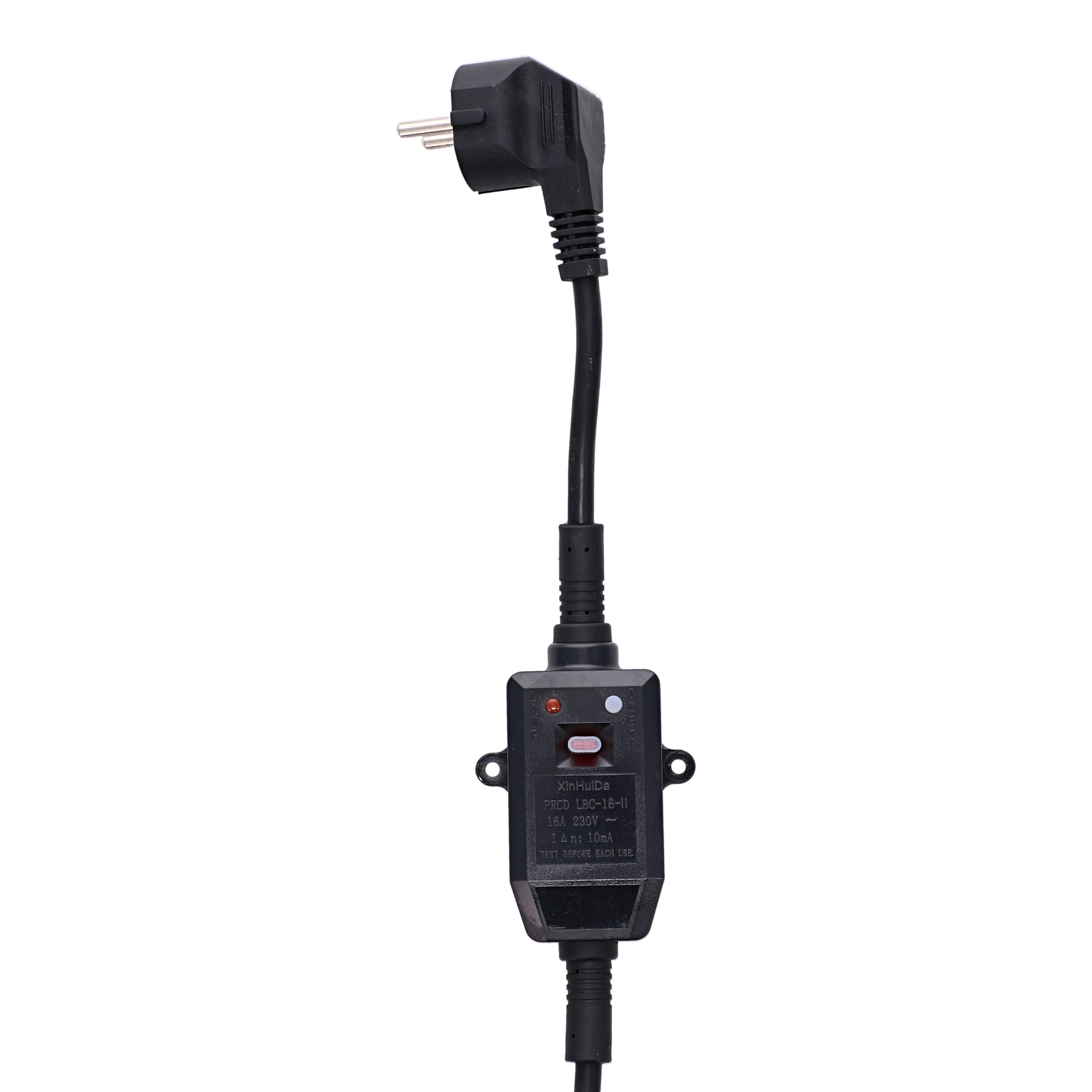

5m power cable

All technical specifications of the Nano pump

Dimensions and specifics of the Nano heat pump

Device dimensions WxDxH (mm): 385 x 400 x 280
Device weight (kg): 19
Packaging dimensions WxDxH (mm): 415 x 460 x 370
Packaging weight (kg): 20
Control panel: Backlit control screen
Mode: Heating
Compressor type: Rotary
Sound pressure level at 10m (dBA)*: <29
Max. pool volume (m3)**: ≤20

* According to EN ISO 3741 and EN ISO 354 directives
** Calculated for a private pool covered with a bubble cover

Heating power

Air 26°C (Room temperature) and water 26°C (Initial temperature):

Heating power (W): 3000
Consumption (W): 540
COP (Coefficient of Performance): 5.61

Air 15°C (Room temperature) and water 26°C (Initial temperature):

Heating power (W): 2220
Consumption (W): 490
COP (Coefficient of Performance): 4.51

Heating capacity

Heating temperature range: 15°C - 40°C
Operating range: -5°C - 43°C
Refrigerant: R32
Charged refrigerant (kg): 0.15

Power supply type and connection

Power supply: Single phase 220-240V - 50Hz
Maximum power (W): 900
Maximum current (A): 3.99
Cable: 5m
Hydraulic connection (mm): PVC 32 / 38 mm

Other characteristics

Min. water flow rate (m3/h): 2
CO2 equivalent: 0.10
Sealing index: IPX4
Pressure drop (mCE): 0.8

Technical documentation

Download data sheet
