Compatible BALBOA 3.0 kW 240V Heater with M7 Sensors

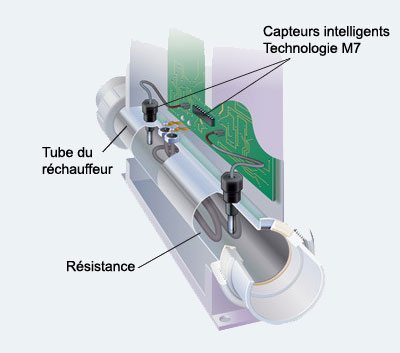

The M7 control system (Millenium 7) is a Balboa-patented technology. Sensors inside the heater allow for accurate flow measurement and continuous water temperature monitoring. Systems using this technology have a longer lifespan and are more reliable.
2 Generations of 3 kW Balboa M7 Compatible Heaters Available

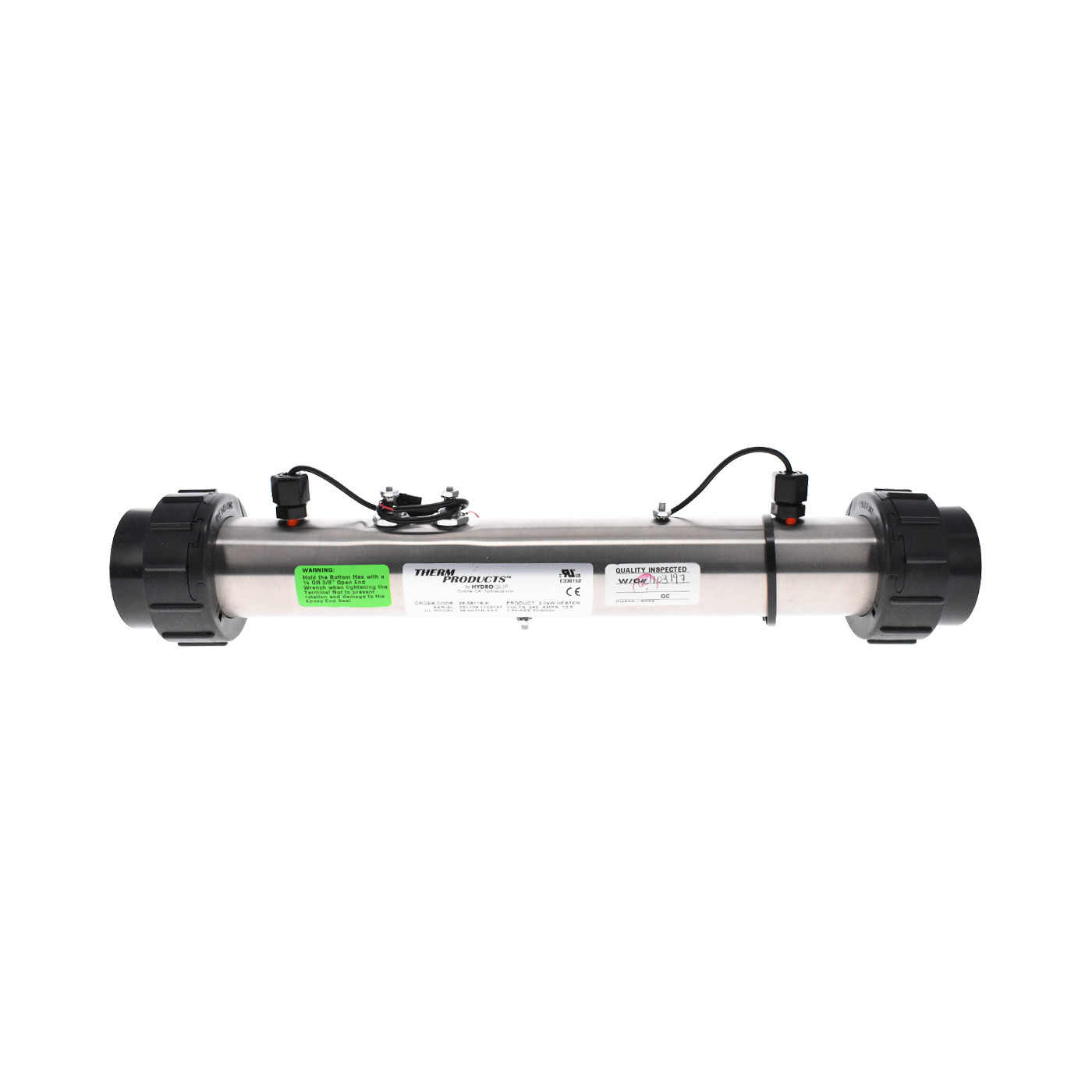

- The model 58118 comes with 2 M7 30344 sensors with a cable of about thirty centimeters. This 3 kW heater is one of the most widely used in the market and is found in many control boxes. It features an Incoloy 800 heating element and can replace heaters like 58107 and even 55626 which has a titanium element.
- The model 58279 is equipped with a Plug N'Click system making it compatible with certain Balboa BP control box models. This system allows you to connect this heater to compatible boxes using a plug, eliminating the need for copper plates. This heater is identical to the 58118 model except for the Plug N'Click system.
Summary of Balboa Spa Heater Features

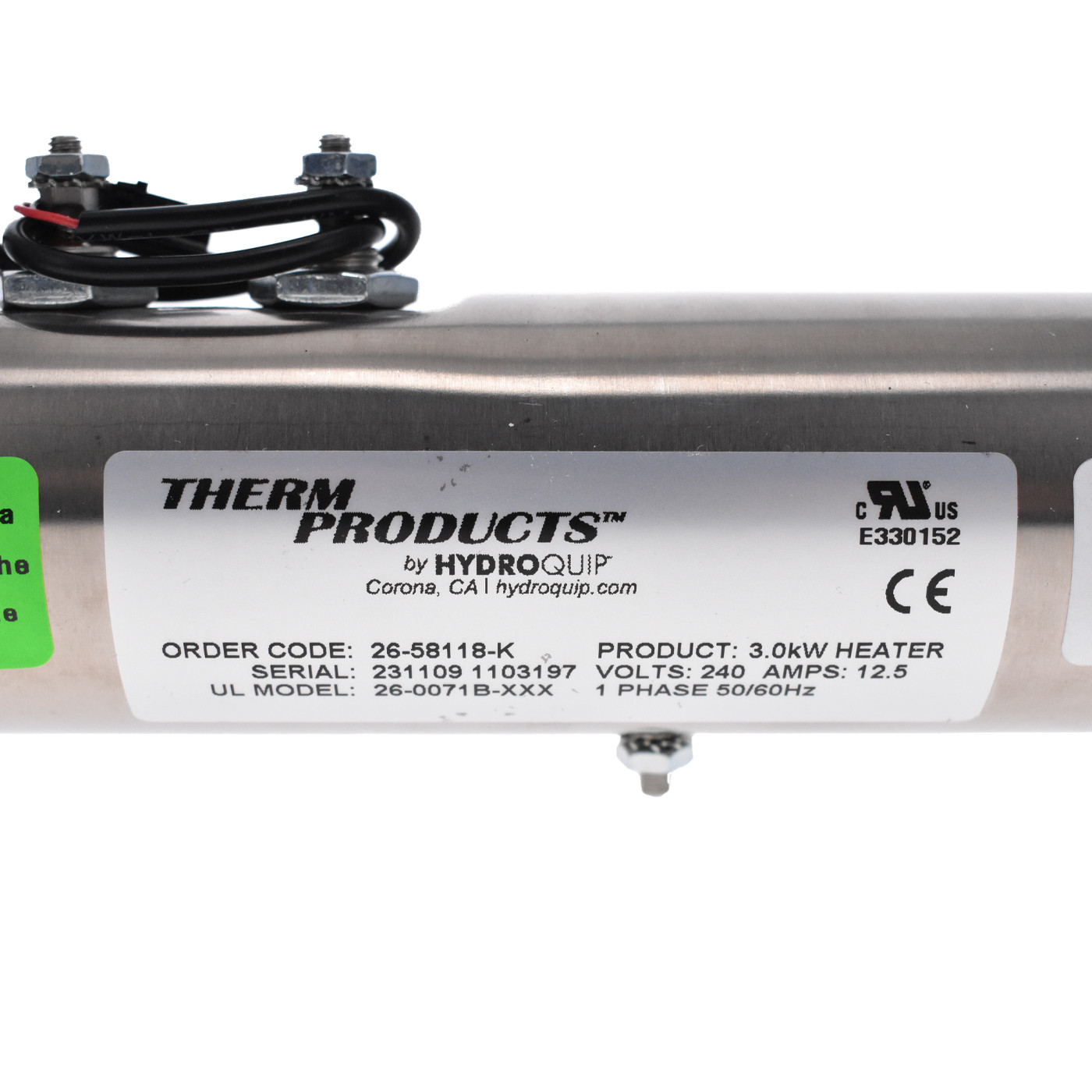

Specifications: - Power: 3 kW
- Voltage: 240 V
- Frequency: 50 Hz
- Amperage: 12.5 A
- Ohm: 19.2 Ω

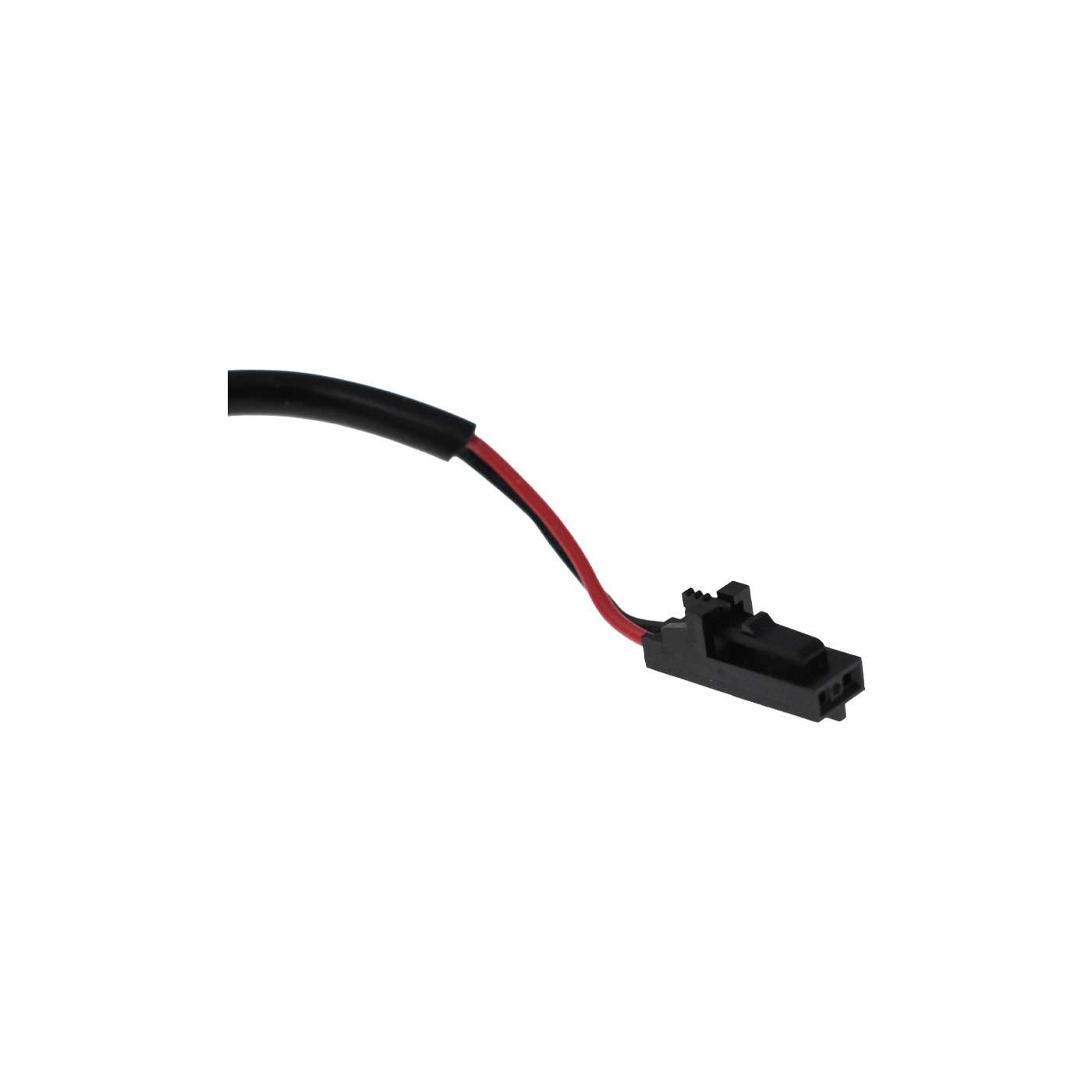

- Sensor Type: 2 M7 sensors
- Heating Element Type: Incoloy 800

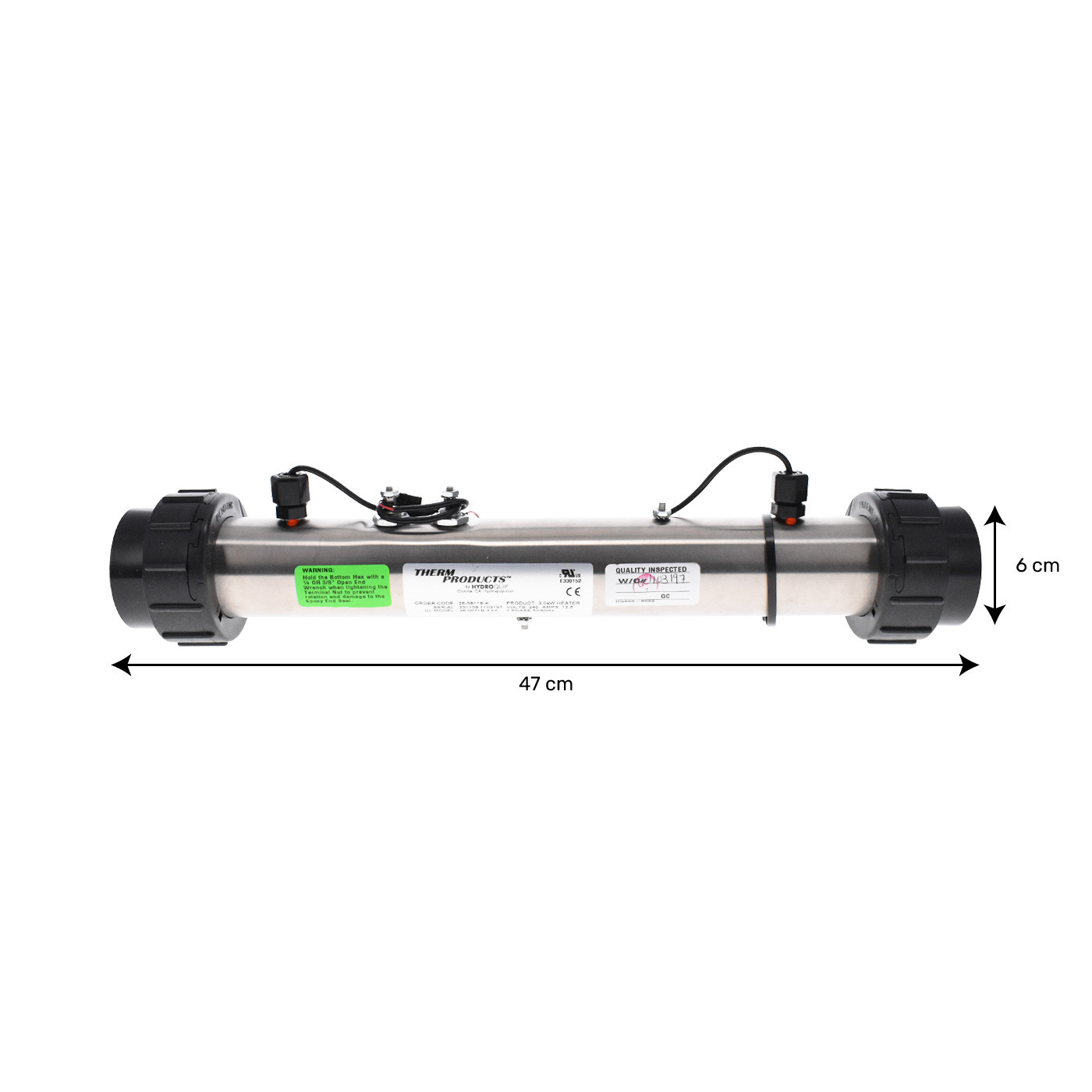

| Dimensions: - Length with fittings: 495 mm
- Length without fittings: 380 mm
- Included Fitting Type: 2 inches
|
Plug N'Click System Diagram and Presentation
 |
|
| Standard Heater Position | 2nd Generation: Connection By Click |
Heater Plumbing Connection
The heater connects directly to a 2" (60mm outer diameter) plumbing.
2" fittings are provided with the heater.
You can also reuse your old plumbing fittings if they are still functional. If your plumbing differs, check our Fittings and Unions range to find the fitting that matches your plumbing.
Control Boxes Compatible with this Spa Heater
Compatibility of the 1st Generation Version
- GS / GL 2000 / BP control boxes
- Can be a direct replacement for Balboa heater reference 58107
