Ref : A-000000-09908

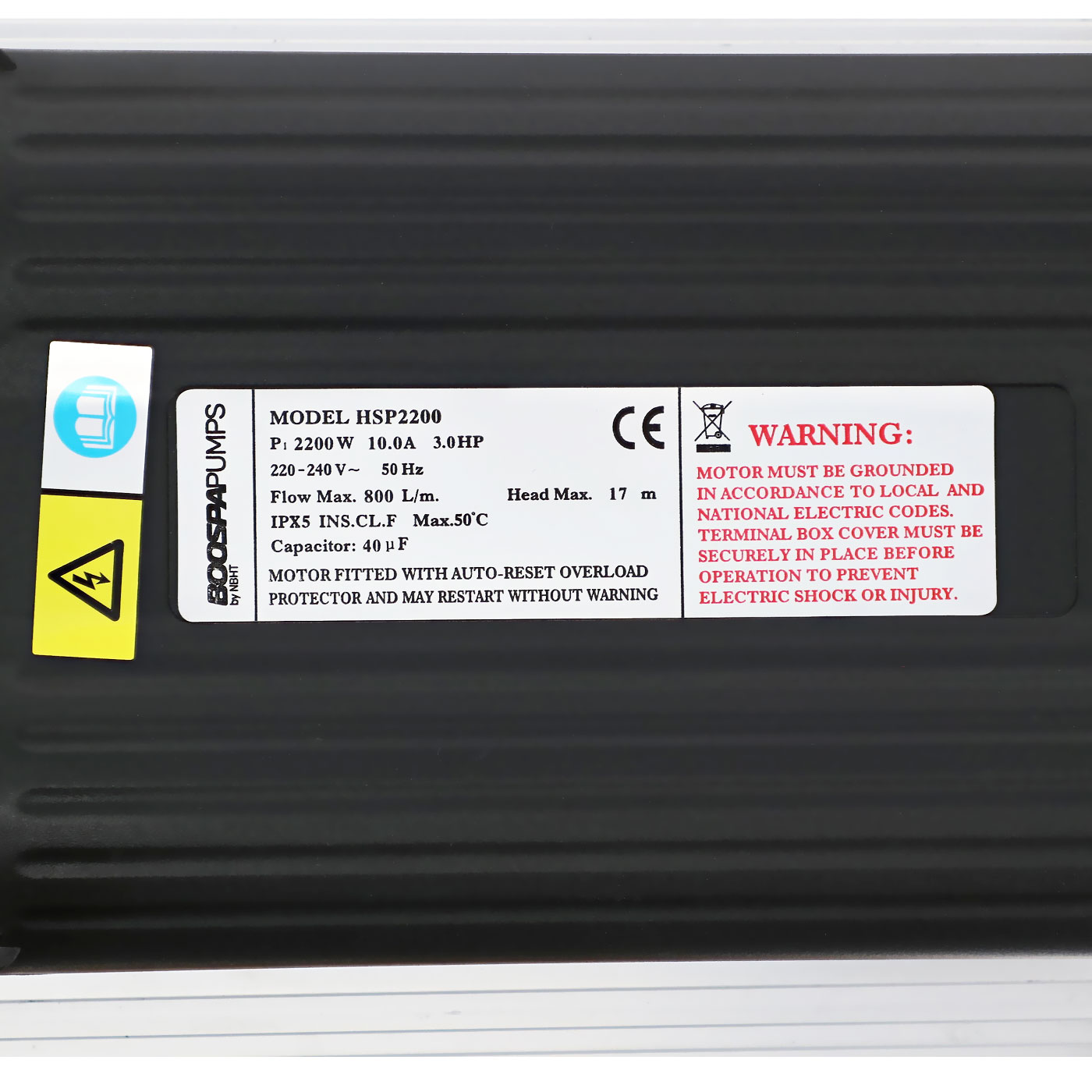

Spa Pump Boospa Pumps HSP2200 - 3HP - 2200W - Single-Speed

Name: Spa Pump Boospa Pumps HSP2200 - 3HP - 2200W - Single-Speed
Brand: BOOSPA PUMP
SKU: A-000000-09908
Price: 204 EUR
Availability: InStock
Rating: 4.22 (18 reviews)

Power: 3HP - 2200W - 800 L/min - Single-speed

2 fittings for 2" pipes included (60mm outer diameter)

Outer thread diameter (Suction - Discharge): 78 mm

Perfect replacement for the massage pump LP300 - LX and the J300 pump from RIPTIDE

204,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

HSP2200 Massage Pump

Direct replacement for the LP300 - LX and RIPTIDE J300 massage pumps

The pump connects to a 2" plumbing (outer diameter: 60mm)

Features:

Power: 3HP (2.2kW)
Single-speed pump
Maximum flow rate: 800L/min
Outer thread diameter:
- Suction: 78mm
- Discharge: 78mm
Motor protection
IPX5 manufacturing

Dimensions:

Length: 395mm
Width: 208mm
Height: 246mm

Boospa Pumps Compatibility

Performance Diagram

Plumbing Connection

Supplied with two 2" outlet fittings (78mm thread)
You can also reuse your old plumbing fittings if they are still functional.
If your plumbing differs, check our Fittings and Unions range to find the fitting that matches your plumbing

The pump body is adjustable to fit your plumbing. You can have the discharge on the left or right based on your installation. To do this, simply unscrew the 4 motor screws to turn the pump body in the desired direction. Then, reposition the screws securely.

Electrical Connection

The pump comes with an AMP cable.

You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Spa Cables and Plugs section

Here are the most commonly used Plugs in the Spa world:


AMP Plug	J&J Plug ( PIN positions vary depending on the device)

Exploded View of HSP Series Pump

hsp series exploded view

1 to 10 - Pump Body:

11 to 41 - Electric Motor

1- Screw

2- Elastic washer

3- Flat washer

4- Drain plug

5- O-Ring

6- Front flange

7- O-Ring

8- Impeller
9- Mechanical Seal
10- Rear flange

11- Counter-hydrosphere

12- Front cover

13- Screw

14-17- Bearing

15- Rotation shaft

16- Rotor

18- Stator

19- Chassis

20- Flat washer

21- Back cover

22- Screw

23- Flat washer

24- Elastic washer

25- Fan

26- Shaft Card

27- Fan cover

28- Screw

29- Sleeve

30- Electrical block

31- Nut

32- Nut

33- Electric cord

34- Nozzle

35- Air switch
36- Screw
37- Capacitor
38- Line pressing fast
39- Screw
40- Electric block cover
41- Screw

Technical documentation

Download data sheet
