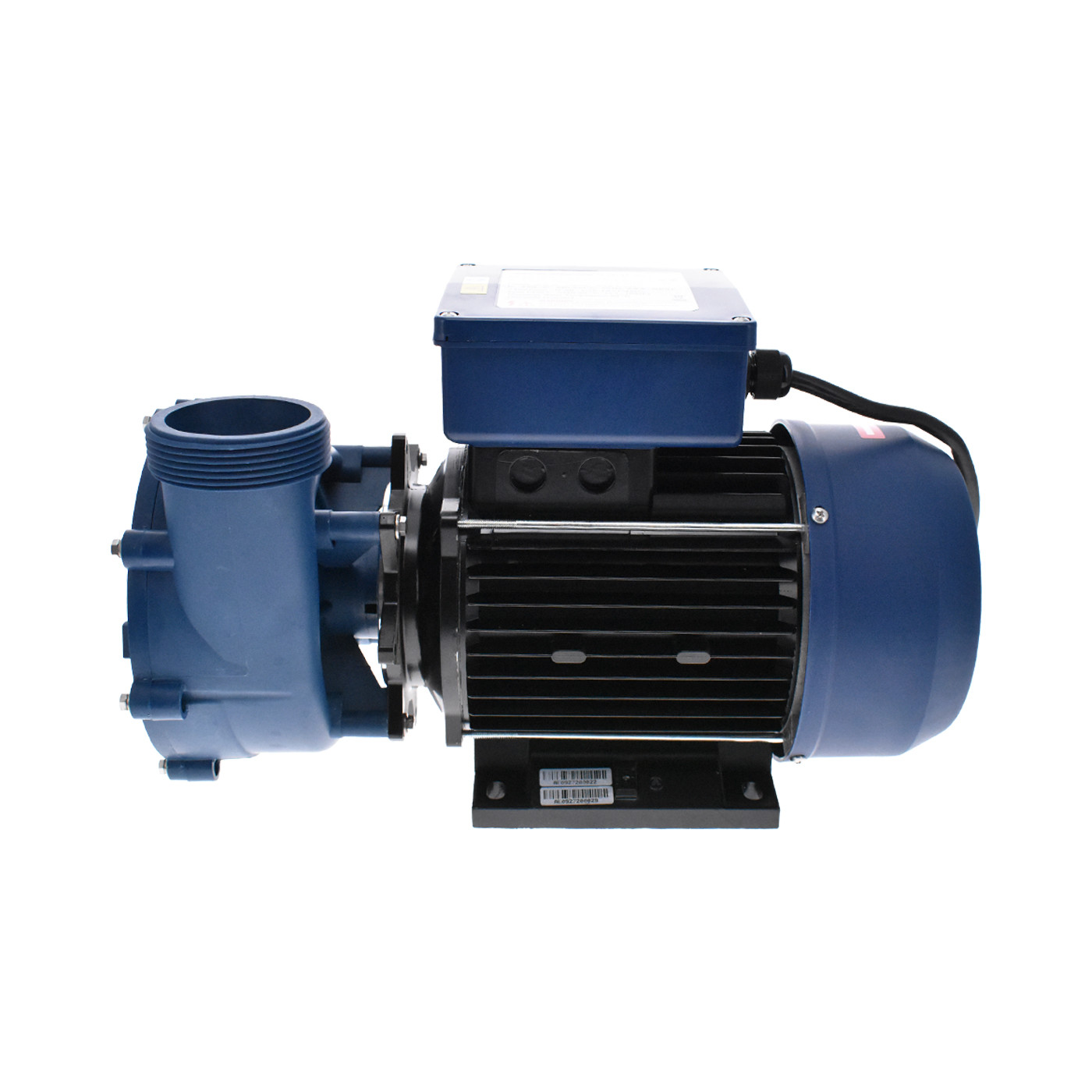

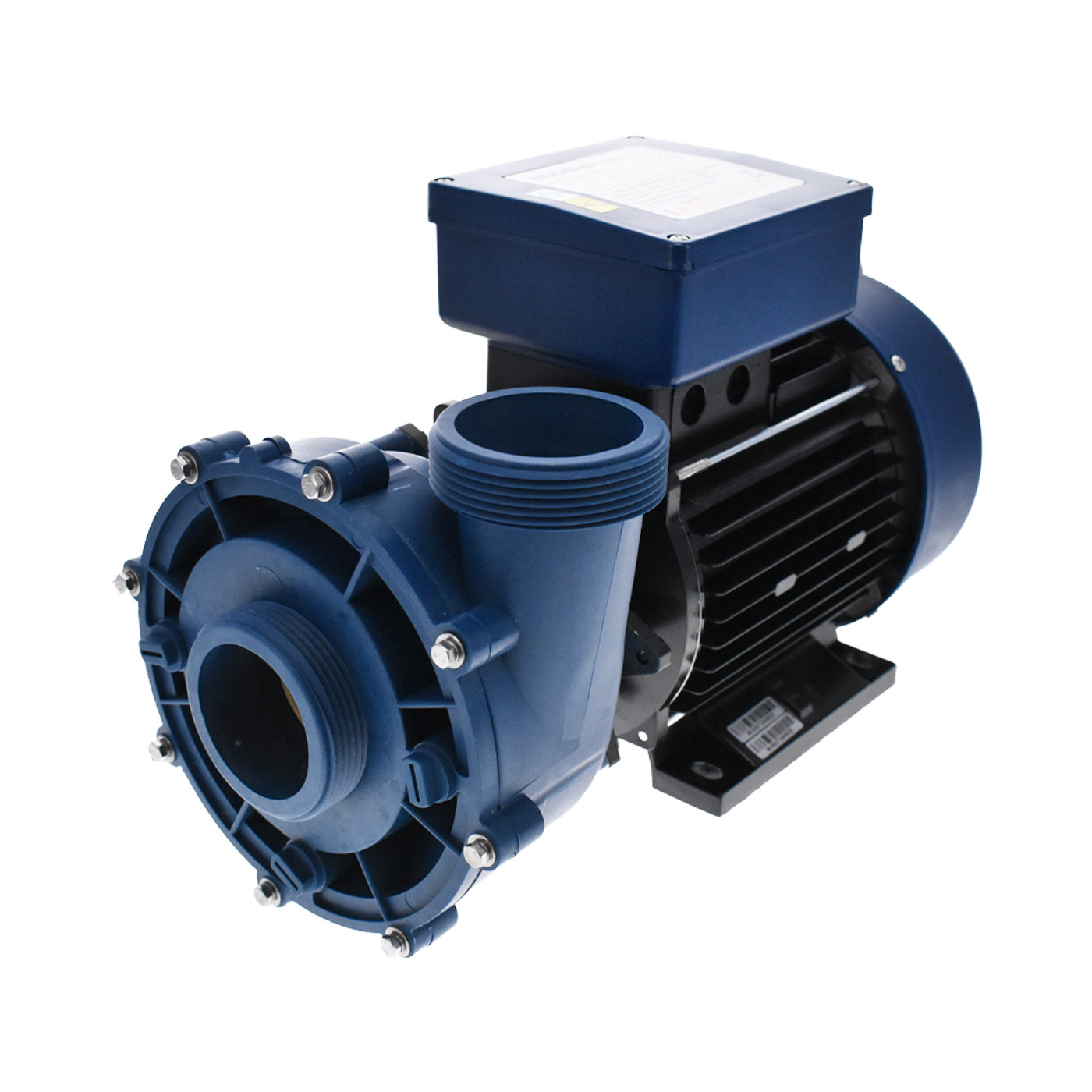

Direct replacement for the massage pump WP300II - LX
Aluminum motor frame - MEC90
Central suction (outer thread diameter: 78mm)
Side discharge (outer thread diameter: 78mm)
IPX5 protection
Reduced vibration (4 included silent blocks)
High-quality mechanical seal highly resistant to spa chemicals
Do not exceed an outdoor temperature of 50°C
This pump can also be used as a filtration pump due to its 2 speeds
Technical Diagrams

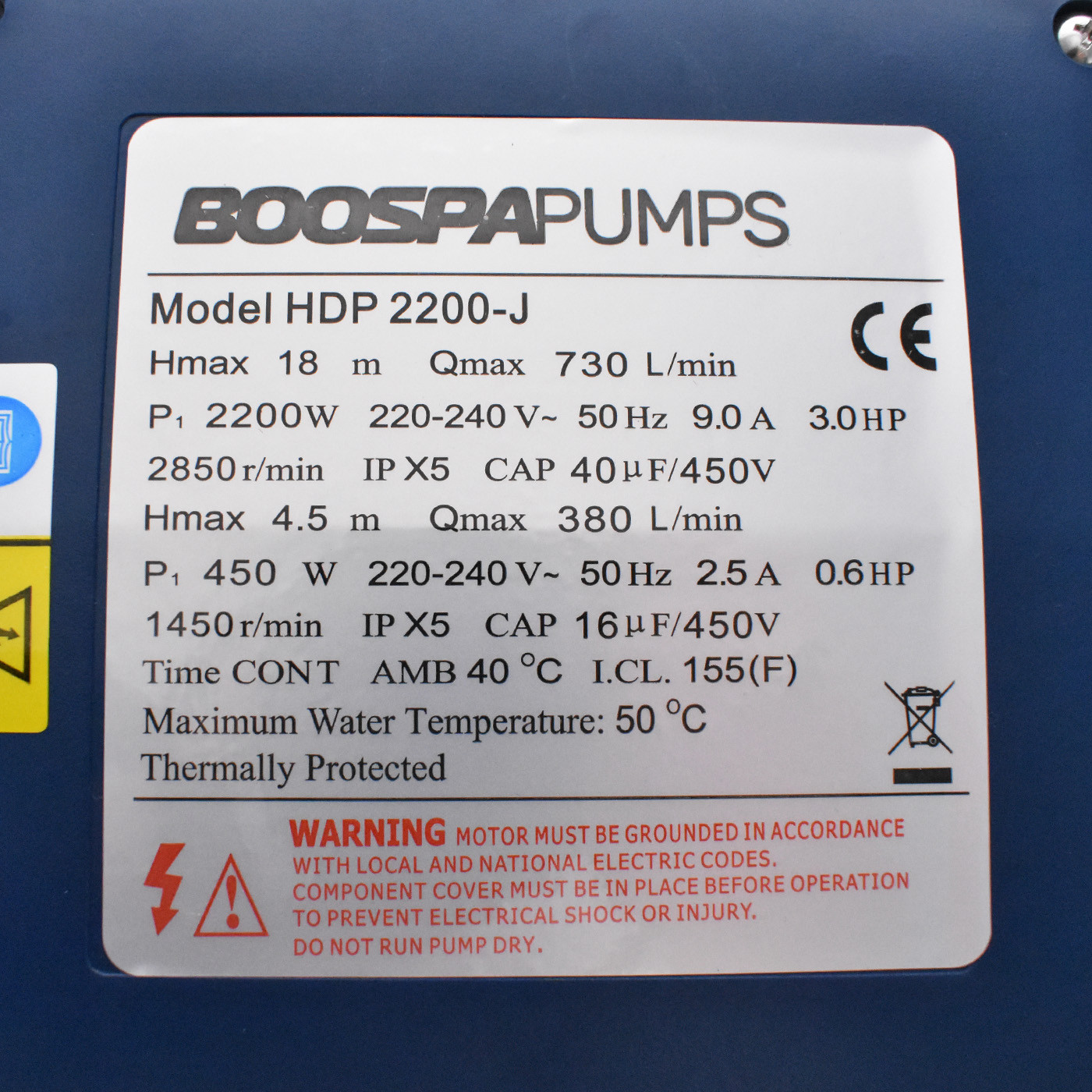

Features of all pumps in the HDP series:
Model
Power
V/Hz
Qmax (L/min)
Hmax (m)
Outer Diameter of Pipes
Pump Weight
Packaging Dimensions
HDP1500
1500W/2.0HP
220-240V/50Hz
640
13
60mm (2 inches)
13
440 x 225 x 260.5
Pipe Connection
Supplied with 2 fittings for 2" pipes (60 mm outer diameter) You can also reuse your old pipe fittings if they are still functional. If your piping differs, check our Fittings and Unions range to find the suitable fitting for your piping.
