24H Filtration Pump, widely used by many spa manufacturers.
EMG electric motor, known for its silence and reliability.

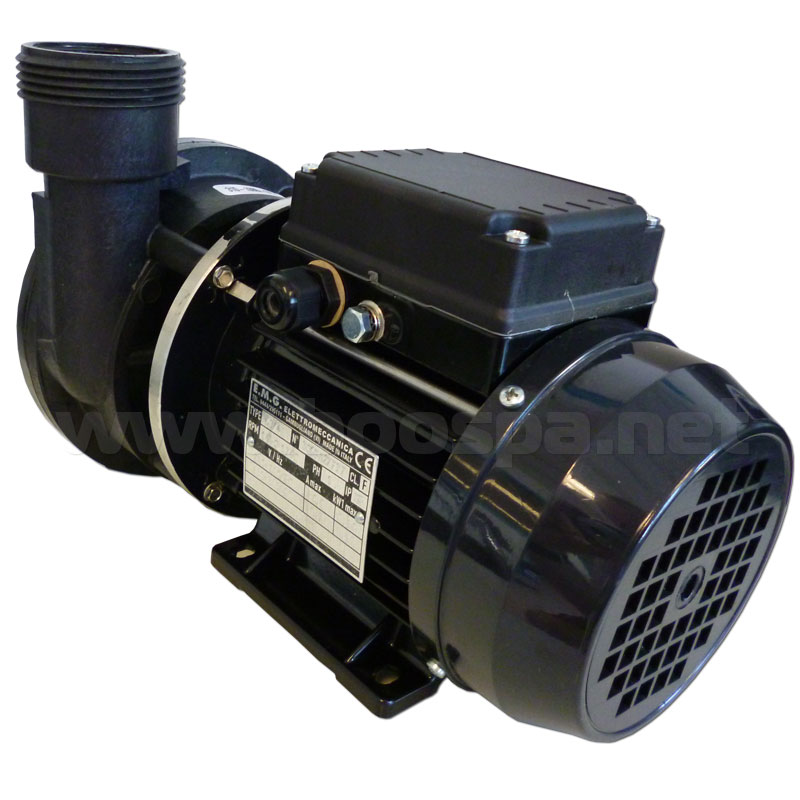

Filtration pump for Iron Might CP 1/8 - 1N22A spa
1/8 HP - 230V - 60 Hz
190 liters per minute
- Pump manufactured by the renowned brand Waterway (USA)
- 24/7 circulation for continuously pure and filtered water
- 48 frame (9.2 cm) EMG motor (made in Italy)
- Water discharge on one side for optimal flow
- Low electrical consumption of only 1.3 Amps
- Watertight seals
- Pump body can be oriented horizontally or vertically
This model replaces the old version that was yellow in color.
Waterway References
Complete pump: 3410020-1E
Pump body: 310-1000-SL

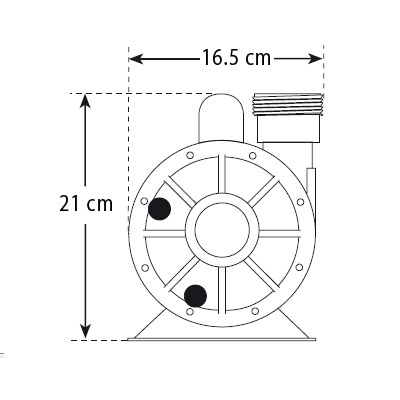

Technical Diagrams
Pipe Connection
Connection in 1.5" (48mm) Delivered without outlet fittings You can also reuse your old pipe fittings if they are still functional.
If your piping differs, check our range of
Pump Unions and Fittings to find the fitting that matches your piping
The pump body is adjustable to fit your piping. You can then have water discharge on the left or right according to your installation. Simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then, replace the screws.
Electrical Connection
The pump is supplied without a connection cable. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our
Spa Cables and Plugs section
Here are the most commonly used Plugs in the Spa world: |  |
| AMP Plug | J&J Plug
( PIN positions vary depending on the device) |
