Product is no longer manufactured

ESPA

Ref : A-000000-03318

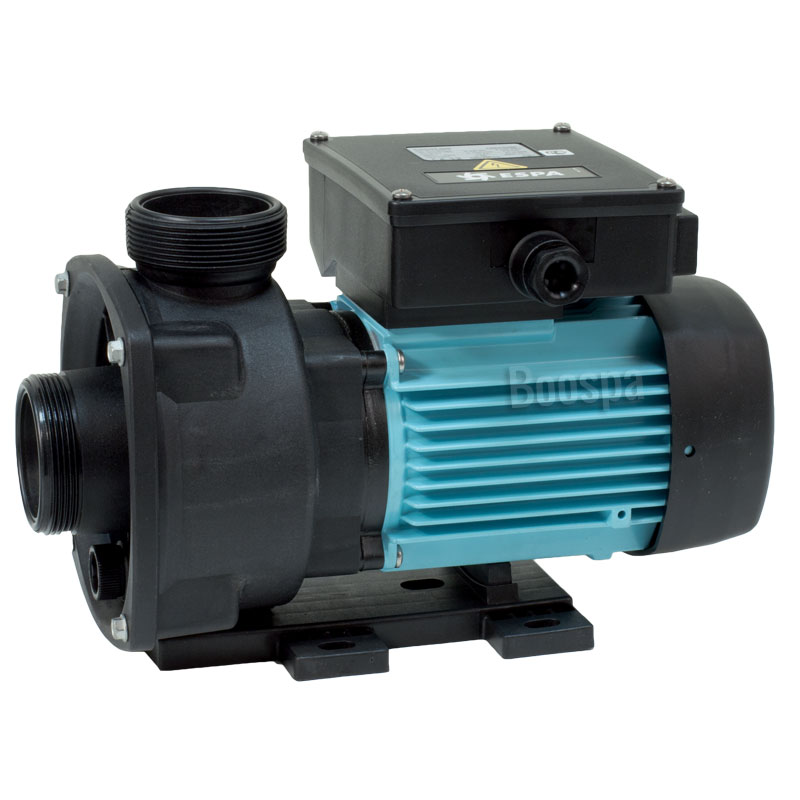

Pump PISCIS3 70M - 0.75 HP

Name: Pump PISCIS3 70M - 0.75 HP
Brand: ESPA
SKU: A-000000-03318
Price: 390 EUR
Availability: InStock

Spa pump Model PISCIS3 70M 0.75HP by ESPA
Single speed
Power 0.75 HP equivalent to 0.5 Kw
Replaces the WIPER0 pump PP04205

Final break

See replacement products

Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

ESPAs PISCIS3 0.75HP Pump
0.75HP Spa Massage Pump
Single speed
Power 0.75 HP equivalent to 0.5 Kw
Maximum flow rate of 320 liters per minute

Pump body and removable foot in fiberglass-reinforced polypropylene
1.5" (48 mm) suction and discharge diameter for increased performance and reduced noise
Fiberglass-reinforced Noryl impeller
Stainless steel motor shaft. AISI 420
Equipped with a capacitor (Allows pump ignition/triggering)
Material suitable for spas and pools

Replaces WIPER0 PP04205 pump

Model	Max Flow (Q) in l/min	Hmax (m)	Power kW	Power HP	Weight (kg)
PISCIS3 50M	260	11	0.37	0.5 HP	7
PISCIS3 70M	320	12	0.50	0.75 HP	7

Technical Diagrams

Pipe Connection

Supplied with 1.5" (48 mm internal) outlet fittings
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our Pump Unions and Fittings range to find the fitting that matches your piping

The pump body is adjustable to fit your piping. You can then have a left or right discharge based on your installation. To do this, simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws.

Electrical Connection

The pump is supplied without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section

Here are the most commonly used Plugs in the Spa world:


Amp Plug	J&J Plug ( PIN position varies depending on the device)

Technical documentation

Download data sheet
