Small circulation pump? Yes, but very effective.
Spas equipped with Aqua-Flo pumps from Gecko ensure maximum performance in hydrotherapy and energy efficiency. Aqua-Flo reliability from Gecko guarantees unparalleled lifespan.
One of the best pumps on the market
The new Aqua-Flo Circ-Master pump brings a whole new dimension to continuous filtration (24 hours), offering a higher flow rate compared to any other pump on the market. This increased flow rate allows the Circ-Master pump to operate a high-flow heating system, resulting in increased thermal efficiency and up to 4 times more filtration.
Technical specifications

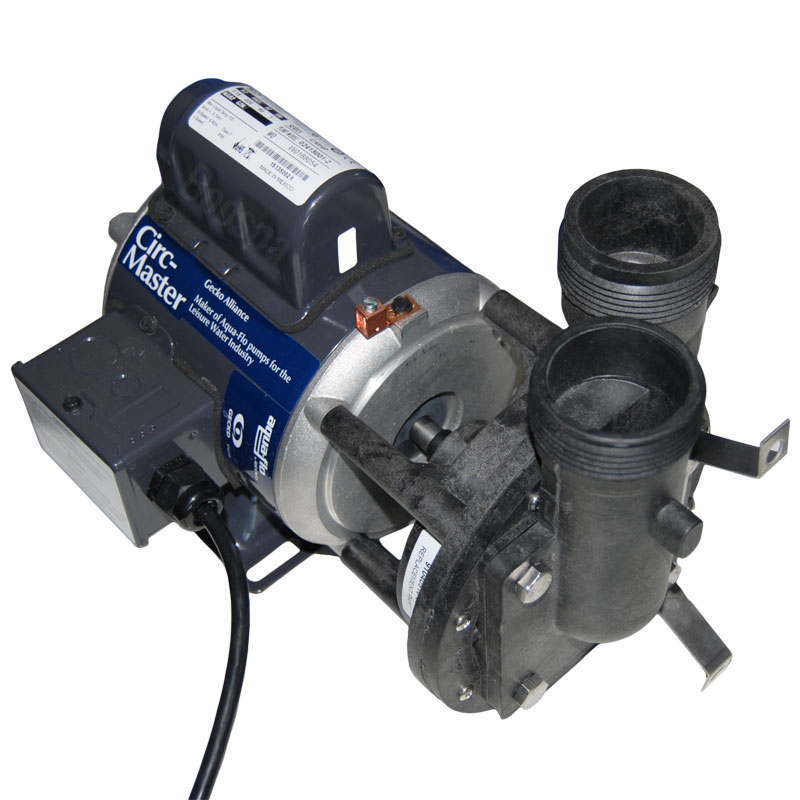

Spa filtration pump
Aqua Flo Circ Master
1/15 HP (3/4HP) - 150 liters per minute
3 available models:
- CMHP (side discharge): 02420014-2010 (Former reference: 02415001-CMHP)
- CMCP (axial discharge): 02920006-2010
- FMVP (pivot plate discharge): 02415001-2
Technical diagrams
Pipe connection
1.5" inlet and outlet (48mm interior)
Delivered without fittings You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of
Fittings and Unions to find the fitting that matches your piping
The pump body is adjustable to fit your piping. You can then have a left or right discharge based on your installation. Simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then, replace the screws in place.
Electrical connection
The pump is delivered without a connection cable. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our
Cables and Plugs for Spas section
Here are the most commonly used Plugs in the Spa world: |  |
| AMP Plug | J&J Plug
(PIN positions vary depending on the device) |
