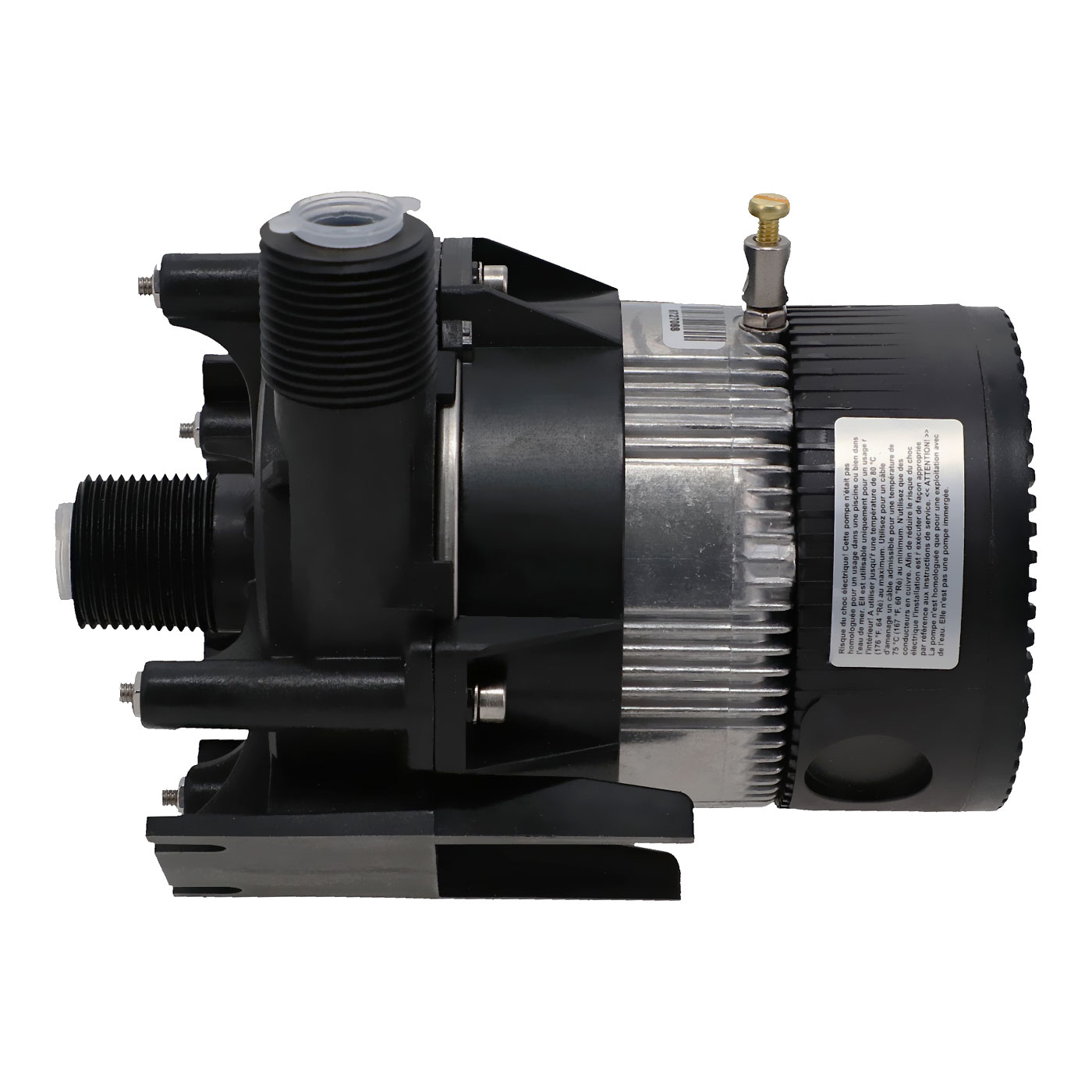

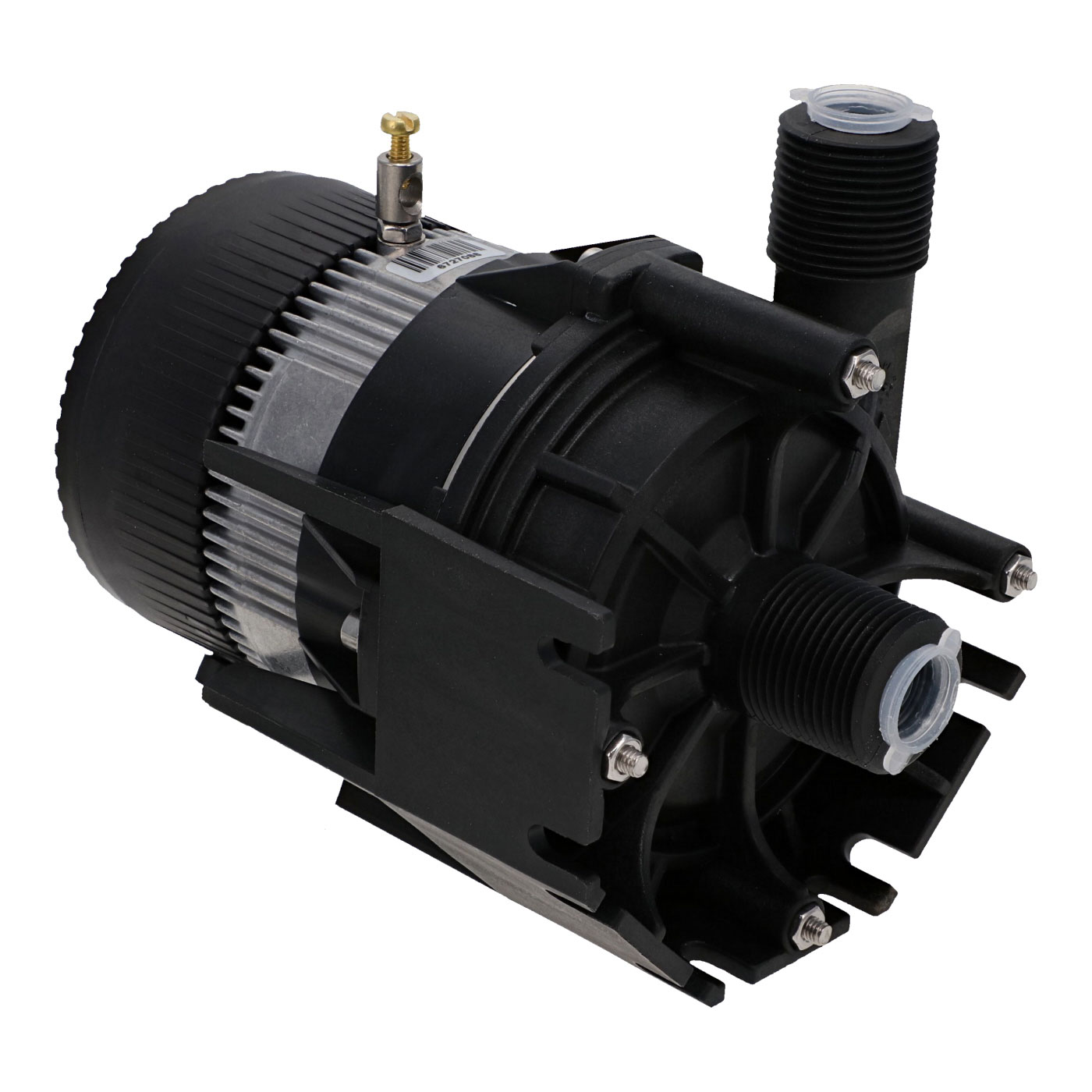

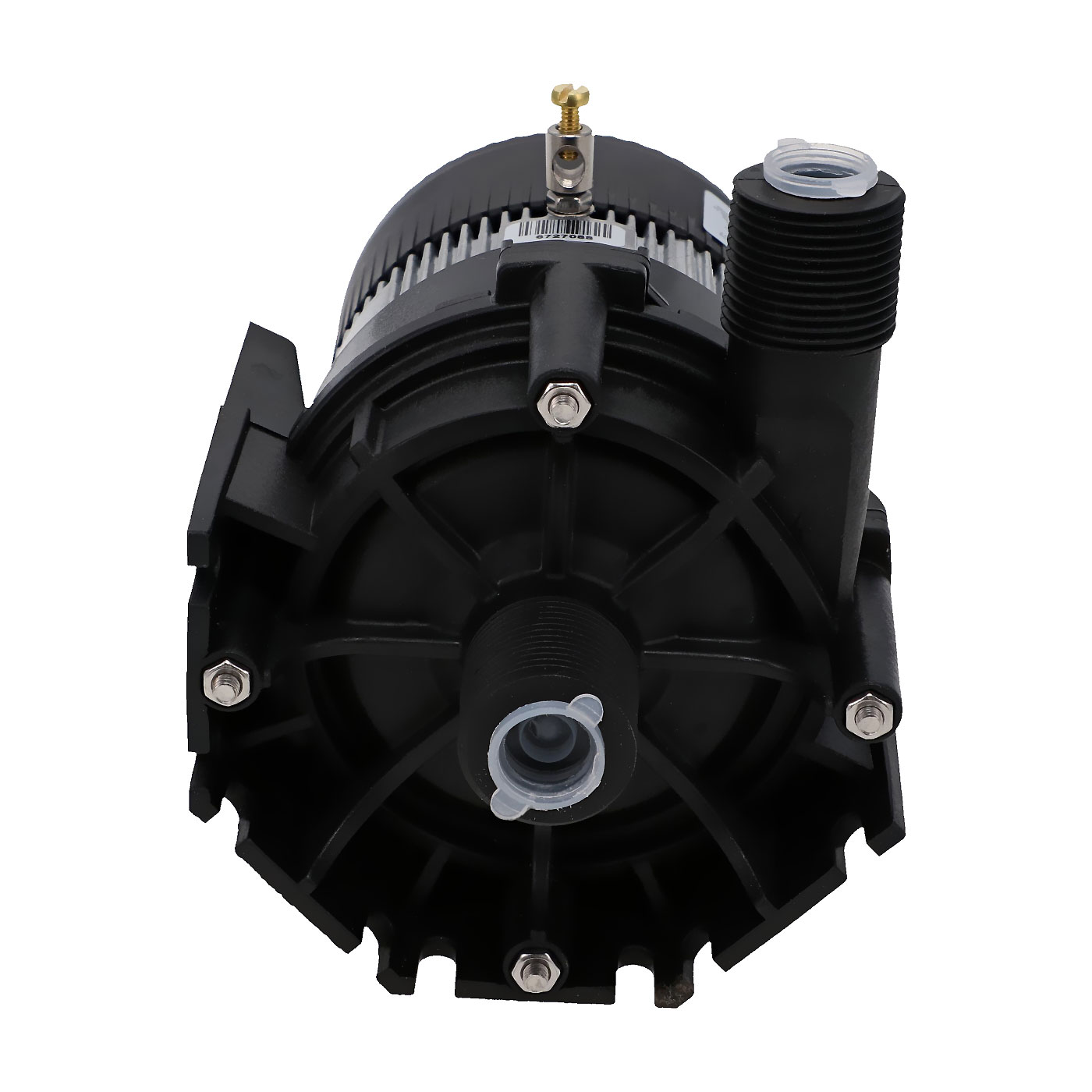

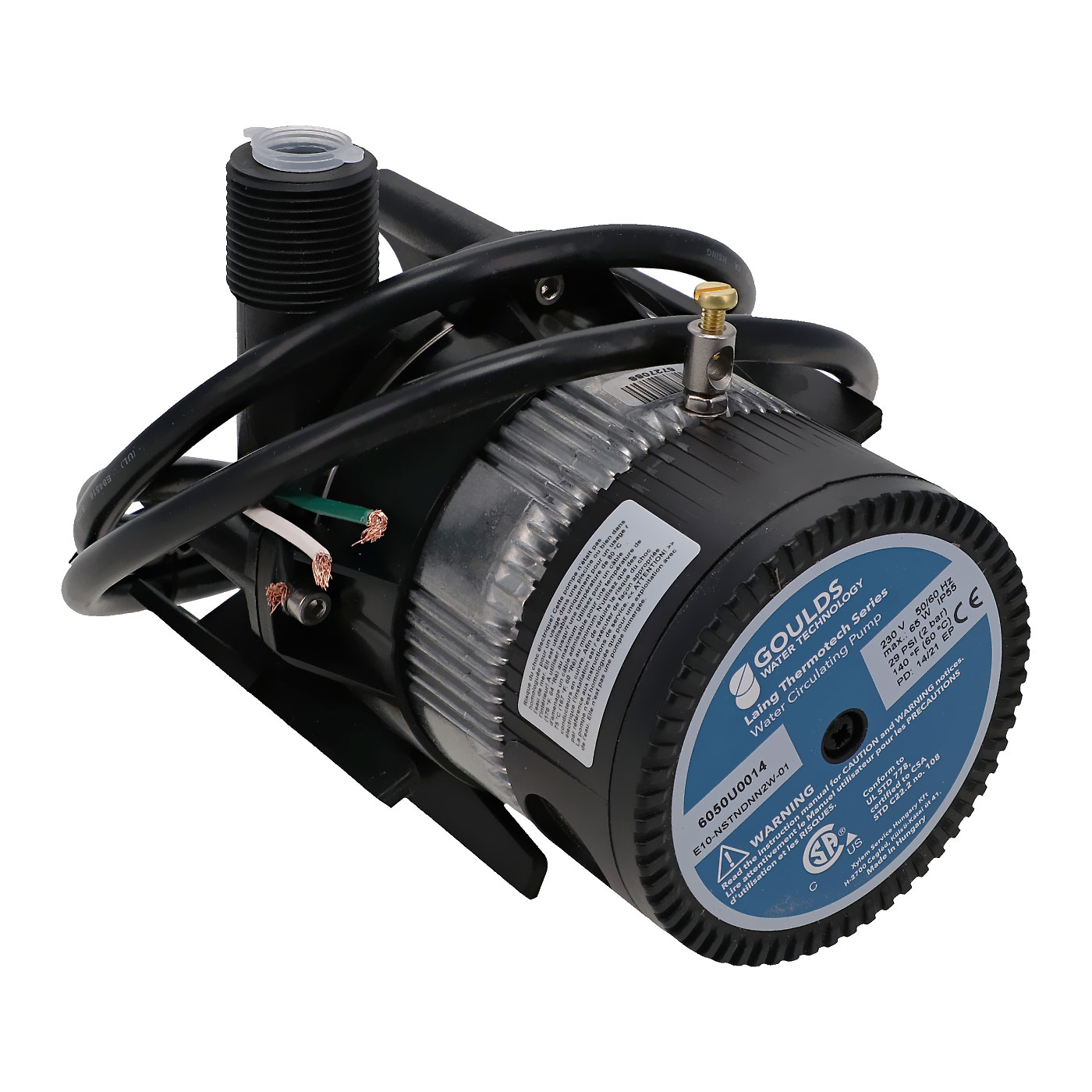

24 / 24H circulation pump Laing E10
1 / 15HP - 60W
220 - 230V 60 / 50Hz
ECM system (electromagnetic)
Suction and discharge threaded 27 mm (3/4") in diameter
To be connected with clamps and flexible tubing
- Electromagnetic circulation pump (increased service life and greatly reduced noise)
- Can operate 24 hours a day without damaging the engine
- Quietest pump on the market (Designed for optimal performance and flow almost noise-free)
- Works without capacitor
- Thermal overheating detector to preserve and increase engine life
- Material suitable for spas and swimming pools
- Very compact
Template
| Max flow (Q) in l / min
| Hmax (m)
| Power kW
| Power HP
| L
| H
| l
| Weight (kg)
| Bearing speed (RPM)
|
E10
| 158
| 13
| 0.06
| 1/15 HP
| 106
| 125
| 150
| 1.6Kg
| 3100 r / min
|
Technical drawings
Pipe connection
To be connected with clamps and flexible pipes
You can also reuse your old pipe fittings if they are still functional.
If your pipe differs, access our range
Union and Fittings in order to find the corresponding fitting to your piping, with clamping clamps in particular.
Electrical connection

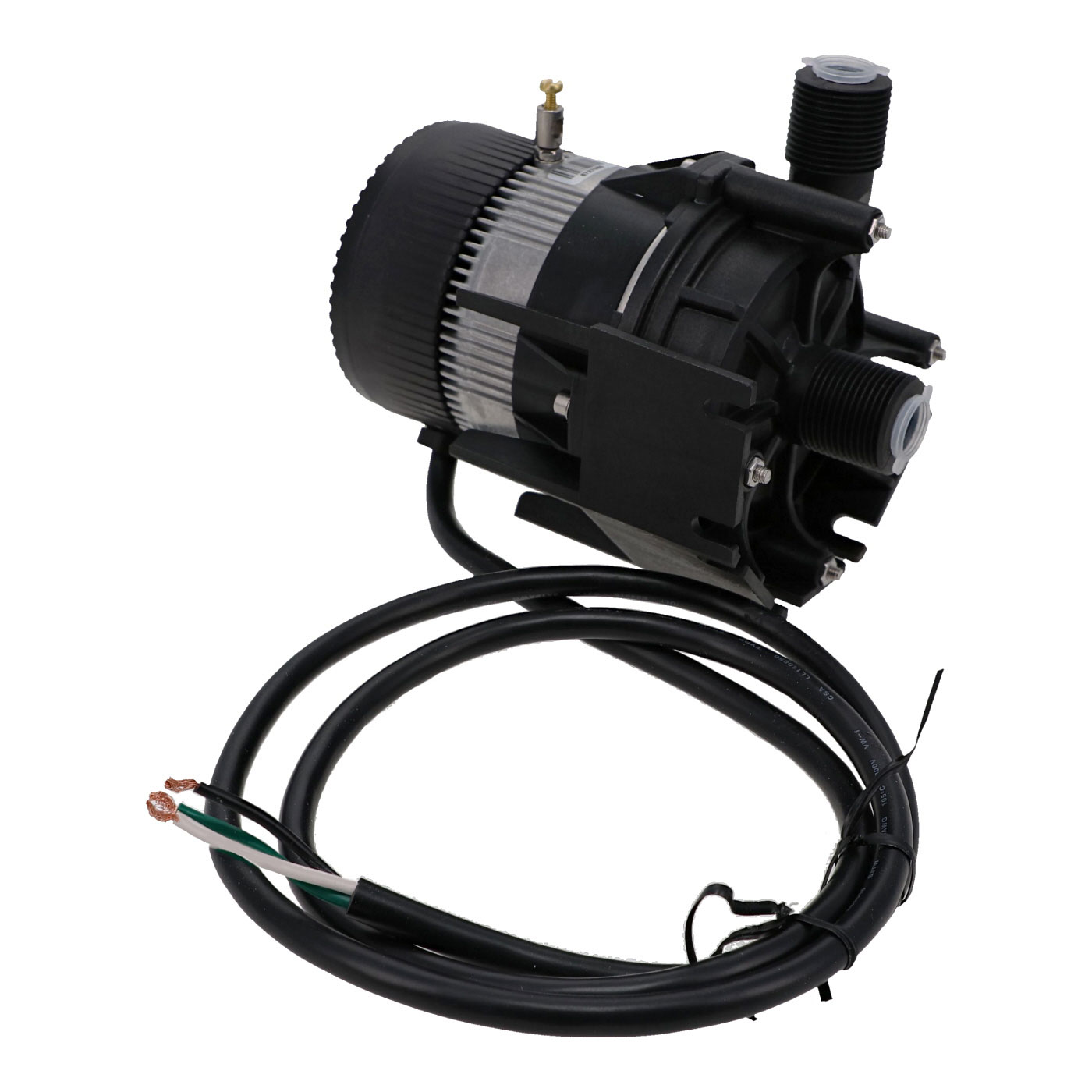

The pump is delivered with a 1 m connection cable without plug. You can keep your old cable in order to connect this new pump. If your outlet is no longer usable you can opt for new outlets in our section
Cables and plugs for Spa Here are the most used outlets in the spa world :
| |
AMP plug | J&J socket (the position of the PIN varies depending on the device)
|
