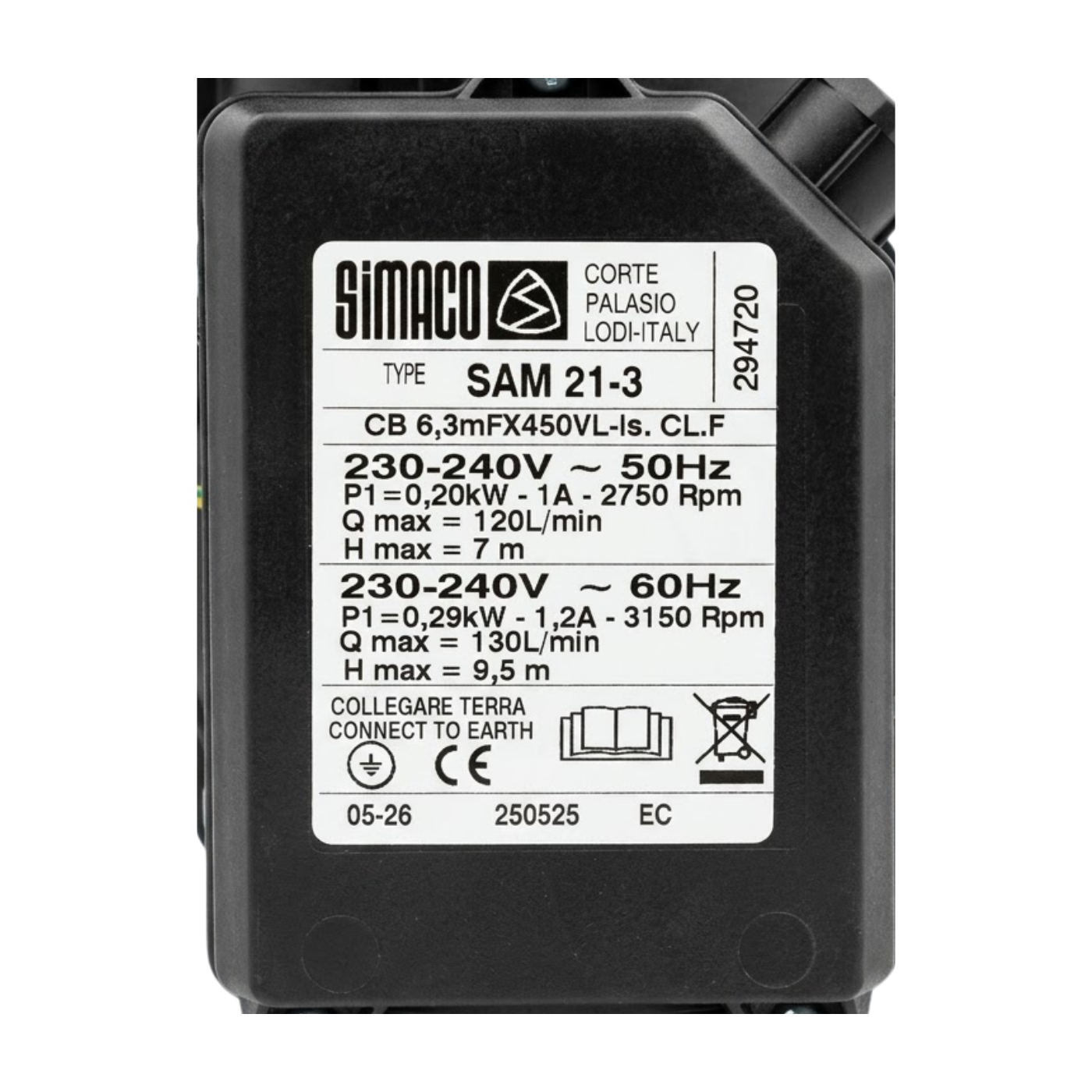

Simaco SAM21-3 Spa Pump - 0.18 kW - Single Speed
| Product | Circulation pump |
| Brand | Simaco |
| Reference | SAM21-3 |
| Typology | Single speed |
| Power | 200 W (0.18 kW) |
| Current | 1.0 A |
| Rotation speed | 2900 rpm |
| Maximum flow rate | 120 liters/minute |
| Maximum discharge height | 7 meters |
| Length (without fittings) | 217 mm |
| Width (without fittings) | 121 mm |
| Height (without fittings) | 145 mm |
| Outlets | 1" |
| Suction/discharge connection | Male threaded end piece Ø outer 31 mm |
| Thread pitch | MPT Ø 33 mm |
| Pump body orientation | 4 positions (top, bottom, left, right) |
| Replacement | Simaco SAM20-2 |
| Identical pump body | Simaco SAM20-3 |
| Spa compatibility | Teuco, .. |
The Simaco SAM21-3 circulation pump is an ultra-compact single-speed pump of 200 W. Its pump body can be oriented in four positions to facilitate installation. It is an identical replacement for the Simaco SAM20-2 and has the same pump body as the SAM20-3.
Compatibility and Pre-Purchase Checks
Verify the reference of your current pump as well as the dimensions and connections of your installation. This pump is an identical replacement for the Simaco SAM20-2 and this series of pumps was notably installed in certain Italian-made Teuco spas.
Installation / Replacement
Disconnect the spa's electrical supply before any intervention. The pump body can be positioned in the top, bottom, left, or right orientation to adapt to your existing installation.
What You Receive

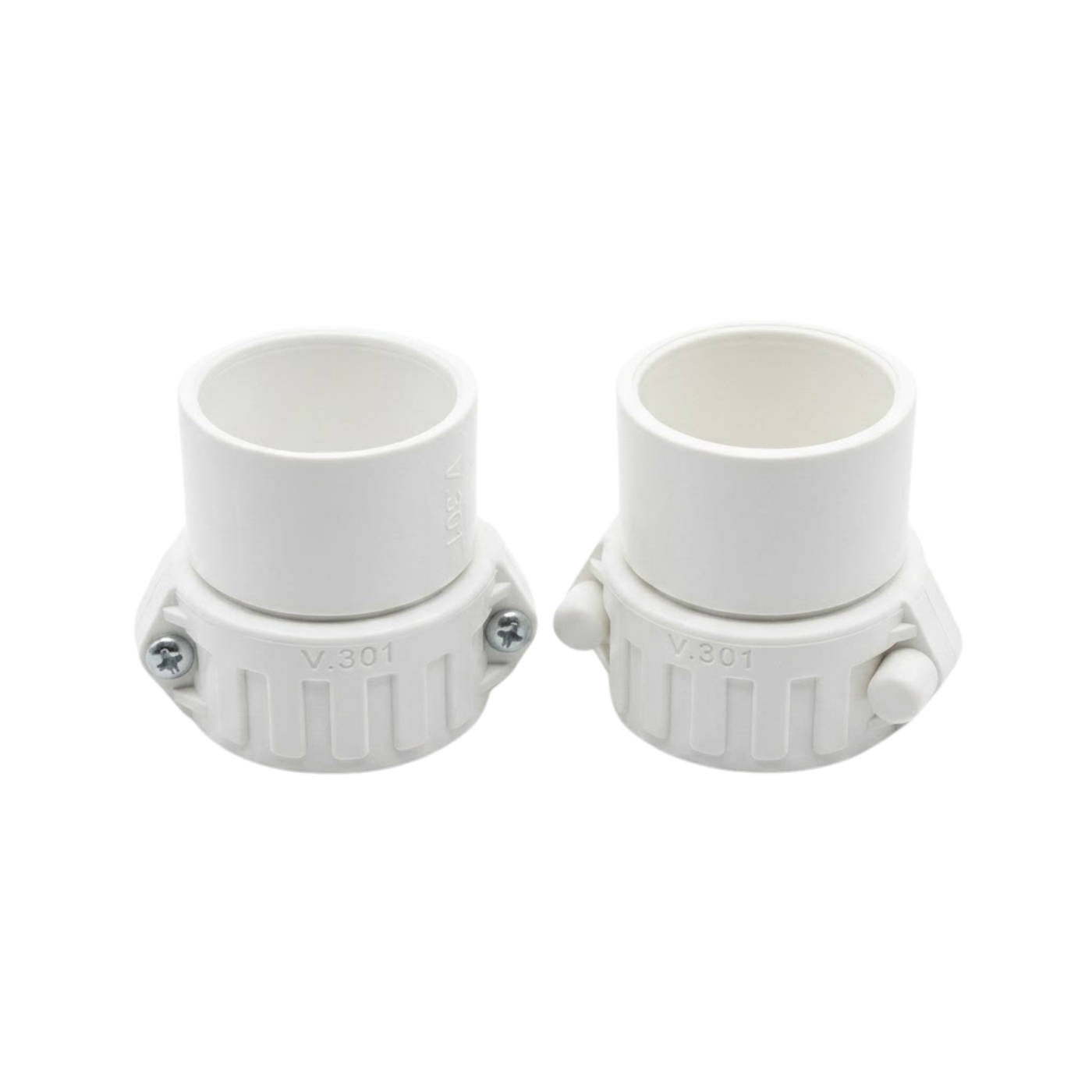

You will receive a Simaco SAM21-3 circulation pump with its pump unions (ref Simaco: 294533) and its hose joints for 1-inch hoses.
Diagram
Frequently Asked Questions
Does this pump replace a Simaco SAM20-2?
Yes, the Simaco SAM21-3 is an identical replacement for the Simaco SAM20-2 pump. It is recommended to check the reference on your equipment before ordering.
Is the pump body adjustable?
Yes, the pump body can be positioned in four different orientations: top, bottom, left, or right. This feature facilitates adapting the pump to different installation configurations.
What are the connections for this pump?
The pump has 1-inch outlets. The suction and discharge are equipped with male threaded ends with an outer diameter of 31 mm and an MPT thread pitch of 33 mm.
What is the maximum flow rate of this pump?
The maximum flow rate is stated as 120 liters per minute. The maximum discharge height is 7 meters.
Is the pump supplied with fittings?
Yes, the pump comes with its pump unions and hose joints for 1-inch hoses. However, verify compatibility with your installation before replacement.
Are spare parts available for this pump?
Yes, several spare parts are available for this pump, including the impeller: ref Simaco 384583, the mechanical seal: ref Simaco: 386005, and the fan blade: ref Simaco: 220310. Check your pump's reference before ordering a replacement part.
