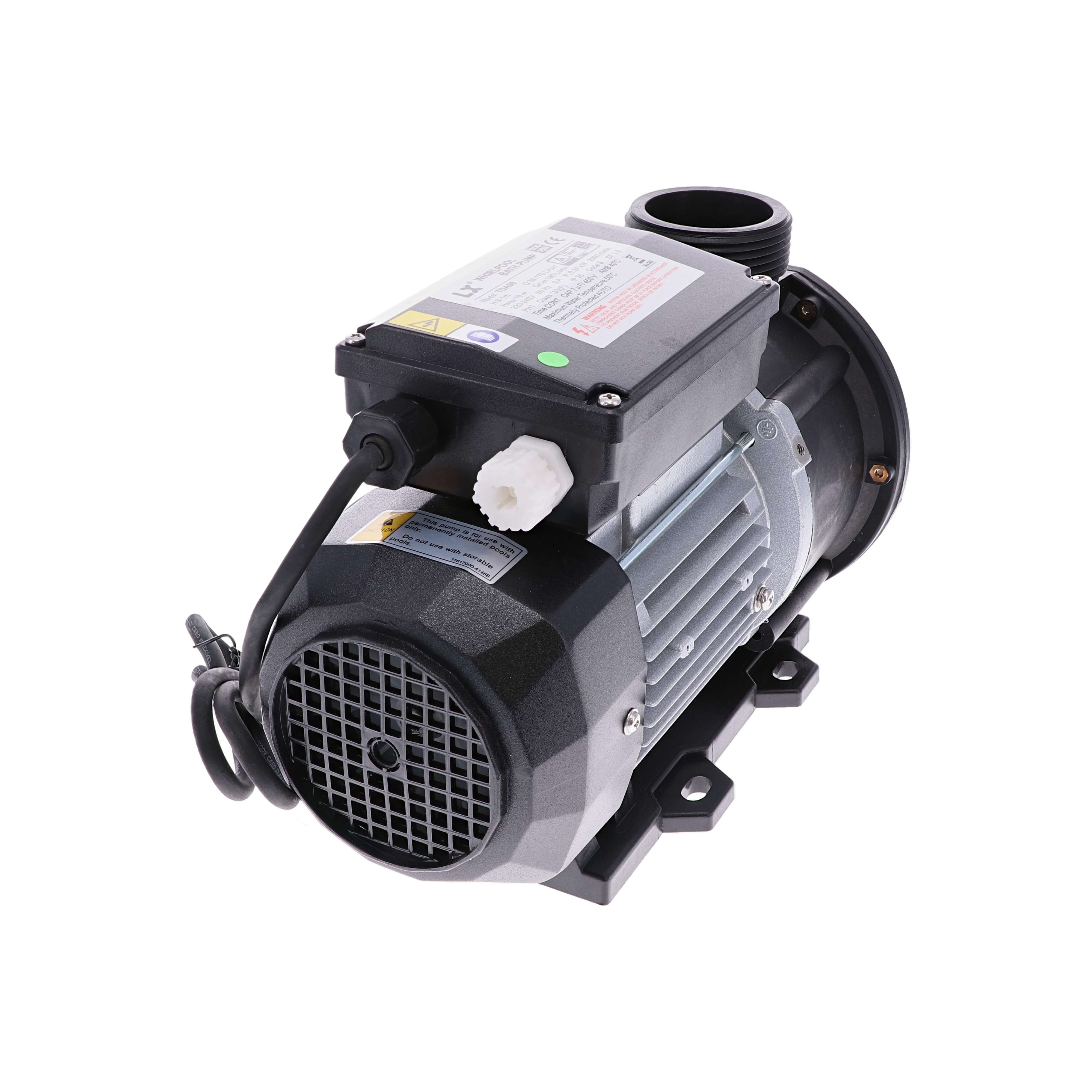

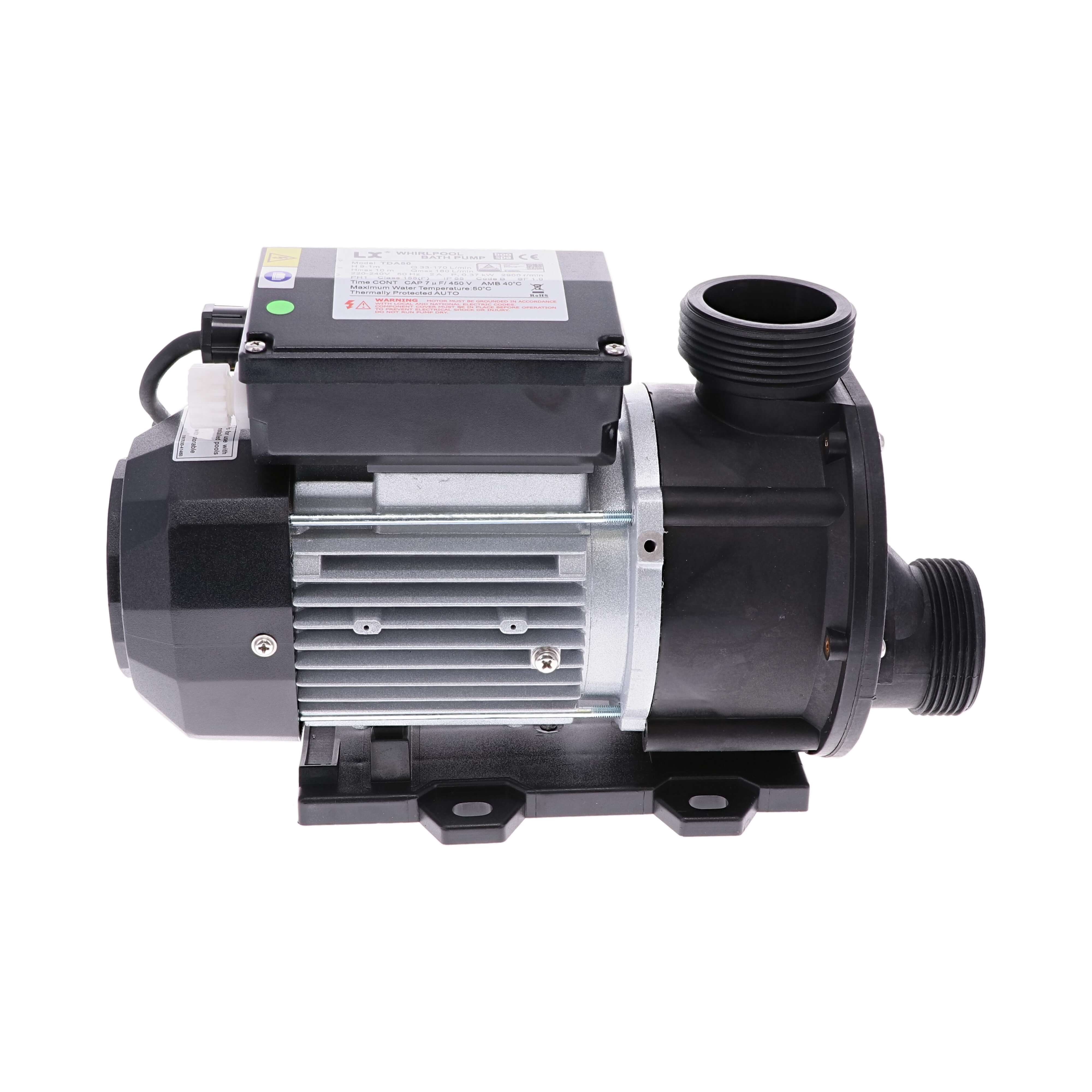

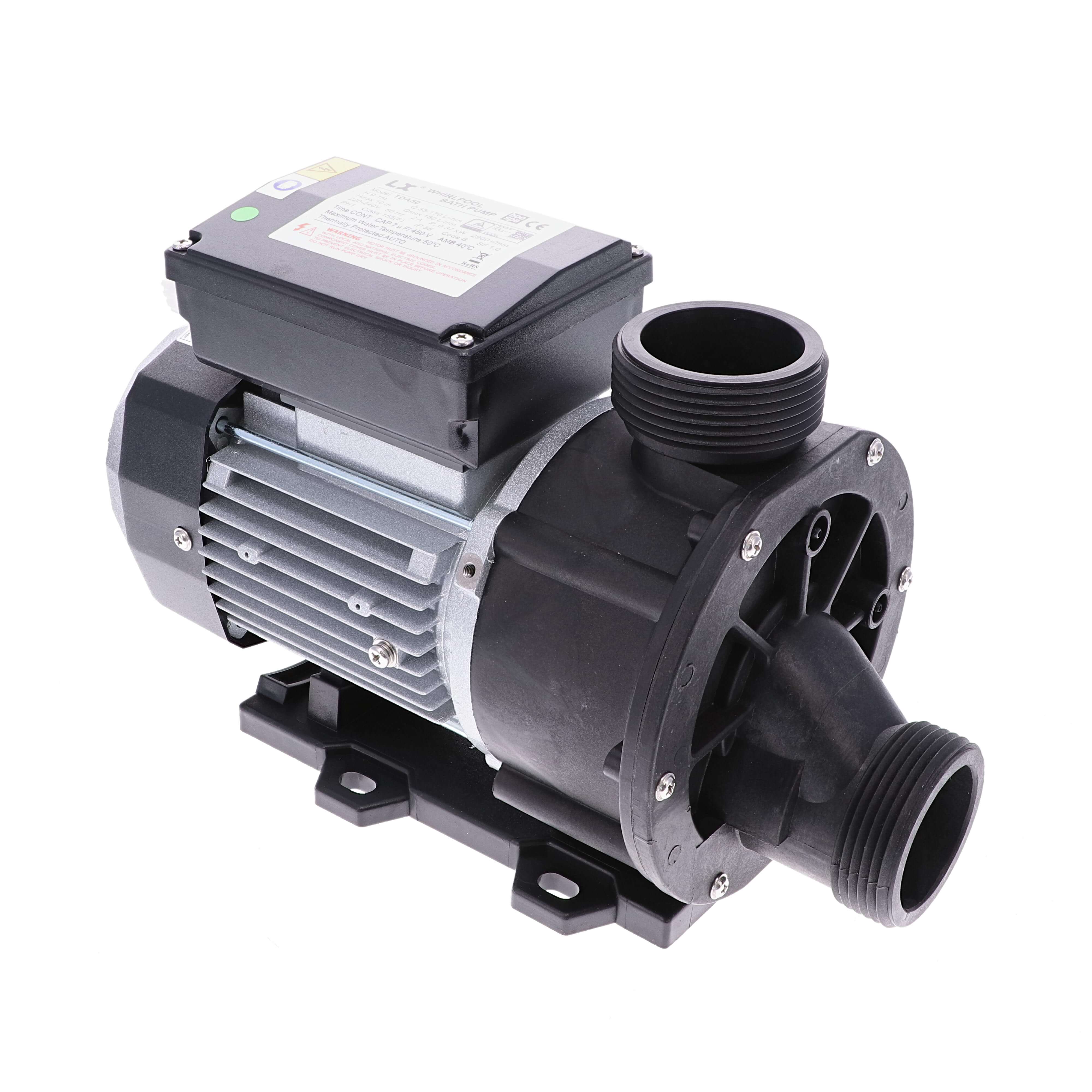

Spa pump LX Whirlpool TDA100 1 HP - 750 watts

Name: Spa pump LX Whirlpool TDA100 1 HP - 750 watts
Brand: LX
SKU: A-000000-0g609
Price: 149 EUR
Availability: InStock
Rating: 5 (1 reviews)

Power: 1 HP - 750 watts
Max flow rate: 300 liters/min
Connection to 1.5" (48mm) piping + connection cable and AMP plug provided

Check compatibility with my SPA model

149,00 €

In Stock

Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

LX Whirlpool TDA100 1 HP Spa Pump - 750 watts

SPECIAL OFFER: Don't wait, you will receive a TDA120 instead of your TDA100!
Same dimensions, same footprint, same connections, more power

Filtration pump
1HP - 750 watts - 300 liters / min
Aluminum motor chassis
Low suction
Single-phase pump with thermal overload protection.
IP55 protection
Average operating temperature: 5-50°C
Do not exceed an external temperature of 50°C
Possibility to connect a pneumatic button for spas without electronic control unit.
Designed for optimal performance and flow
IPX5 sealing standard
Thermal overheating detector to preserve and extend the motor's lifespan
Equipped with a pneumatic switch (Allows pump activation / triggering)
Accredited by European and American standards
Equipment suitable for spas

Technical Diagrams

Model	Power (HP)	Power (W)	Max Flow (l/min)	Max Head (m)
TDA35	0.35	250	150	7.5
TDA50	0.5	370	180	10
TDA75	0.75	550	250	12
TDA100	1	750	300	12
TDA120	1.2	900	335	13
TDA150	1.5	1100	380	16
TDA200	2	1500	450	16

Performance Index LX Whirlpool TDA Series Pumps

Model	A	B	C	D	E	F	L	H	H1	H2
TDA35	100	153	88	100	53	89	317	195	188	83
TDA50	100	153	88	100	53	89	317	195	188	83
TDA75	124	156	120	106	60	86	347	205	195	90
TDA100	124	156	120	106	60	86	347	205	195	90
TDA120	124	156	120	106	60	86	347	205	195	90
TDA150	124	186	120	127	54	120	402	218	217	96
TDA200	124	186	120	127	54	120	402	218	217	96

1-2-3 : 1.5" Pump Union
4 : Front Flange Screws
5 : Front Flange
6 : Flange gasket
7 : Impeller
- TDA35
- TDA50
- TDA75
- TDA100
- TDA120
- TDA150
- TDA200
8 : Mechanical seal ( Seal kit )
9 : Rear Flange
10 : Electric motor
11 : Pump support

(4-5-6-7-8-9) : Pump body
- TDA35
- TDA50
- TDA75
- TDA100
- TDA120
- TDA150
- TDA200

Pipe Connection

Supplied with 1'' 1/2 outlet fittings (48 mm inner)
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of Fittings and Union to find the fitting corresponding to your piping

The pump body is adjustable to fit your piping. You can then have a left or right discharge according to your installation. To do this, simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws in place.

Electrical Connection

The pump comes with a connection cable and AMP plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section

Here are the most commonly used Plugs in the Spa world:


AMP Plug	J&J Plug ( PIN position varies depending on the device)

Compatible with

Aquazzi Spas - Blue Lagoon Spas - Jazzi Spas - JNJ Spas - Novaspas - Oceane Spa - Phybris Spas - S&G - Wellis Spas - Wellynn Spas - and many other spas...

This product is compatible with several spa models

Here is a non-exhaustive list of spas with which this article is compatible. If you have any doubt, do not hesitate to contact us. Article made of high quality and solid materials. This model is guaranteed 1 and can replace the original part on the following spas:

Top Compatible models

Spas Aquazzi - Blue Lagoon Spas - Jazzi Spas - JNJ Spas - Novaspas - Oceane Spa - Phybris Spas - S&G - Wellis Spas - Wellynn Spas - and many other spas...

Equivalent products

Related categories

Circulation Pumps

Massage Pumps

Spas Blower

Pumps Pressure Switches

Pump Union Connectors

Fixing plates

10/10

Based on 1 reviews

Anonymous A.

Belle pompe, reçu le modèle 120 sans surcoût (commandé le 100).
