Power: 0.16 HP
Koller Reference: 136-120 WC
Worldwide delivery
Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)
| Feature | Detail |
|---|---|
| Category | Circulation Pump |
| Brand | KOLLER |
| Reference | 136-120WC |
| Manufacturer Type | 2F461-012A1 |
| Power | 0.16 HP (120 W) |
| Voltage | 220-240 V |
| Frequency | 50 Hz |
| Current | Approx. 0.8 A |
| Rotation Speed | 2800 rpm |
| Plug | Not provided |
| Insulation Class | 155 (F) |
| Max Flow Rate | 8.0 m³/h (≈ 132 L/min) |
| Max Manometric Height | 3.9 m |
| Suction Type | Central Suction |
| Connection | Male Threaded End Ø 62 mm |
| Connection Compatibility | Union for 1.5-inch pipe |
| Unions | Not included |
| Length | 267 mm |
| Width | 120 mm |
| Height | 178 mm |

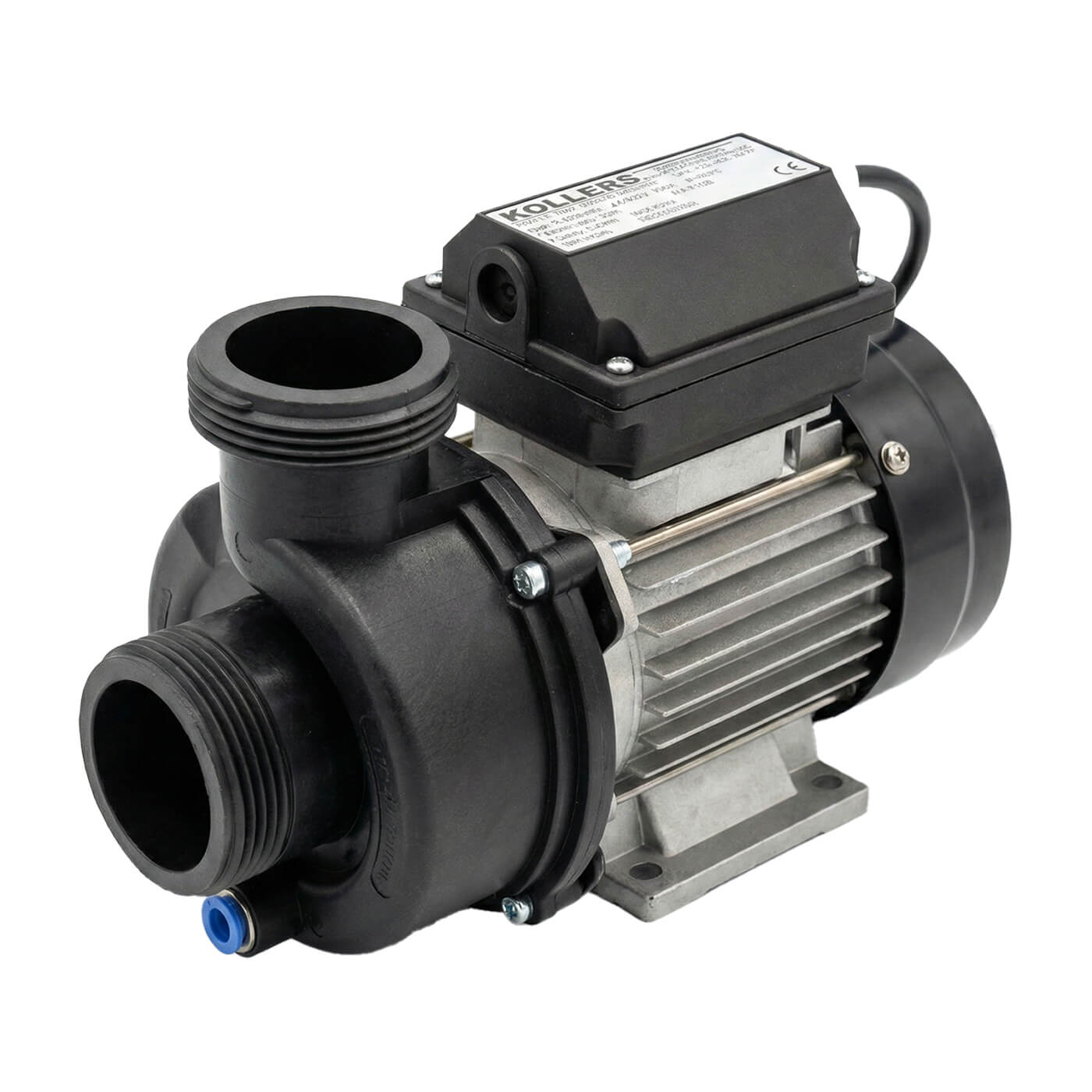

The KOLLER 136-120WC 0.16 HP circulation pump is designed to ensure continuous water circulation in spas. It operates at 220-240 V with a power of 120 W and central suction. Its maximum flow rate reaches 8.0 m³/h with a manometric height of 3.9 m.

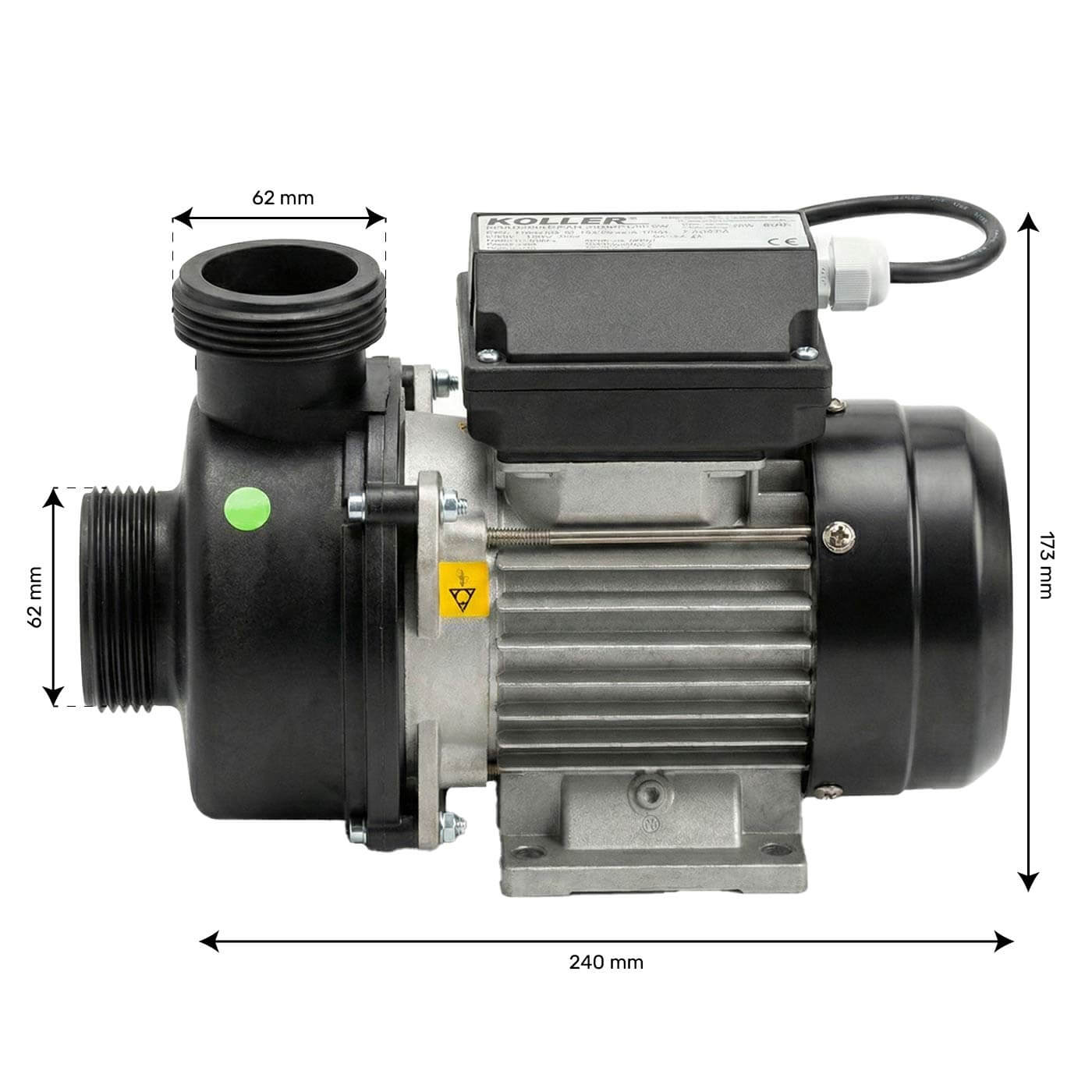

Check the reference 136-120WC and manufacturer type 2F461-012A1 on your original pump. Also, verify the dimensions (267 x 136 x 178 mm), central suction type, and 62 mm connection diameter to ensure compatibility with your installation. Make sure your system uses 1.5-inch pipe fittings.
The connection is made via a 62 mm male threaded end compatible with unions for 1.5-inch pipes. Unions are not included and should be provided during installation. Before any intervention, cut off the power supply and check the electrical and hydraulic characteristics.
You will receive a KOLLER 136-120WC 0.16 HP circulation pump. Fittings and unions are not included.
Is this pump suitable for continuous circulation?
Yes, this pump is designed to ensure water circulation in a spa. It is used for the continuous operation of the filtration system.
What fittings should be provided for this pump?
The pump has a 62 mm male threaded end. It is compatible with unions for 1.5-inch pipes, which are not included.
Are the dimensions important for replacement?
Yes, the dimensions should be checked before purchase. They ensure that the pump can be properly installed in the existing space.
