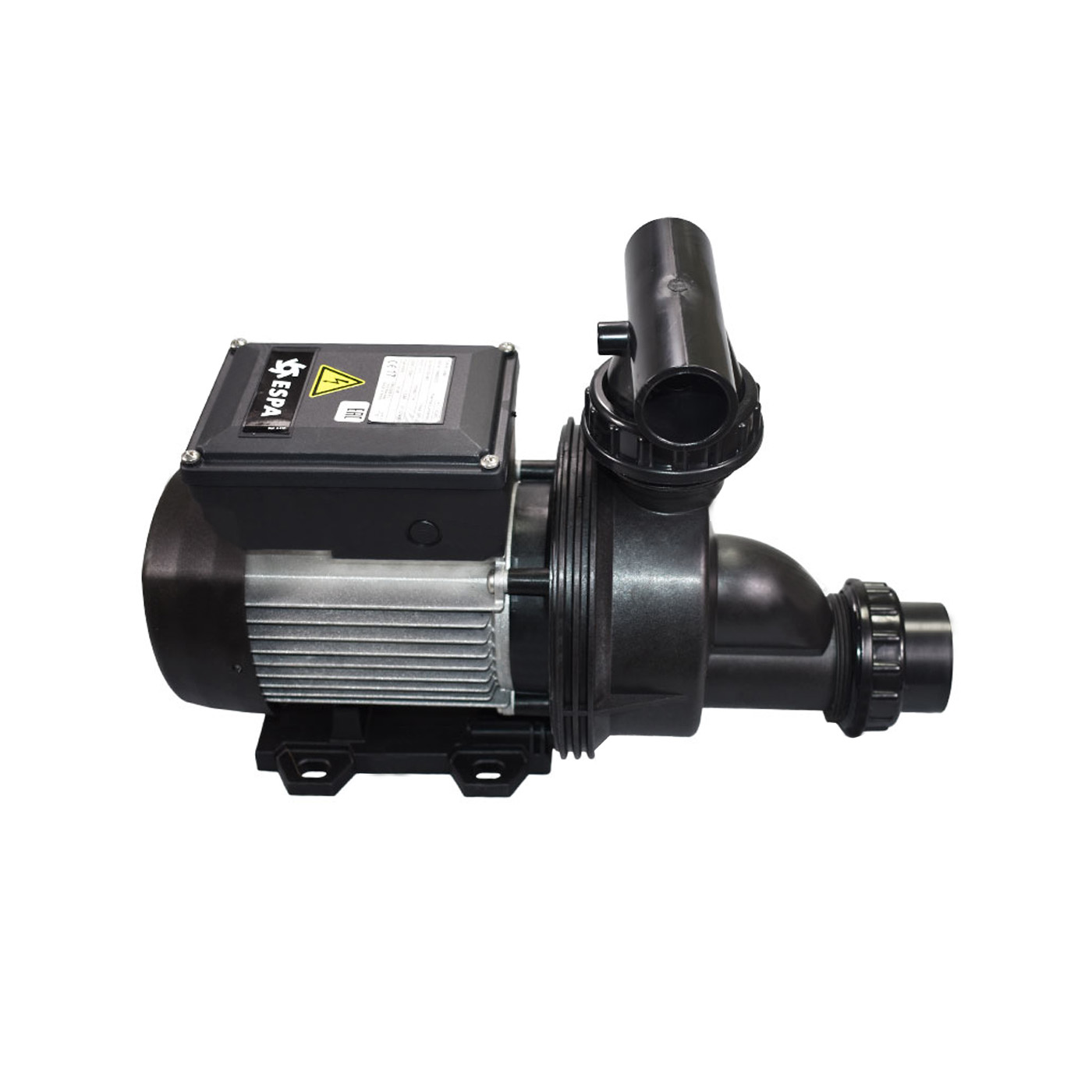

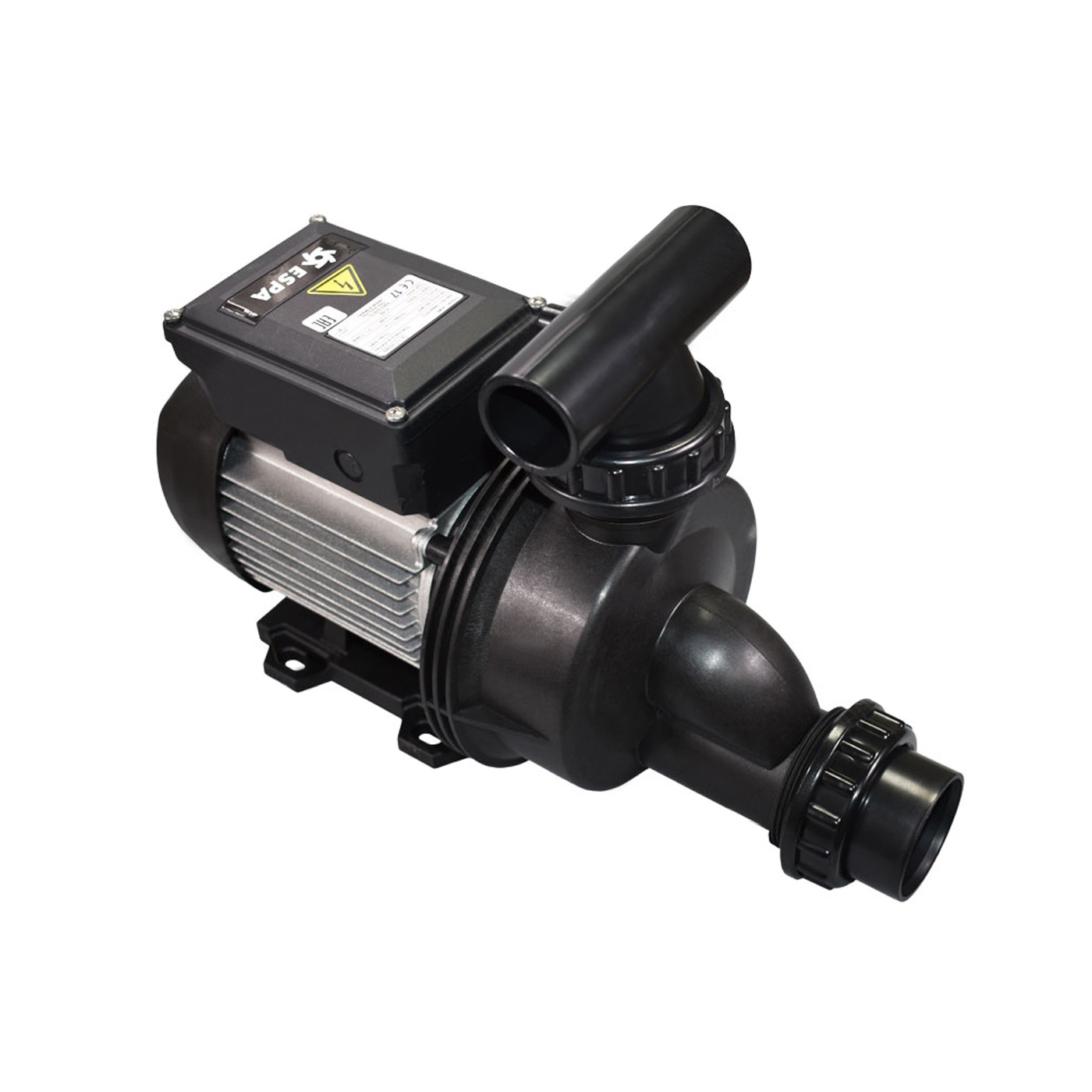

Circulation Pump TIPER 1-90M Perfectly suited for spas and pools
Power 0.75 HP equivalent to 0.55 kW
Reference ESPA: PH01302
Maximum flow:
335l/min- Silent
- Removable base
- Made of polypropylene, graphite, and stainless steel
- 24/24 operation
- IPX55
- Connection to 50mm and 32mm piping with included fittings
- Double outlet discharge
Characteristics based on models:
| Model | A | Power kW | Power HP | Capacitor uF |
| Tiper1 90 M | 4.2 | 0.55 | 0.75 | 12 |
| Tiper1 70 M | 3.1 | 0.37 | 0.5 | 12 |
Diagrams
Piping Connection
Supplied with ESPA outlet fittings (50 mm interior + double outlet 32mm) You can also reuse your old piping fittings if they are still functional.
If your piping differs, access our range of
Fittings and Unions to find the fitting that matches your piping.
Electrical Connection
The pump is supplied without a power cable. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our
Cables and Plugs for Spas section.
Here are the most commonly used Plugs in the spa world:  |  |
| AMP Plug | J&J Plug
(PIN position varies depending on the device) |
