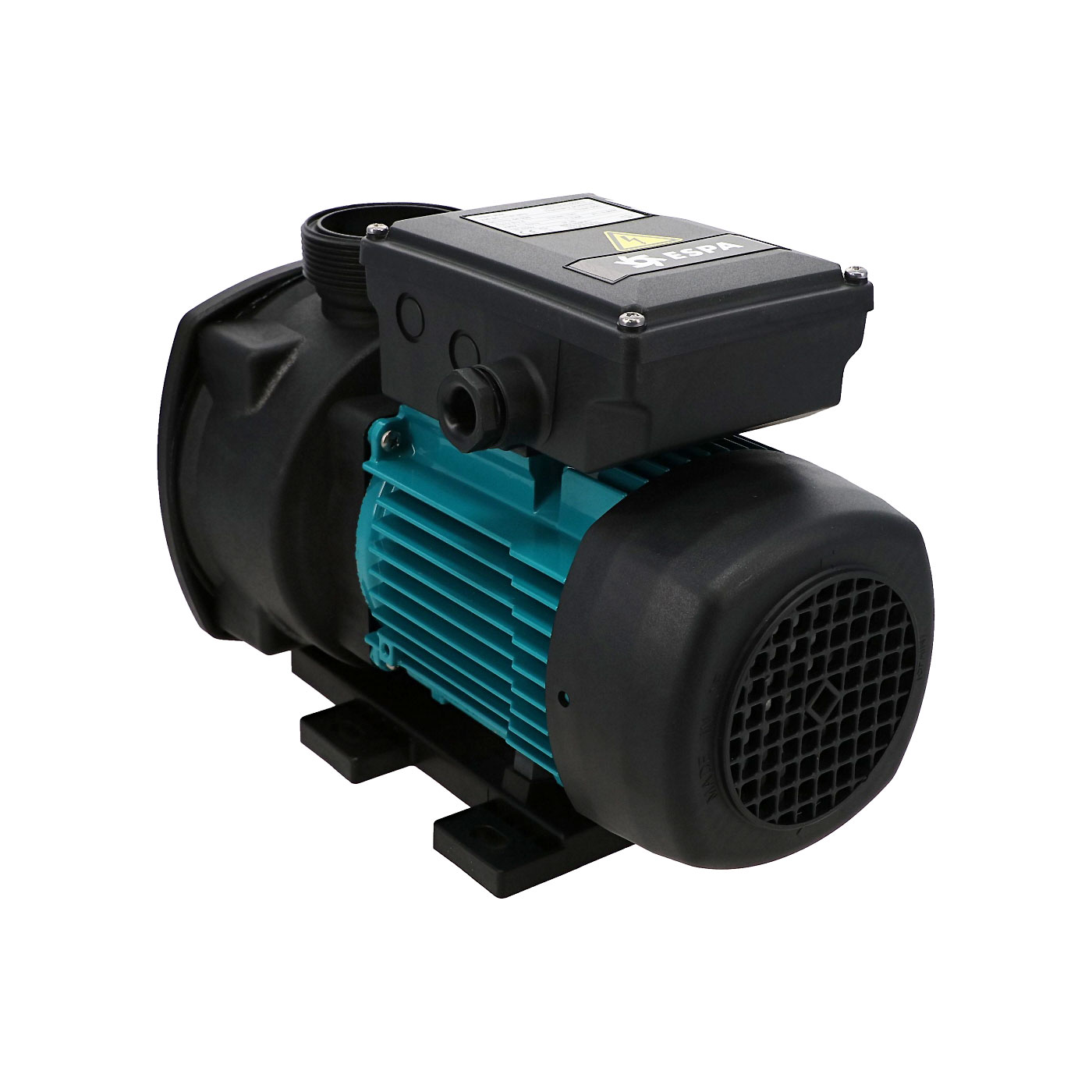

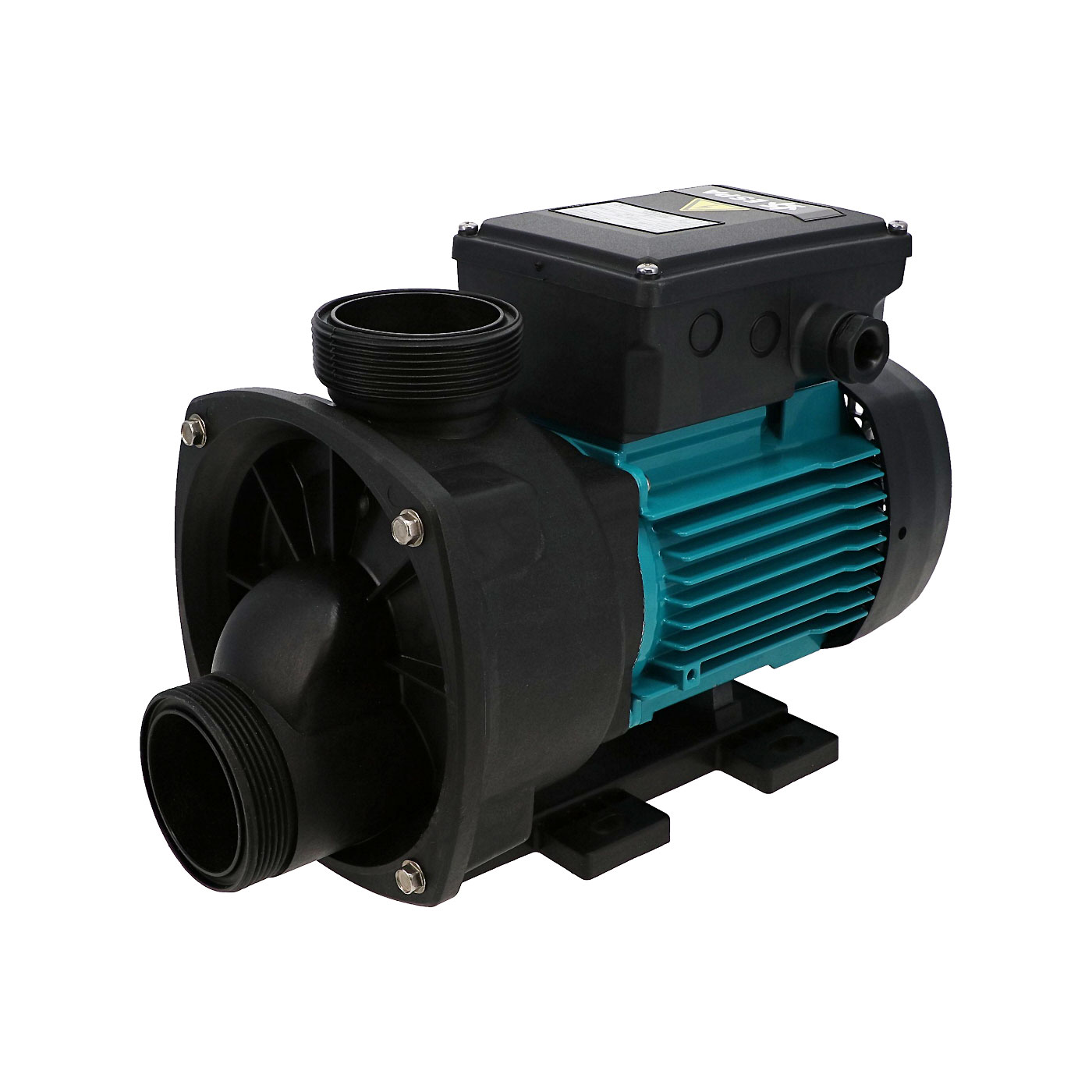

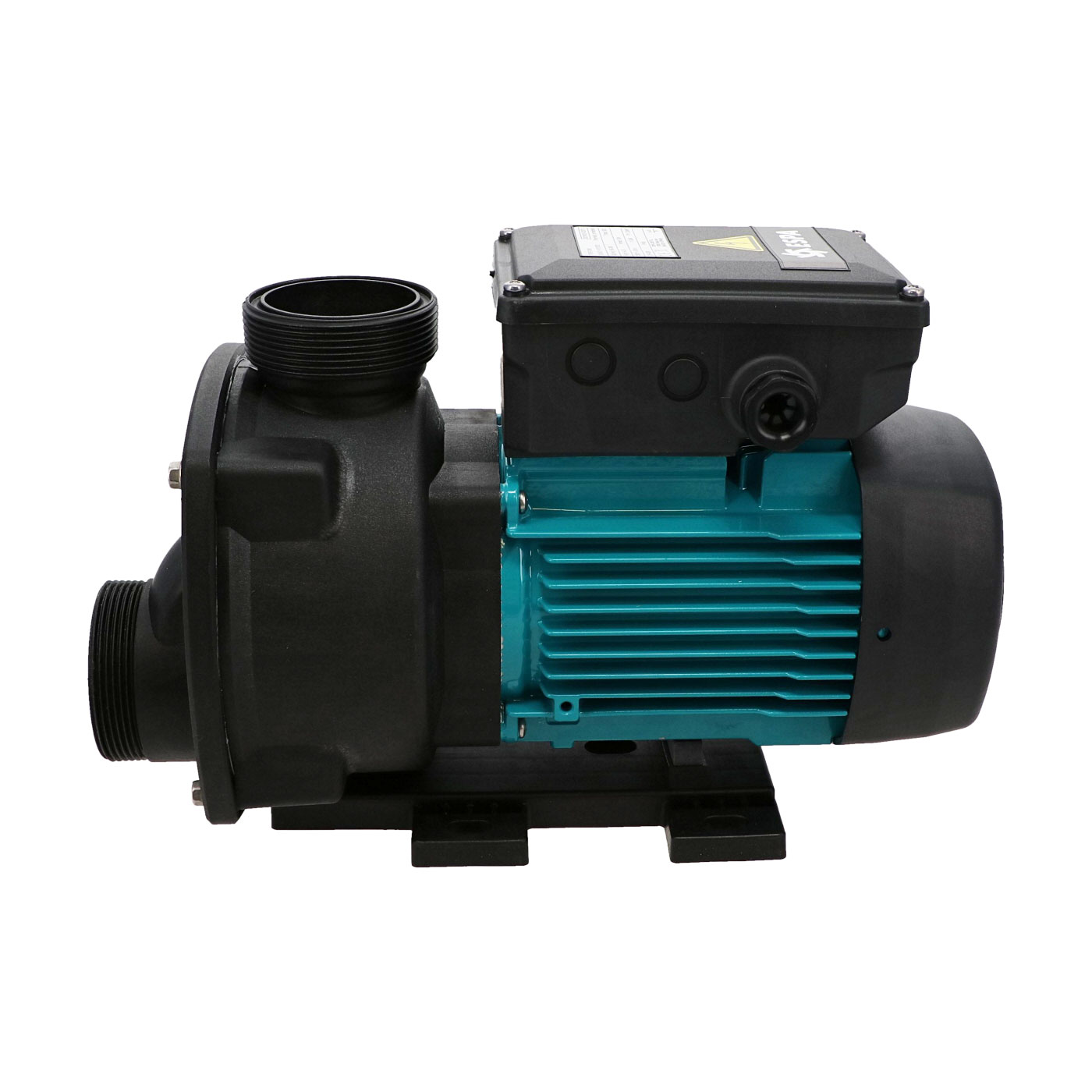

Circulation Pump TIPER1 90M
A pump perfectly suited for spas, whirlpool baths, and small pool filtration.
- Power 1 HP, equivalent to 0.75 kW
- Silent operation
- Removable base
- Manufactured in polypropylene, graphite, and stainless steel
- 24h/24 operation
- IP 55 protection
- Class F insulation
- Suction and discharge thread diameter: 65 mm
- Connection to piping of 50mm and 32mm with included fittings
- Double outlet discharge
| Features of ESPA TIPER1 and TIPER2 pump models: |
|---|
| Single-phase model | Ref. | A | P1
kW | kW | HP | µF | Lpf (dB) | Flow rate at 6 m of HMT | Voltage |
| Tiper1 70 M | PH1505 | 3.0 | 0.7 | 0.37 | 0.5 | 12 | <70 | 10.5 m3/h | 230 V |
| Tiper1 90 M | PH1510 | 3.8 | 0.9 | 0.75 | 1 | 12 | <70 | 13 m3/h | 230 V |
| Tiper2 75 M | PH1201 | 5.3 | 1.2 | 0.55 | 0.75 | 16 | 71 | 18 m3/h | 230 V |
| Tiper2 125 M | PH1202 | 5.6 | 1.5 | 0.9 | 1.25 | 16 | 72 | 21 m3/h | 230 V |
Diagrams
Piping Connection

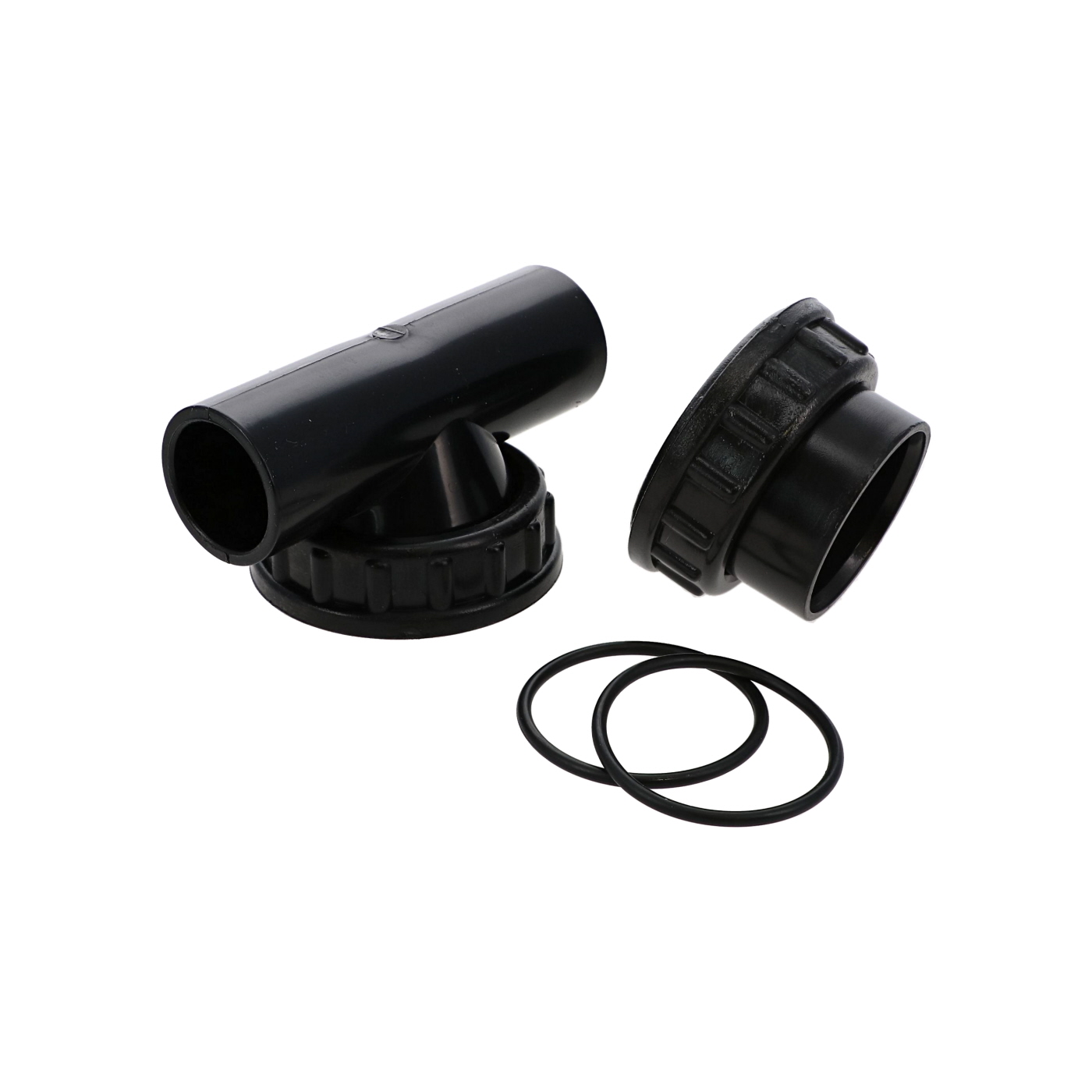

Supplied with ESPA outlet fittings (50 mm interior + double outlet 32mm) + 2 sealing joints
You can also reuse your old piping fittings if they are still functional.
If your piping differs, access our range Fittings and Unions to find the fitting corresponding to your piping
Electrical Connection
The pump is supplied without a power cable. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section
Here are the most commonly used Plugs in the Spa world:
 |  |
| AMP Plug | J&J Plug
(PIN positions vary depending on the device) |
