Ref : A-000000-0c022

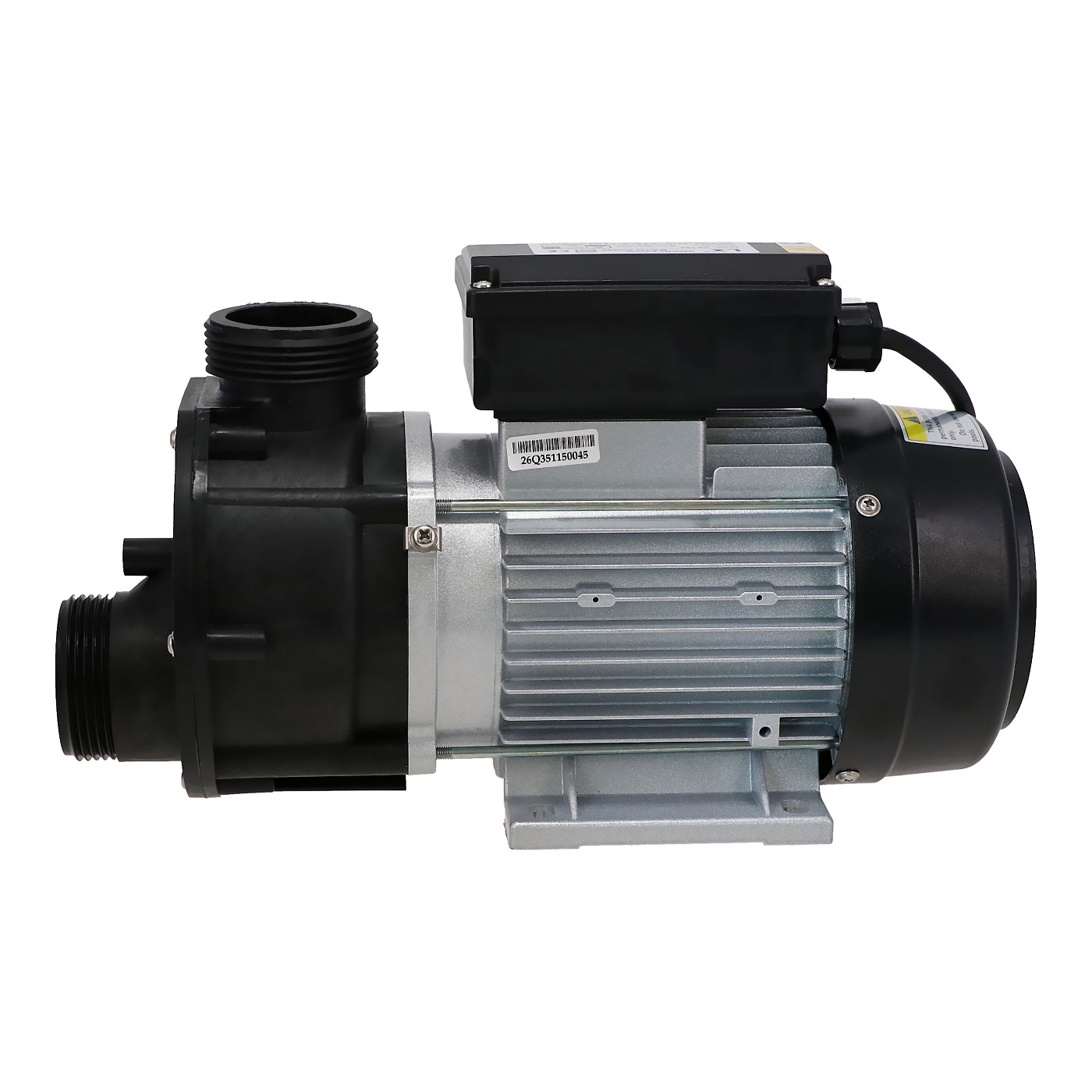

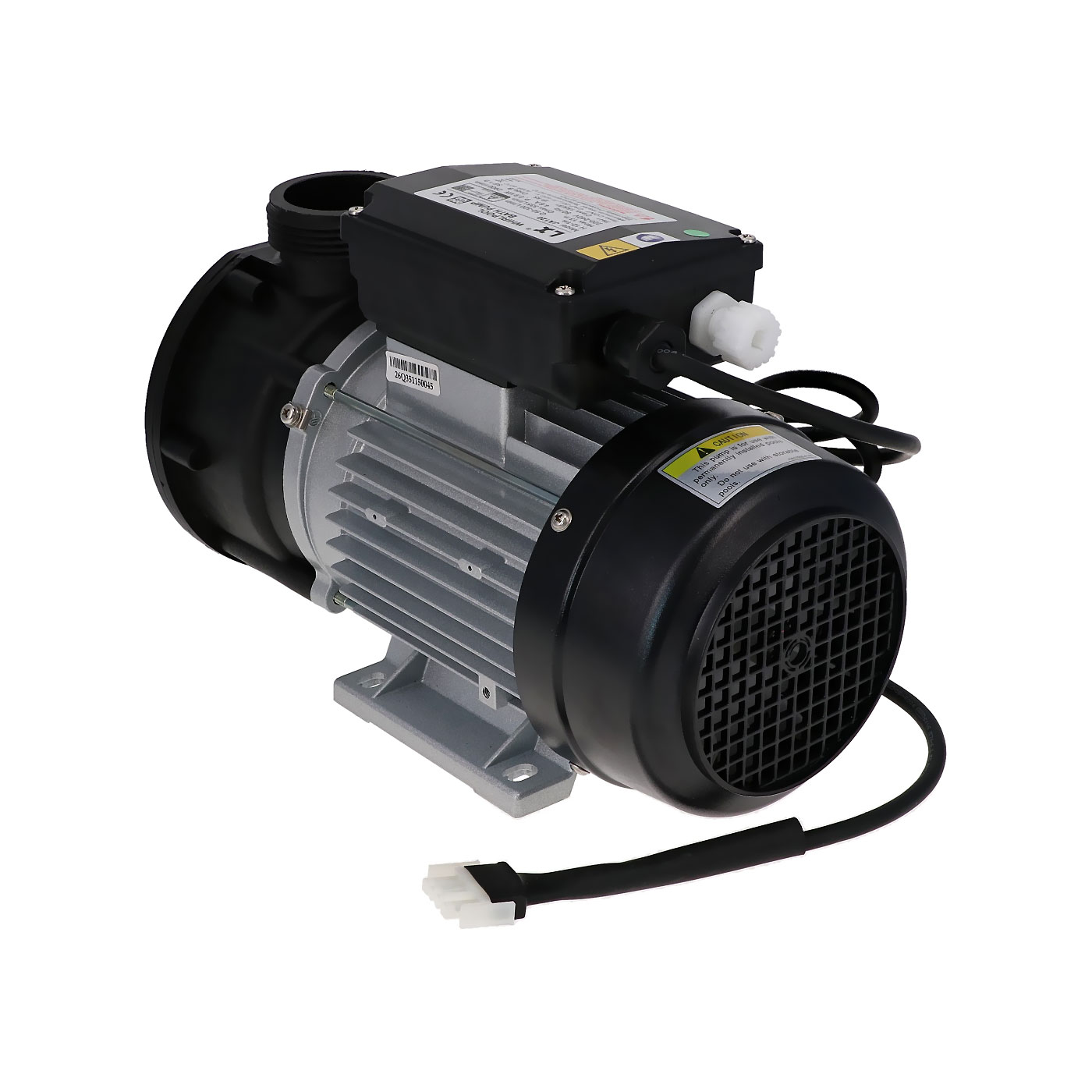

JA120 Circulation Pump

Name: JA120 Circulation Pump
Brand: LX
SKU: A-000000-0c022
Price: 155 EUR
Availability: InStock
Rating: 5 (3 reviews)

Pay in 4x free of charge with Paypal

Worldwide delivery

100% compatible parts
Warranty - 2 years

Technical characteristics

Spa filtration pump JA120
1.2 HP - 900 watts - 335 liters/min
To fit on 1.5"(48mm) spa pipe

Motor chassis in aluminum
Reinforced upper turbine
Single-phased pump with thermic overheat protection
This pump is perfect for the hydro-massage spas and bathtubs.
Possibility to connect a pneumatic button for the spas that do not have an electric control box.

Model	Power (HP)	Power (W)	Flow (l/min)	H Max (m)
JA35	0.35	250	150	7.5
JA50	0.5	370	180	10
JA75	0.75	550	250	12
JA100	1	750	300	12
JA120	1.2	900	335	13
JA150	1.5	1100	380	16
JA200	2	1500	450	16

Indice performance Pompes spa LX Whirlpool série JA

Model	A	B	C	D	E	F	L	H	H1	H2
JA35	100	153	80	164	33	89	317	191	168	63
JA50	100	153	80	164	33	89	317	191	168	63
JA75	112	156	90	172	44	86	347	205	179	74
JA100	112	156	90	172	44	86	347	205	179	74
JA120	112	156	90	172	44	86	347	205	179	74
JA150	121	187	90	218	38	120	402	210	211	90
JA200	121	187	90	218	38	120	402	210	211	90

1-2-3 : 1.5" Fitting union
4 : Screws for front faceplate
5 : Front faceplate
6 : Gasket
7 : Impeller
- JA35
- JA50
- JA75
- JA100
- JA120
- JA150
- JA200
8 : Seal kit
9 : Back faceplate
10 : Motor

(4-5-6-7-8-9) : Complete wet end
- JA35
- JA50
- JA75
- JA100
- JA120
- JA150
- JA200

Raccordement tuyauterie

Livré avec raccords de sortie 1'' 1/2 (48 mm intérieur)
Vous pouvez également réutiliser vos anciens raccords de tuyauterie si ceux-ci sont encore fonctionnels.
Si votre tuyauterie diffère, accéder à notre gamme Raccords et Union afin de trouver le raccord correspondant à votre tuyauterie

Le corps de pompe est orientable afin de s'adapter à votre tuyauterie. Vous pourrez alors disposer d'un refoulement à gauche ou à droite en fonction de votre installation. Pour cela, dévissez simplement les 4 vis moteur afin de tourner votre corps de pompe dans le sens souhaité. Replacez ensuite les vis en lieu et place.

Pipe Connection

Delivered with the 1'' 1/2 (48 mm internal) output connection
You can use your old pump union connections. If these connectors aren't compatible with your pipe, click on the link below : Pump union connections

Electronic Connection

Delivered with cable without plug. You can use your old cable to connect your new pump. If we can't connect it, choose your new cable in our cable range : Cables and plugs

The most famous plugs in Spa World:


AMP Plug	J&J Plug

Equivalent products

10/10

Based on 3 reviews

Anonymous A.

Article conforme à la commande

Anonymous A.

Conforme

Anonymous A.

En service donne entièrement satisfaction
