Technical characteristics

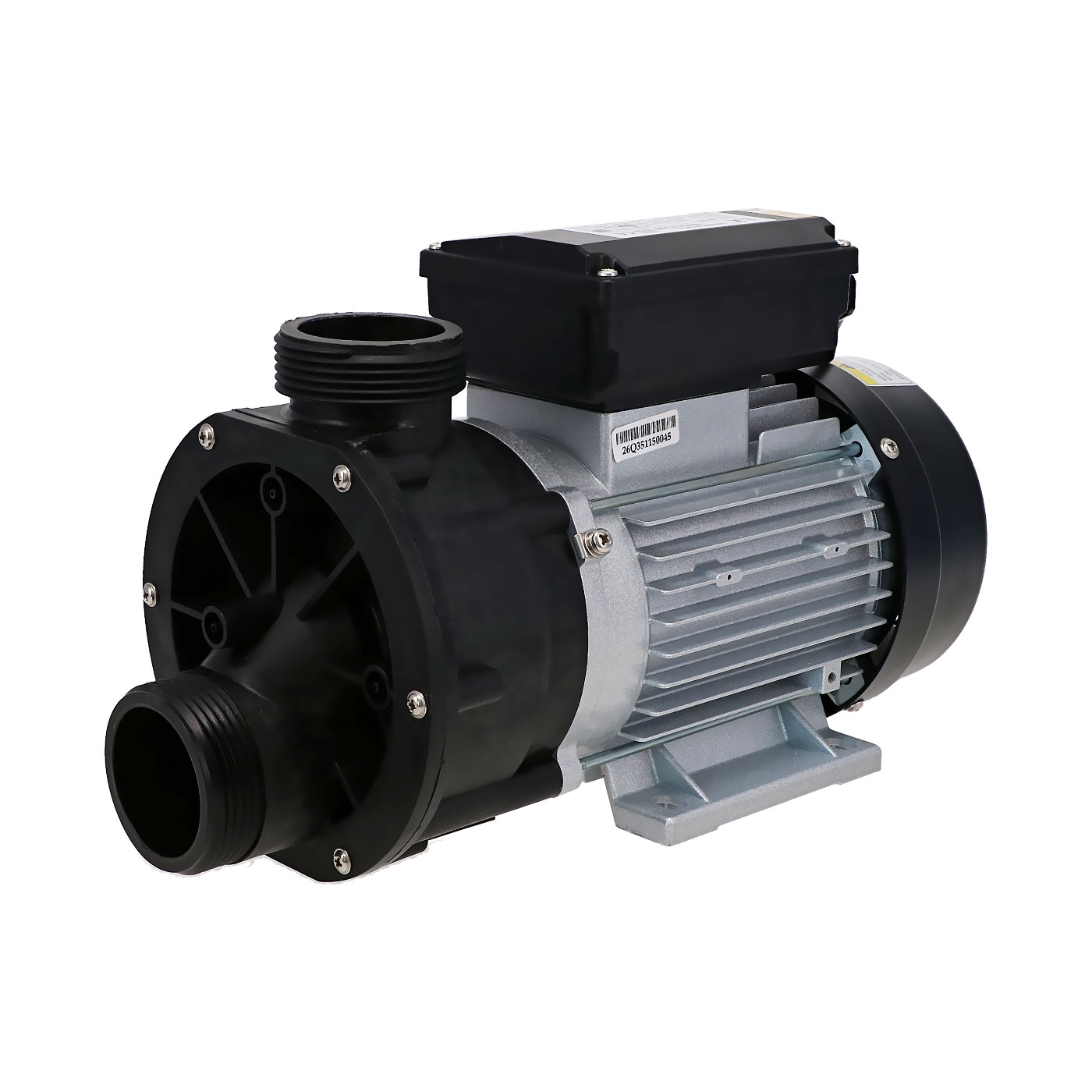

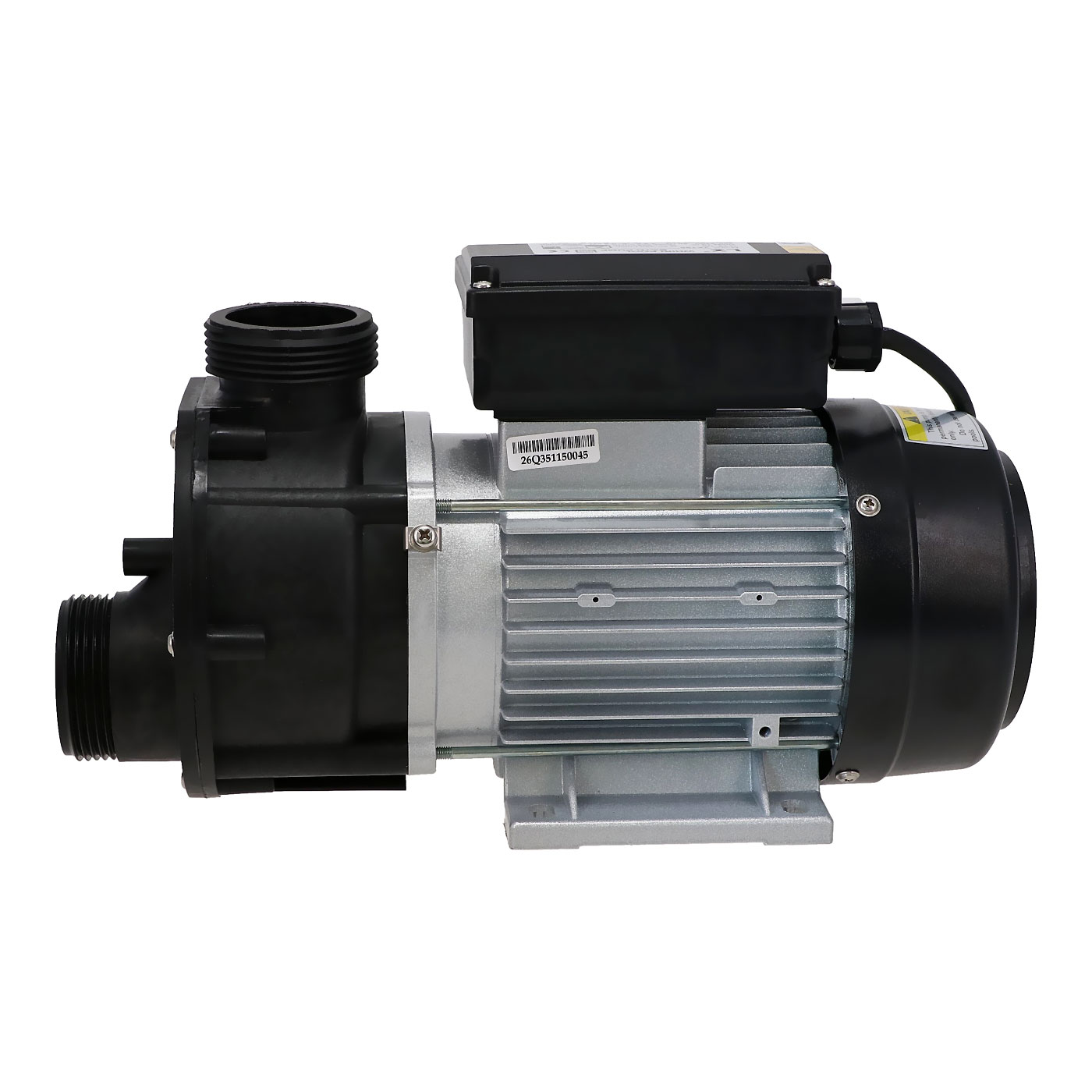

Spa filtration pump - LX Whirlpool JA50
- JA75 pump - 0.75HP - 550 watts - 250 liters / min
Motor chassis in aluminum
Reinforced upper turbine
Single-phased pump with thermic overheat protection
This pump is perfect for the hydro-massage spas and bathtubs.
Possibility to connect a pneumatic button for the spas that do not have an electric control box.
| Model | Power (HP) | Power (W) | Flow (l/min) | H Max (m) |
| JA35 | 0.35 | 250 | 150 | 7.5 |
| JA50 | 0.5 | 370 | 180 | 10 |
| JA75 | 0.75 | 550 | 250 | 12 |
| JA100 | 1 | 750 | 300 | 12 |
| JA120 | 1.2 | 900 | 335 | 13 |
| JA150 | 1.5 | 1100 | 380 | 16 |
| JA200 | 2 | 1500 | 450 | 16 |
| Model | A | B | C | D | E | F | L | H | H1 | H2 |
| JA35 | 100 | 153 | 80 | 164 | 33 | 89 | 317 | 191 | 168 | 63 |
| JA50 | 100 | 153 | 80 | 164 | 33 | 89 | 317 | 191 | 168 | 63 |
| JA75 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
| JA100 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
| JA120 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
| JA150 | 121 | 187 | 90 | 218 | 38 | 120 | 402 | 210 | 211 | 90 |
| JA200 | 121 | 187 | 90 | 218 | 38 | 120 | 402 | 210 | 211 | 90 |
- 1-2-3 : 1.5" Fitting union
- 4 : Screws for front faceplate
- 5 : Front faceplate
- 6 : Gasket
- 7 : Impeller
- 8 : Seal kit
- 9 : Back faceplate
- 10 : Motor
Pipe Connection
Delivered with the 1'' 1/2 (48 mm internal) output connection
You can use your old pump union connections. If these connectors aren't compatible with your pipe, click on the link below : Pump union connections
Electronic Connection
Delivered with cable without plug. You can use your old cable to connect your new pump. If we can't connect it, choose your new cable in our cable range : Cables and plugs
The most famous plugs in Spa World:
 |
 |
| AMP Plug | J&J Plug |
