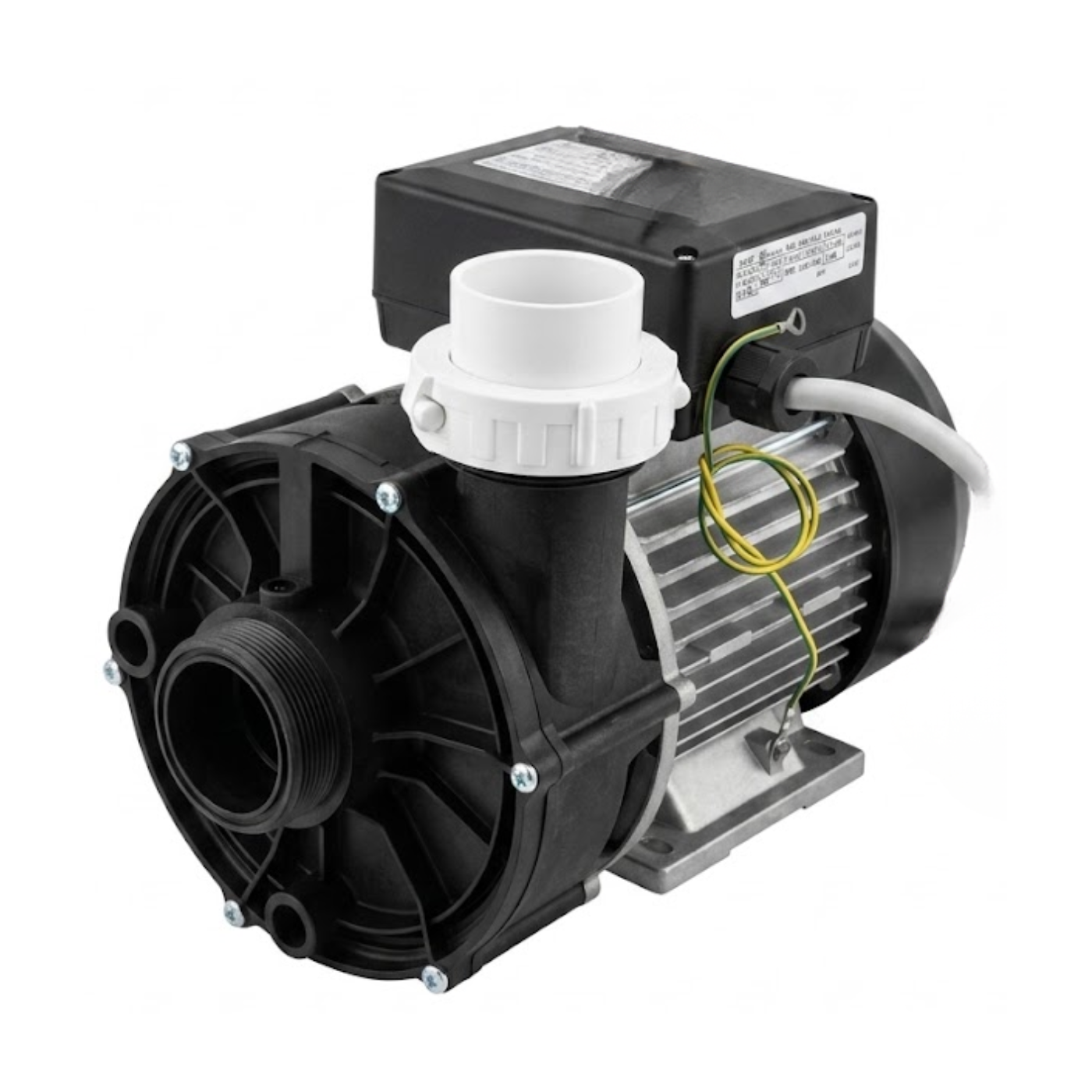

Simaco SAM2-200 Spa Pump 2.1 kW - Two-Speed
The Simaco SAM2-200 pump is a two-speed pump used in many Teuco, Spaform, and Jean Desjoyaux spas. Designed to provide both low-speed filtration and high-speed hydrotherapy, it is known for its quiet operation and excellent hydraulic performance.
Detailed Features:
| Manufacturer | Simaco |
| Manufacturer Reference | SAM2-200 2/4 |
| Type | Two-speed circulation pump |
| High-Speed Power | 2.1 kW |
| Low-Speed Power | 0.48 kW |
| Maximum Flow Rate | 650 l/min (high speed) - 330 l/min (low speed) |
| Connections | Male threaded ends Ø outer 63 mm - 2 hose connections Ø50 mm supplied |
| Compatibility | Teuco, Spaform, and Jean Desjoyaux Spas |
| Pump Body | PPO |
| Impeller | Noryl |
| Mechanical Seal | Alumina / Graphite |
| Motor Protection | IP55 |
| Insulation | Class F |
| Thermal Protection | Automatic reset |
| Maximum Liquid Temperature | +60°C |
| Maximum Ambient Temperature | +40°C |
This pump is also available in single-speed.

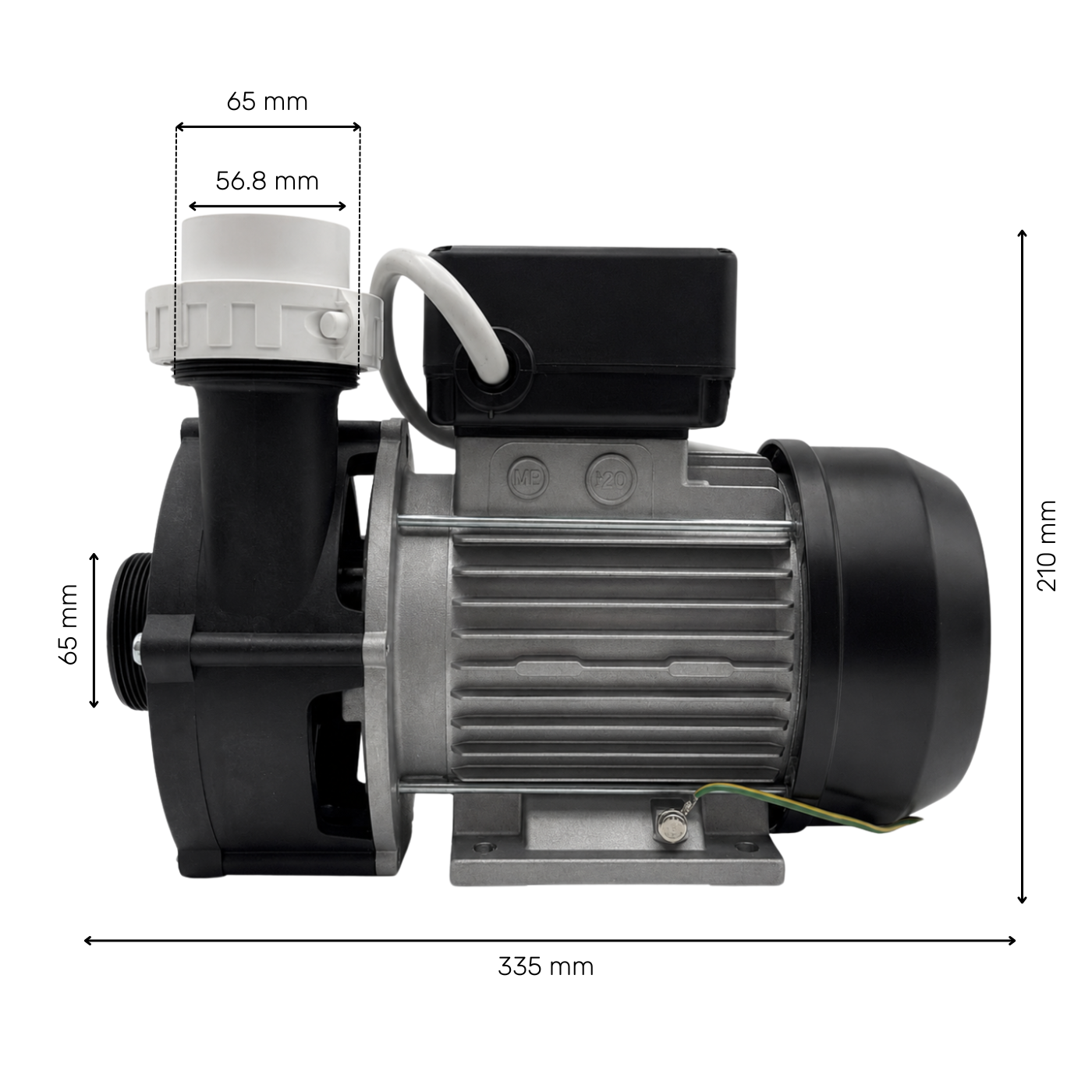

Dimensions:
- Height: 210 mm
- Width: 190 mm
- Length: 335 mm
- Outer suction thread: 65 mm
- Outer discharge thread: 65 mm
- Union diameter int/ext: 50 mm / 56.8 mm
Technical Diagrams
The manufacturer's performance curves allow you to visualize the flow rates obtained at low and high speeds according to the manometric height.
Piping Connection

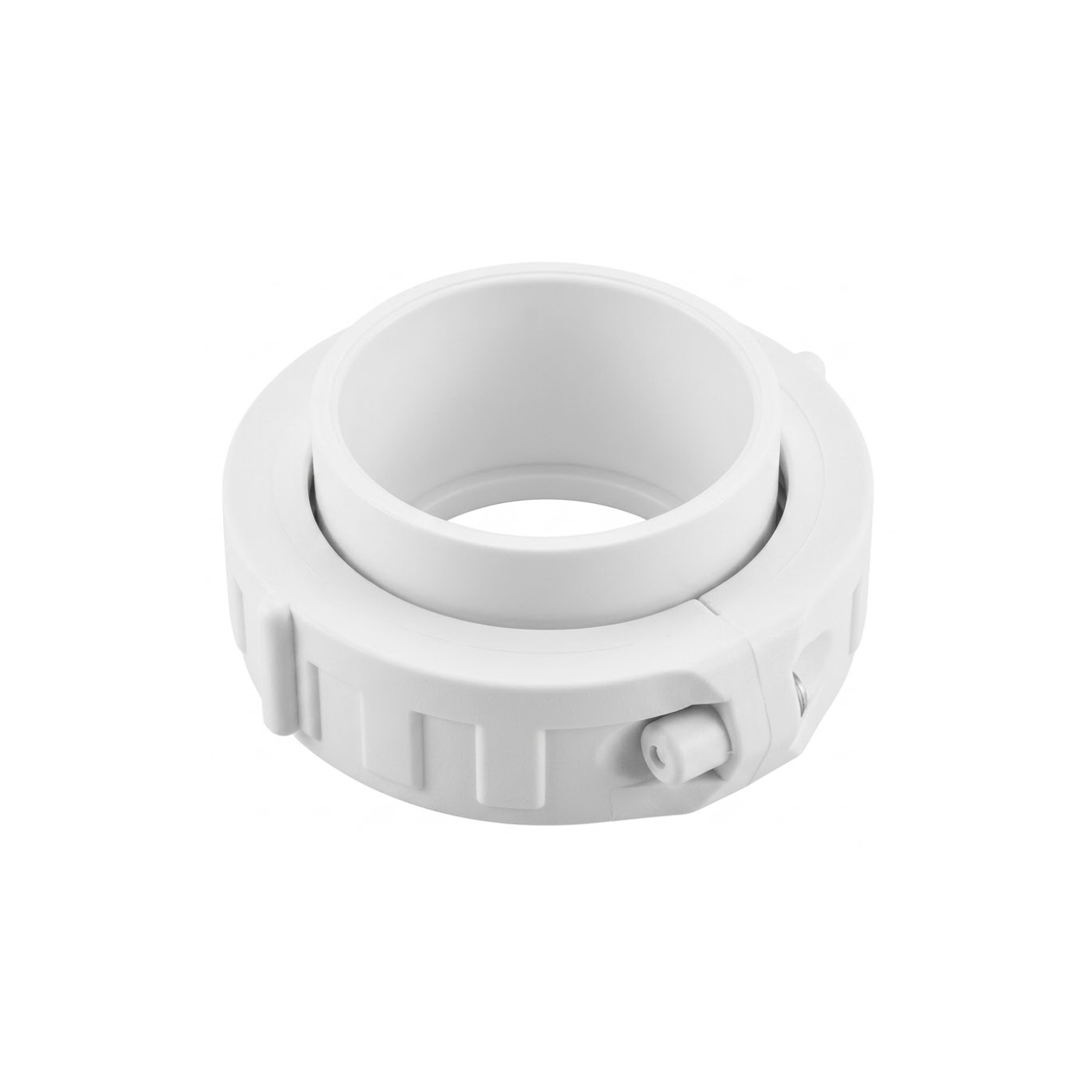

The pump comes with two fittings (unions) for 50 mm hose as well as their seals.
The suction and discharge ports are equipped with male threads with an outer diameter of 63 mm (2¼"G).
If your installation uses a different type of fitting, you can use a clamping ring associated with a 2" or 63 mm fitting. Remember to replace the sealing gasket during assembly.
Electrical Connection
- Pre-wired without plug (approximately 120 cm cable)
Installations equipped with a mini J&J plug will need to use an AMP to mini J&J adapter (sold separately) or reuse the cable from the old pump if it is in good condition.
Compatibility and Pre-Purchase Checks
This pump is compatible with various Teuco, Spaform, and Jean Desjoyaux spas equipped with a Simaco SAM2-200 pump. Check the reference of your current pump, its dimensions, and the type of connection before placing an order.
The pump has 63 mm male threaded connections and comes with unions and seals for 50 mm hose.
Installation / Replacement
The SAM2-200 is available pre-wired without a plug or with an AMP plug depending on your installation. If your spa is equipped with a mini J&J plug, an AMP to mini J&J adapter is required, or the cable from your old pump can be reused if it is in good condition.
What You Receive
- 1 two-speed Simaco SAM2-200 pump
- Pump unions
- Sealing gaskets for 50 mm hose connections
Frequently Asked Questions
Does this pump directly replace a Simaco SAM2-200?
Yes, this pump corresponds to the manufacturer reference SAM2-200 2/4. However, check the dimensions, hydraulic connection, and electrical connection type of your installation before replacement.
What are the two speeds of this pump used for?
The low speed is used for water filtration with reduced consumption. The high speed is intended to supply the massage jets when the spa is in operation.
What fittings are provided with the pump?
The pump comes with its connection unions and seals for 50 mm hose. The pump connections are male threaded ends with an outer diameter of 63 mm.
Is this pump quiet?
Simaco pumps are known for their quiet operation. They are designed to provide quiet operation while maintaining high hydraulic performance.
