Simaco SAM2-200 2 kW Spa Pump - Single Speed
The Simaco SAM2-200 pump is a single-speed pump used in many Teuco, Spaform, and Jean Desjoyaux spas. Designed to provide high-speed hydrotherapy, it is known for its quiet operation and excellent hydraulic performance.
Detailed Features:
| Manufacturer | Simaco |
| Manufacturer Reference | SAM2-200 |
| Type | Massage pump single-speed |
| High-Speed Power | 2 kW |
| Current | 9.5 A |
| Maximum Flow Rate | 650 l/min |
| Rotation Speed | 2800 rpm |
| Connections | Male threaded ends Ø outer 63 mm - 2 hose connections Ø50 mm supplied |
| Compatibility | Teuco, Spaform, and Jean Desjoyaux spas |
| Pump Body | PPO |
| Impeller | Noryl |
| Mechanical Seal | Alumina / Graphite |
| Motor Protection | IP55 |
| Insulation | Class F |
| Thermal Protection | with automatic reset |
| Maximum Liquid Temperature | +60°C |
| Maximum Ambient Temperature | +40°C |
This pump is also available in dual-speed.
Dimensions:
- Height: 210 mm
- Width: 190 mm
- Length: 340 mm
- External suction thread pitch: 65 mm
- External discharge thread pitch: 65 mm
- Internal/external union diameter: 50 mm / 56.8 mm
Technical Diagrams
The manufacturer's performance curves allow you to visualize the flow rates achieved at low and high speeds based on the manometric height.
Piping Connection
The pump comes with two hose connectors (unions) for 50 mm hoses along with their seals.
The suction and discharge ports have male threads with an outer diameter of 63 mm (2¼"G).
If your installation uses a different type of connector, you can use a clamping ring with an appropriate 2" or 63 mm connector. Also, remember to replace the sealing ring during assembly.
Electrical Connection

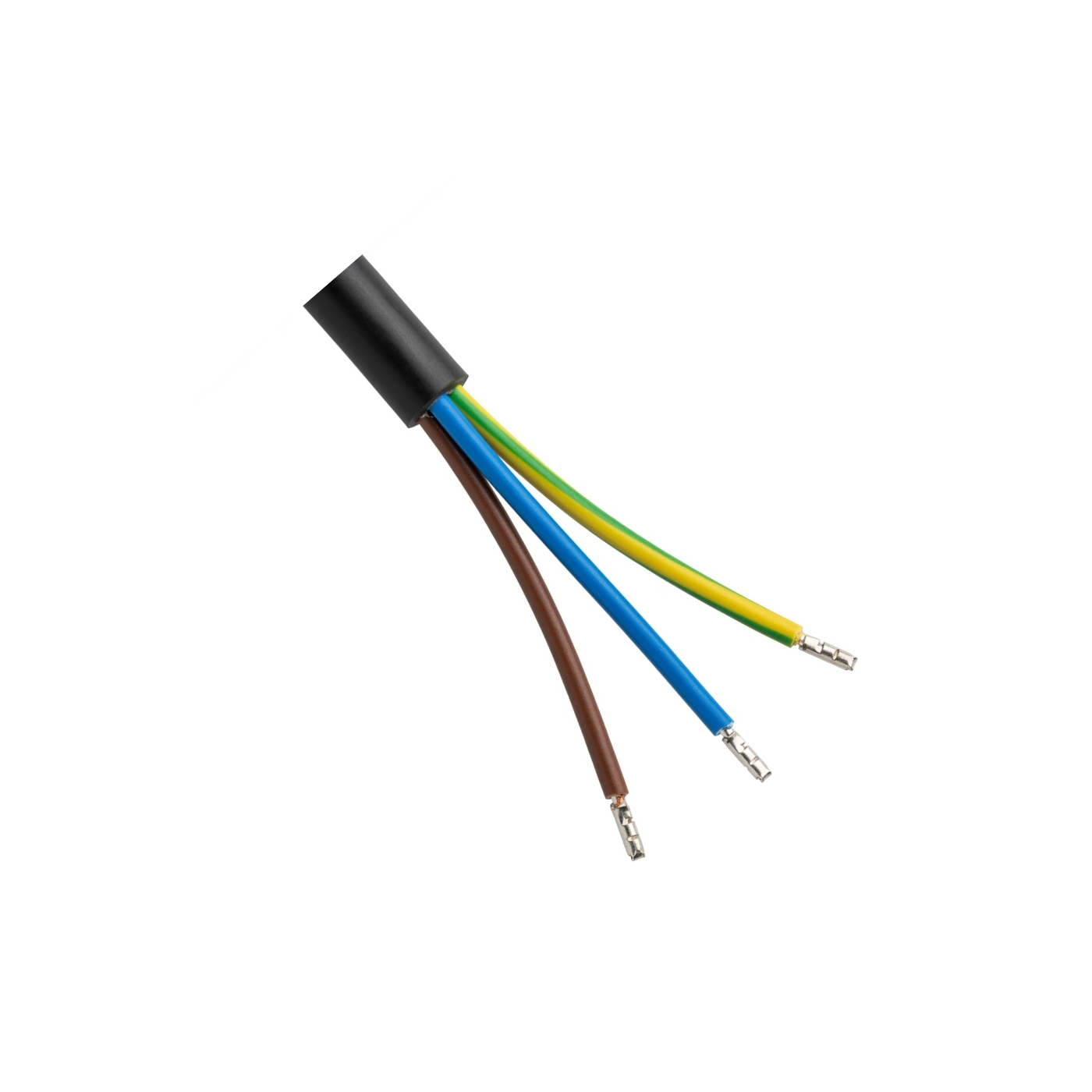

- Pre-wired without plug (approximately 120 cm cable)
Installations with a mini J&J plug will need to use an AMP to mini J&J adapter (sold separately) or reuse the cable from the old pump if it is in good condition.
Compatibility and Pre-Purchase Checks
This pump is compatible with various Teuco, Spaform, and Jean Desjoyaux spas equipped with a Simaco SAM2-200 pump. Check the reference of your current pump, its dimensions, and the type of connection before placing an order.
The pump has male threaded connectors of 63 mm and comes with unions and seals for 50 mm hoses.
Installation / Replacement
The SAM2-200 is available pre-wired without a plug. If your spa has a mini J&J plug, an AMP to mini J&J adapter is required or the cable from your old pump can be reused if in good condition.
What You Receive
- 1 single-speed Simaco SAM2-200 pump
- Pump unions
- Sealing rings for 50 mm hose connections
Frequently Asked Questions
Does this pump directly replace a Simaco SAM2-200?
Yes, this pump corresponds to the manufacturer reference SAM2-200 2/4. However, check the dimensions, hydraulic connections, and electrical connections of your installation before replacement.
What connectors are provided with the pump?
The pump comes with its connection unions and seals for 50 mm hoses. The pump connections are male threaded ends with an outer diameter of 63 mm.
Is this pump quiet?
Simaco pumps are known for their quiet operation. They are designed to provide quiet operation while maintaining high hydraulic performance.
