Spa Pump Sirem PB1C8024L1B - 1.7 HP Two-Speed
Sirem Reference: PB1C8024L1B
French-made pump
Two speeds:
- 0.5HP for 0.35kW in low speed
- 1.7HP for 1.25kW in high speed
Mainly used in Aquamarine spas and pools
Features:
- Pump body in polypropylene.
- 24/24h operation
- Polyamide turbine
- 8 Discharge positions
- 65mm suction thread and 59mm discharge thread
- Equipped with a capacitor (Allows pump ignition/triggering)
- Material suitable for spas
| Model | Power
kW | Power
HP |
| PB1C80L1B | 1.35kW | 1.8 HP |
| PB1C8024L1B | 1.25kW / 0.35kW | 1.7 HP / 0.5HP |

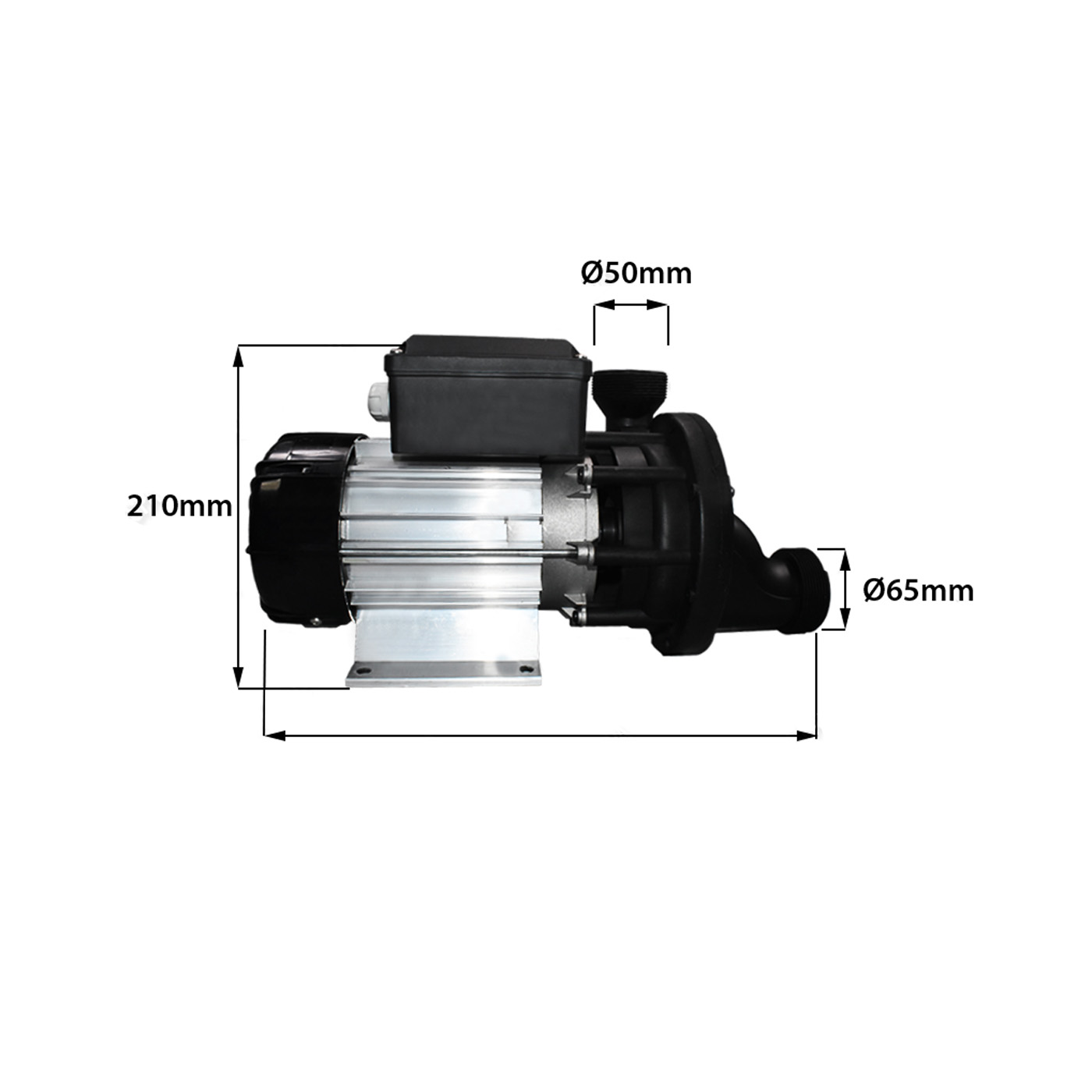

Technical Diagrams
Pipe Connections
Supplied with threaded outlet fittings 60mm and 65mm You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of
Fittings and Unions to find the fitting corresponding to your piping
Electrical Connection
The pump is supplied without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our
Cables and Plugs for Spa section
Here are the most commonly used Plugs in the Spa world: |  |
| Amp Plug | J&J Plug
(PIN positions vary depending on the device) |
