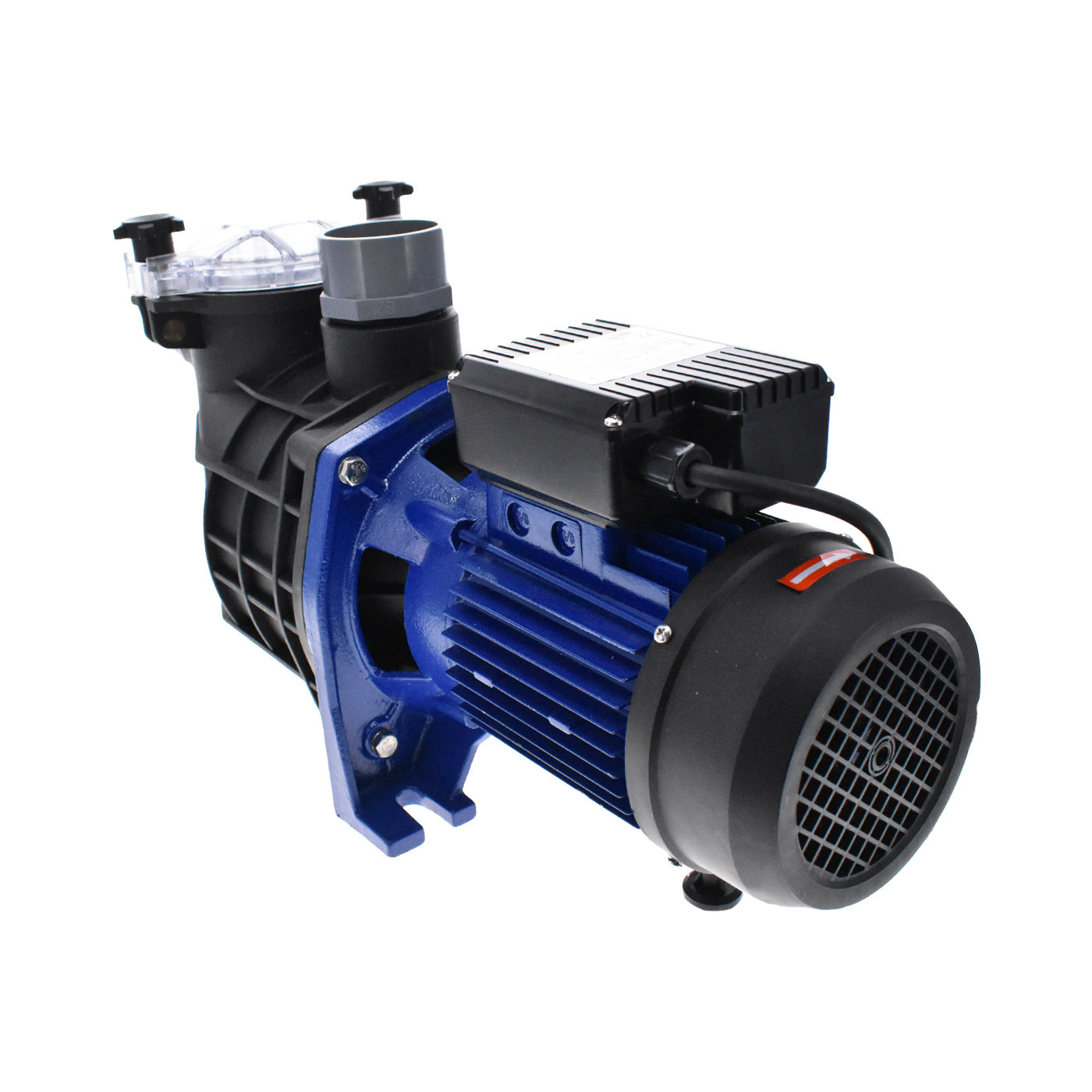

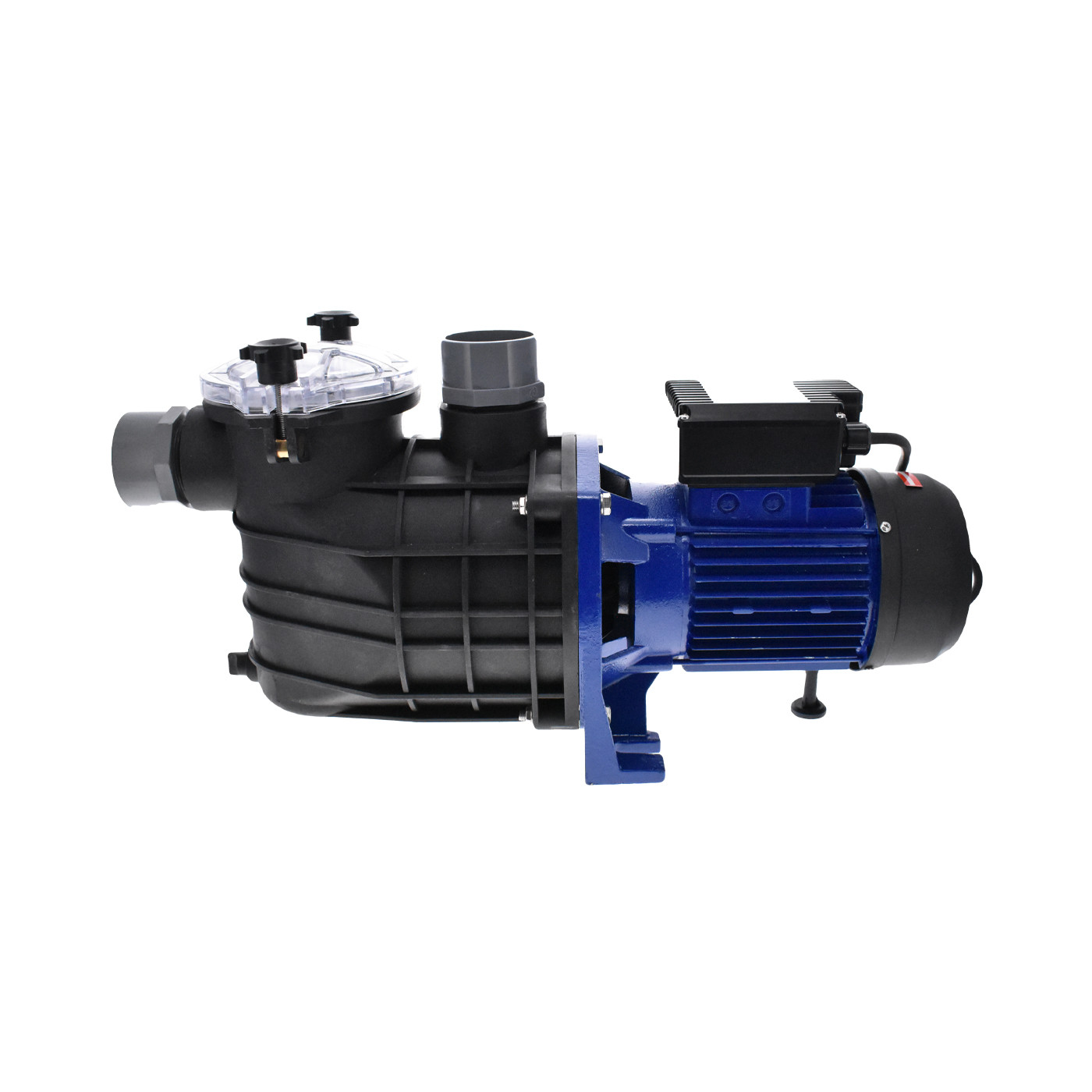

Boospa Pumps HCP2200 pool Pump - 3.0HP - 2200 W - Single Speed
Self-priming pump with integrated pre-filter and motor.
Features
- Central suction (outer thread diameter: 78mm)
- Side discharge (outer thread diameter: 78mm)
- Power: 3.0HP - 2200 watts - Single speed
- Maximum flow rate: 480 liters per minute
- IPX5 protection
- Silent operation
- Very resistant motor body (anodized)
- High-quality, ultra-resistant mechanical seal against pool chemicals
- Do not exceed an outdoor temperature of 50°C
- Possible to raise the pump to keep it out of the water if needed
- Overload protection
- Large pre-filter area to avoid too frequent maintenance (Inner diameter: 90mm/Outer diameter: 110mm)
- Water pump draining device
Features of all pumps in the HCP series:
Model | Power | V/Hz | Qmax (L/min) | Hmax (m) | Outer pipe diameter | Pump weight | Packaging dimensions (in mm) |
| HCP1500 | 1500W/2.0HP | 220-240V/50Hz | 350 | 17 | 60mm (2 inches) | 18.6 kgs | 610 x 270 x 370 |
| HCP2200 | 2200W/3.0HP | 220-240V/50Hz | 420 | 18 | 60mm (2 inches) | 19.5 kgs | 610 x 270 x 370 |
| HCP3000 | 3000W/4.0HP | 220-240V/50Hz | 500 | 18.5 | 60mm (2 inches) | 22.8 kgs | 610 x 270 x 370 |

Pipe Connection
Supplied with 2 fittings for 2" pipes (60 mm outer diameter) You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our range of
Pump Fittings and Unions to find the fitting that matches your piping.
Electrical Connection
The pump comes with a connection cable and AMP plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section.
Here are the most commonly used Plugs:
 |  |
| AMP Plug | J&J Plug ( PIN positions vary depending on the device) |
