Product is no longer manufactured

ESPA

Ref : A-000000-05934

(1)

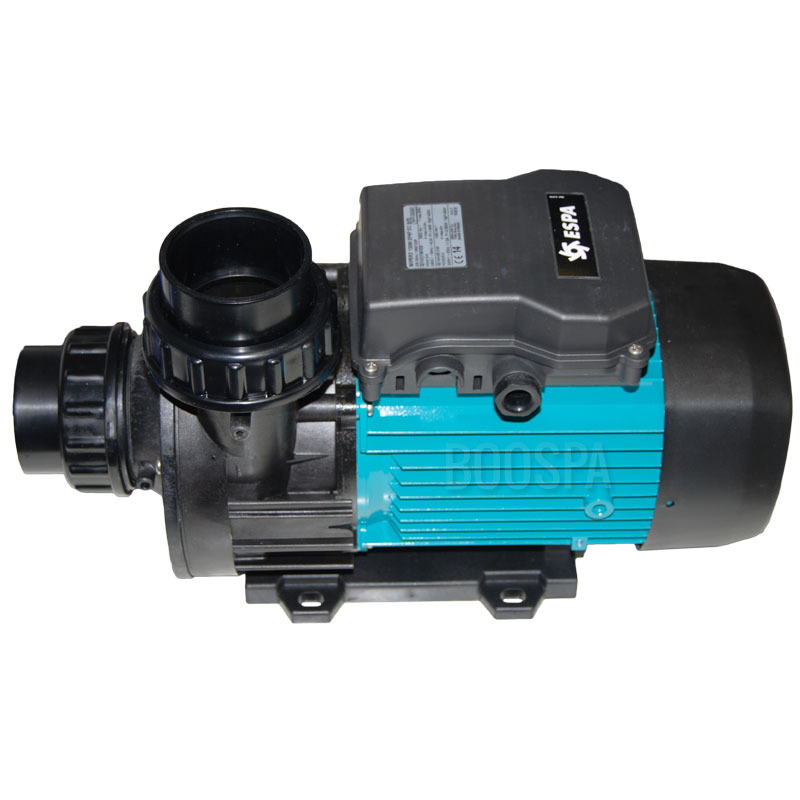

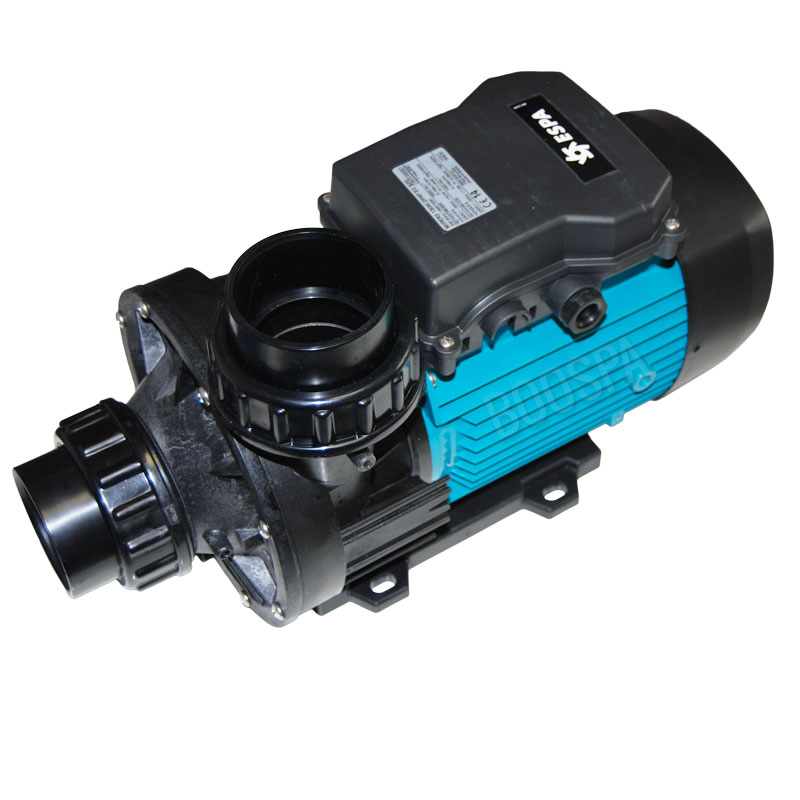

Dual-speed pump WIPER3 200M 2P4P - 2HP

Name: Dual-speed pump WIPER3 200M 2P4P - 2HP
Brand: ESPA
SKU: A-000000-05934
Price: 849 EUR
Availability: InStock
Rating: 5 (1 reviews)

Massage pump for ESPA spa Model WIPER3 2HP
Two-speed
Power 2 HP equivalent to 1.5 Kw

Final break

See replacement products

Pay in 4x free of charge with Read more
100% compatible parts
2-year warranty (1 year for professionals)

Technical characteristics

WIPER3 200M 2P4P 2HP ESPA Pump
2HP spa massage pump
Two speeds
ESPA reference: PP04417
Power 2HP equivalent to 1.5 kW
Maximum flow rate of 650 liters per minute

Pump body and removable foot in fiberglass-reinforced polypropylene
2" (60 mm) suction and discharge diameter for increased performance and reduced noise
Polypropylene impeller
Stainless steel motor shaft. AISI 420
Equipped with a capacitor (Allows pump ignition/triggering)
Compatible with saltwater (7g/l)
Material suitable for spas and pools

Model	Max Flow (Q) in l/min	Hmax (m)	Power kW	Power HP	Weight (kg)
WIPER3 150M	550	15	1.1	1.5	14.5
WIPER3 200M	650	15	1.5	2 HP	17
WIPER3 300M	1000	15	2	3 HP	19

Technical Diagrams

Pipe Connection

Supplied with outlet fittings (63 mm interior)
You can also reuse your old pipe fittings if they are still functional.
If your piping differs, access our Fittings and Unions range to find the fitting that matches your piping

The pump body is adjustable to fit your piping. You can then have a left or right discharge based on your installation. To do this, simply unscrew the 4 motor screws to turn your pump body in the desired direction. Then replace the screws in place.

Electrical Connection

The pump is supplied without a connection cable or plug. You can keep your old cable to connect this new pump. If your plug is no longer usable, you can opt for new plugs in our Cables and Plugs for Spas section

Here are the most commonly used Plugs in the Spa world:


AMP Plug	J&J Plug ( PIN position varies depending on the device)
