Spare parts (page 45)

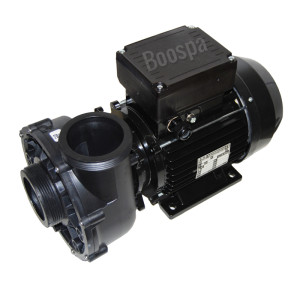

Spa Massage Pump Viper, 56 frames motor.
Dual speed, 5HP
The Viper pump is typically connected to 2.5'' (74mm) plumbing.

For Duplex systems. Compatible with Balboa control boxes from the GSxxx or GSxxxZ series.
Balboa Reference: 53636 (without sticker - white borders).

Self-priming pump with built-in pre-filter and motor
Power: 2.0 HP – 1500 watts
Maximum flow rate: 560 liters per minute – value missing
Includes 2 fittings for 2'' (56 mm) piping

The SPP250E pump is suitable for pools with a volume between 90 and 120 m 3

Manufacturer reference: 3-LED-4-pin-DIN
Connector type: 4-pin DIN male and female
Includes 3 LED lights
Parallel wiring

Compatible with 12V LED systems with 4‑pin connector
Reference: ACM0961

Length: 145 mm
Front diameter: 128 mm
Clip diameter: 39 mm
Outer diameter of water inlet: 26 mm
Jet body length: 127 mm
Socket not included

Manufacturer reference: 76845
Compatible with Tiger River and Limelight brand spas

Model: K-24 or TSC24 - Keyboard only
Compatible with LFX Californian Dupree Bay Spas
The keyboard has 1 connector, unlike the 01580-0001 which has 2

Embedment hole diameter: 38mm
Front diameter: 56mm
Water inlet: 3/4” fitting (27mm)
Air inlet: 3/8” fitting (14.5mm)
Ring and gasket included

Front Diameter: 64mm
Length: 90mm
Thread Diameter: 26mm
Outer Diameter of Water Inlet: 18mm
Socket not included

Front Diameter: 114mm
Length: 132mm
Thread Diameter: 48mm
Outer Diameter of Water Inlet: 23mm
Socket not included

Front Diameter: 130mm
Length: 130mm
Thread Diameter: 48mm
Outer Diameter of Water Inlet: 28mm
Socket not included

2 F outlets: 2.5" (74mm)
CMP reference: 285850-250
Very useful for any maintenance, breakdown, or leak repair.

Male/male sleeve for ASD AR-700 blower
allows you to connect the discharge outlet of the ASD AR-700 blower to the union fitting

Manufacturer Part Number : ARG-ps21gr1
Diameter : 80mm
Color : black and gray

Can control: only lighting
Compatible with Superior Wellness, Balboa, Joyonway and Assimilated systems

CalSpas series 5900-6000/6100 Keyboard
with sticker equipped with keys: TEMP - LIGHT - JETS - OPTION - HEAT ON - OZONE INDICATOR
CalSpas reference: ELE09200778
Replaces reference: 53850

BALBOA Reference: 11884
4-button model

Compatible with Calspas® spas

Socket not included

LVJ Reference: L-7043C
Cutout diameter : 80 mm
Pipe diameter : 2" (60 mm)

Manufacturer Reference: PL-SW201
Faceplate diameter: 108 mm
Mounting diameter: 102 mm
Pipe diameter: 2" (60 mm)

Manufacturer reference: 75158-101-0002"
Cap diameter: 106mm
Pipe diameter: 2" (60mm)

Keyboard Sticker TSC-9 - GECKO
4-button model

Front Diameter: 56mm
Length: 82mm
Thread Diameter: 28mm
Outer Diameter of Water Inlet: 16mm
Socket not included

Compatible with GECKO IN.XE control boxes and Y series
2 pump model

Manufacturer reference: 40031050
Color: White
Compatible with Aquareva and Procopi skimmers

Number of pins: 2
Pins not included

20-meter coil of 2" flexible spa hose – reinforced PVC
Inner diameter: 52.6 mm
Outer diameter: 60 mm
Wall thickness: 4 mm
